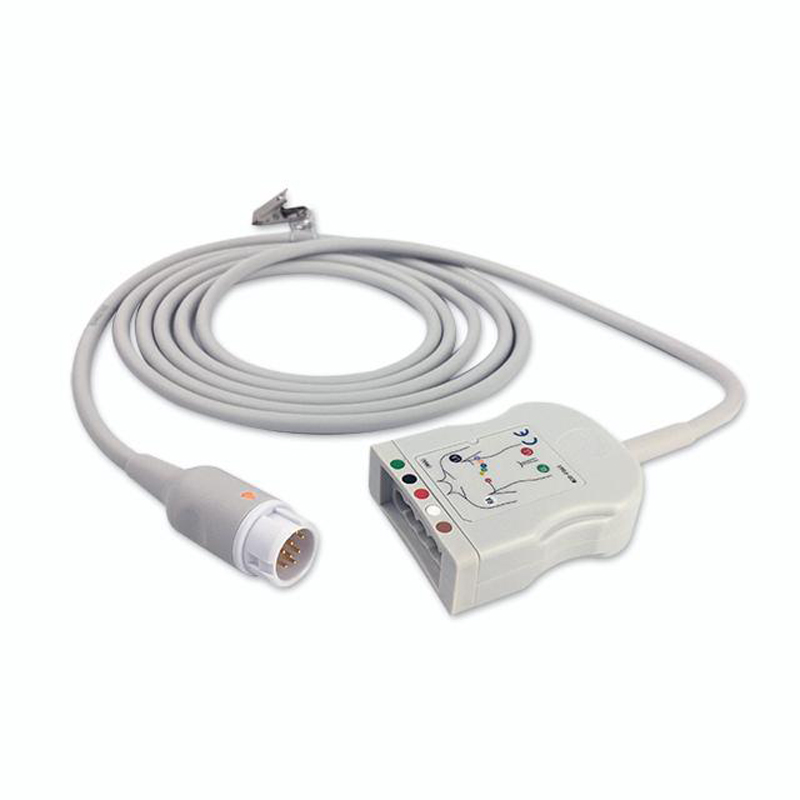

What Is the M1663A Compatible 10-Lead ECG Trunk Cable?

The IPR Medical ET-10005R-PH-A is a compatible aftermarket (not OEM) 10-lead ECG trunk cable that replaces OEM part M1663A. Intended for ECG monitoring with limb and chest lead placement, this reusable cable carries the AHA designation, is defib-proof, and measures 8.2 ft (2.5 m). The leadwires it is used with are identified in the Lead Type row of the Specifications table.

Compatible Monitor Models

This trunk cable is listed for the monitor models shown in the Compatible Monitor Models table on the Specifications tab. Some models appear more than once, with and without option codes or alternate names, because they are listed that way for this part. Confirm that your model, including any option code, is in the table before you order, or contact IPR Medical for help checking the match.

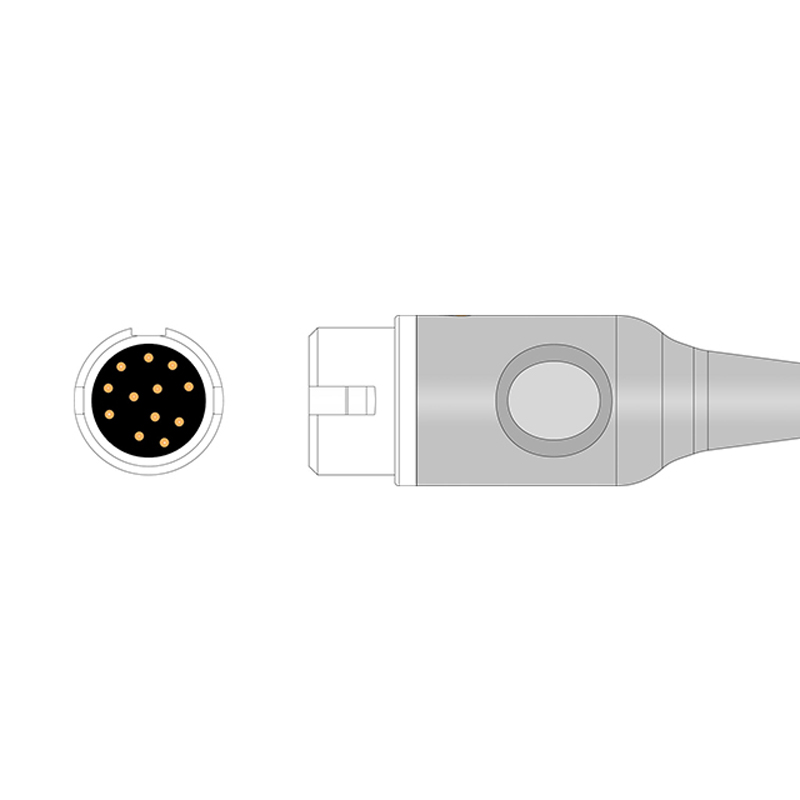

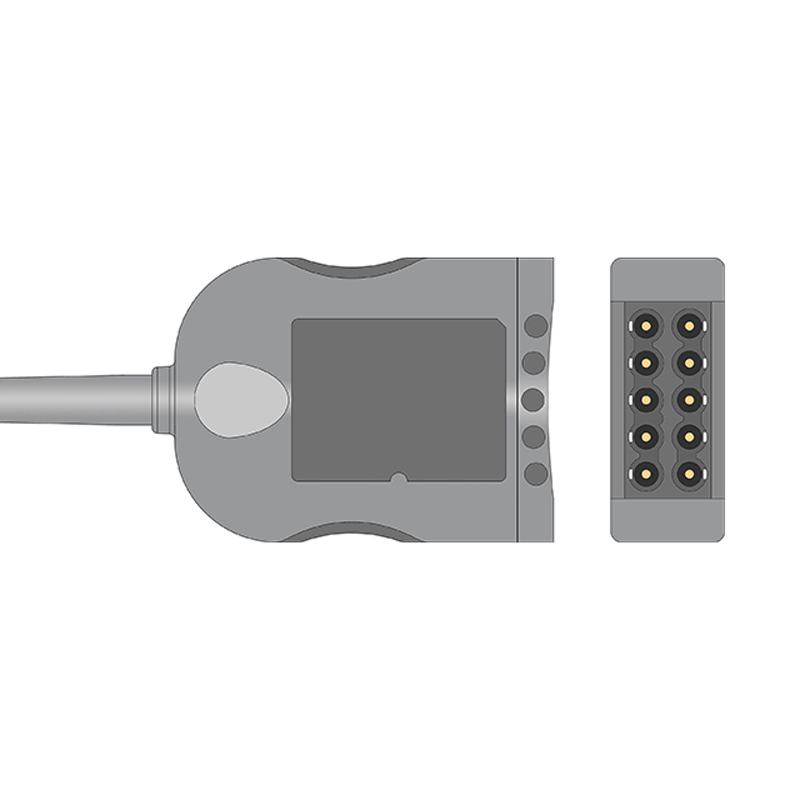

Design and Construction

A full 10-lead configuration covering limb and chest positions sets this cable apart from 3-lead and 5-lead trunk cables. It uses AHA designation, is listed as defib-proof, and has an overall length of 8.2 ft (2.5 m). The ET-10005R-PH-A is reusable and should be cleaned between patients per facility protocol; it is supplied one per bag.

When to Replace Your 10-Lead ECG Trunk Cable

With all ten leads routed through a single cable, one trunk cable fault can take many leads off the display at the same time. Typical warning signs are lead-off alarms that clear only when the cable is repositioned, traces that drop out or turn noisy across several leads together, and artifact that appears when the cable is bent. Inspect the jacket for splits or kinks and both connector ends for cracked housings, a loose fit, or bent pins. Testing with a known-good cable on the same monitor and leadwires confirms whether the trunk cable is the cause.

Cross Reference and Interchange Part Numbers

This compatible trunk cable replaces OEM part M1663A. Additional OEM and aftermarket interchange numbers are listed by brand in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source ECG Trunk Cables from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for patient monitoring equipment and infusion pumps, and every repair is completed in-house by IPR Medical technicians. IPR Medical is an ISO 9001:2015-certified independent service organization. When a 10-lead trunk cable is only part of a larger monitor problem, our team can supply the cable, repair the monitor, or do both. Call 855-477-8866 or browse more ECG cables and leadwires.

IPR Medical buys, sells, repairs, and stocks parts for 10-lead ECG trunk cables and the patient monitors that use them. Contact us at 855-477-8866 or cs@iprmed.com.
