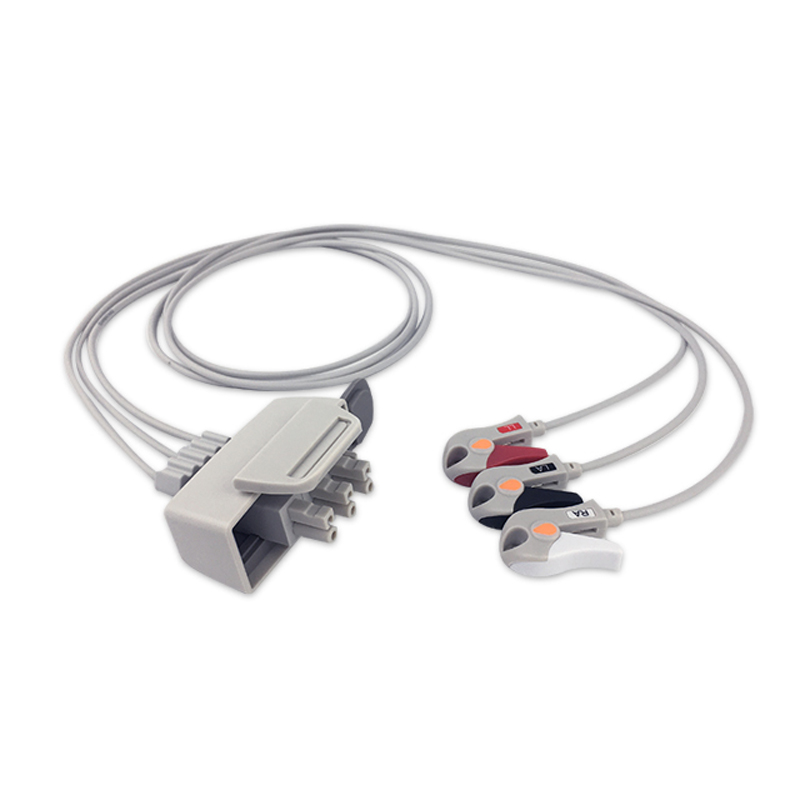

What Is the M2591A Compatible 3-Lead Telemetry ECG Leadwire?

The IPR Medical EL-TAA3-90G-A is a compatible aftermarket (not OEM) 3-lead telemetry ECG leadwire that replaces OEM part M2591A. Intended for telemetry, this reusable limb-lead leadwire pairs grabber/pinch electrode ends with AHA color coding over a 3.0 ft (0.9 m) length. Its lead type is listed in the Specifications table so you can compare it with the leadwire you are replacing.

Compatible Monitor Models

Before you order, open the Specifications tab and look for your model in the Compatible Monitor Models table. You will notice that one model is shown twice, once with its product-line name, since it is listed for this part both ways. If your model is not in the table, call IPR Medical and we will help you identify the correct leadwire.

Design and Construction

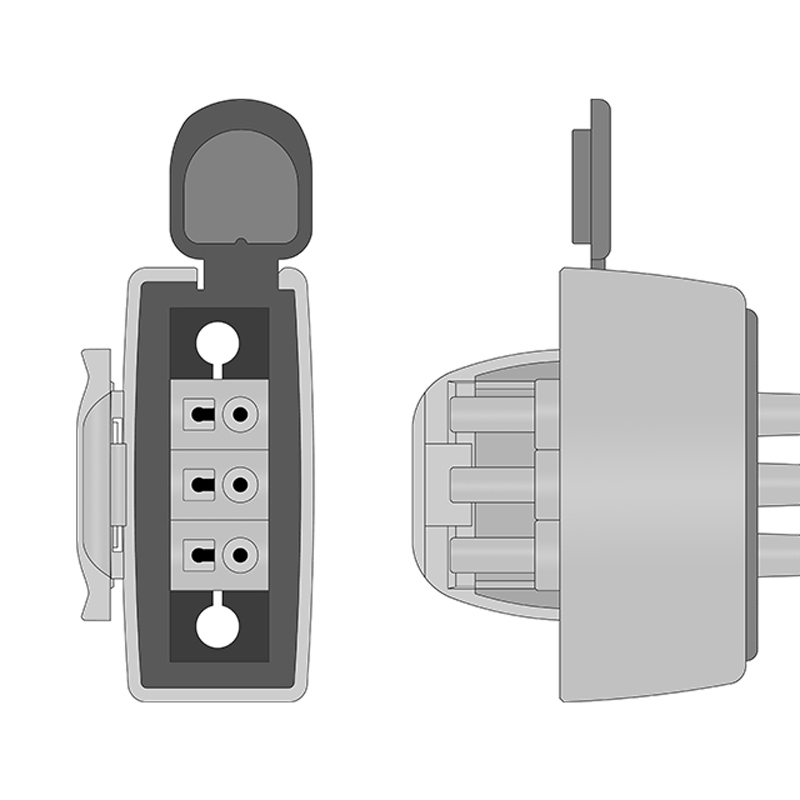

Grabber/pinch ends let each of the three limb leads clip onto an electrode, and the leads follow AHA coloring (RA white, LA black, LL red). The leadwire is shielded, terminates in a molded distal connector, and measures 3.0 ft (0.9 m) overall. It is designed to be reused after cleaning per facility protocol and is supplied one per bag.

When to Replace Your 3-Lead Telemetry ECG Leadwire

Replace the leadwire once the grabber jaws lose tension or let go of the electrode, or when you find cracked insulation, exposed wire, or a damaged molded connector. Recurring lead-off alerts, noisy tracings, and dropouts that follow cable movement often mean the internal conductors are breaking down. Making leadwire inspection part of routine equipment checks helps catch these problems before they disrupt patient monitoring.

Cross Reference and Interchange Part Numbers

OEM part M2591A is the primary reference for this compatible leadwire. For aftermarket equivalents, see the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

Because IPR Medical buys, sells, repairs, and stocks parts for patient monitoring equipment and infusion pumps, one call covers replacement accessories and equipment service alike. We are an ISO 9001:2015-certified independent service organization, and our technicians complete every repair in-house. Explore our ECG cables and leadwires, or call 855-477-8866 to speak with our team.

IPR Medical buys, sells, repairs, and stocks parts for ECG leadwires and the telemetry equipment they connect to. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Philips, or any other manufacturer or supplier named on this page. Philips, Viridia, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
