What Is the M2592A Compatible 5-Lead Telemetry ECG Leadwire?

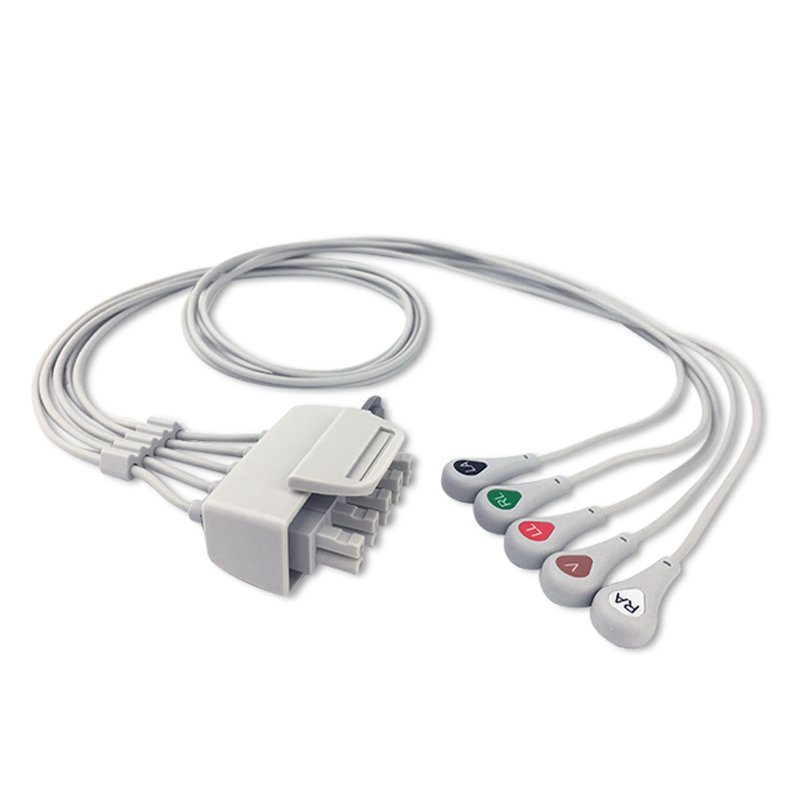

The IPR Medical EL-TAA5-90S-A is a compatible aftermarket (not OEM) 5-lead telemetry ECG leadwire that replaces OEM part M2592A. Designed for telemetry use, this reusable leadwire brings five limb and chest leads together with snap electrode ends, AHA color coding, and a 3.0 ft (0.9 m) cable length.

Compatible Monitor Models

Every telemetry model this leadwire is listed for appears by name in the Compatible Monitor Models table on the Specifications tab. Check your telemetry system against that list before ordering; our team can also confirm the match by phone.

Design and Construction

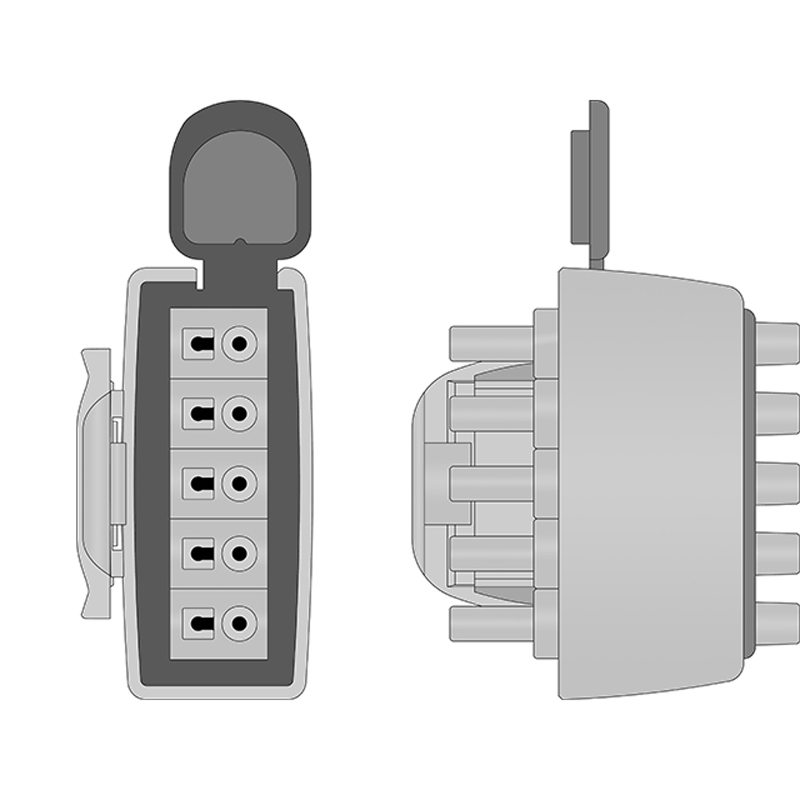

Five leads, four limb leads and one chest lead, end in snap connections and are color coded to the AHA standard (RA white, LA black, LL red, RL green, V brown). Shielding is listed as a feature, the distal connector is molded, and the overall length is 3.0 ft (0.9 m). Its lead type is shown in the Specifications table so you can match it to the leadwire you use today. It is reusable, can be cleaned between patients per facility protocol, and comes one per bag.

When to Replace Your 5-Lead Telemetry ECG Leadwire

Telemetry patients are often up and moving, so their leadwires flex constantly and deserve regular inspection. Replace this leadwire when a snap loosens on the electrode stud, when the insulation cracks or kinks, or when the connector has bent pins or a cracked housing. Frequent leads-off alarms at the central station, a noisy or drifting trace, and dropouts that occur as the patient moves also point to a worn leadwire. Trying a known-good leadwire with the same transmitter helps isolate the fault.

Cross Reference and Interchange Part Numbers

In addition to OEM part M2592A, this compatible telemetry leadwire cross-references to OEM number 989803106331. The remaining interchange numbers are listed in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source Telemetry ECG Leadwires from IPR Medical?

As an ISO 9001:2015-certified independent service organization, IPR Medical buys, sells, repairs, and stocks parts for patient monitoring equipment and infusion pumps. Our technicians handle repairs in-house, and our team can help you identify the telemetry leadwire that fits your system. Browse ECG cables and leadwires or call 855-477-8866 for orders, repairs, or parts.
