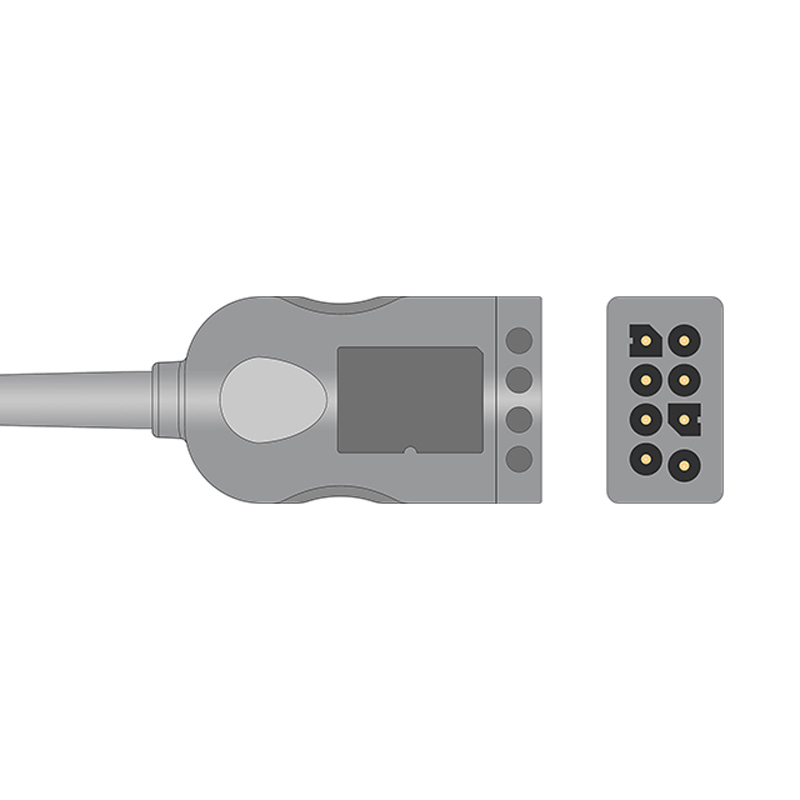

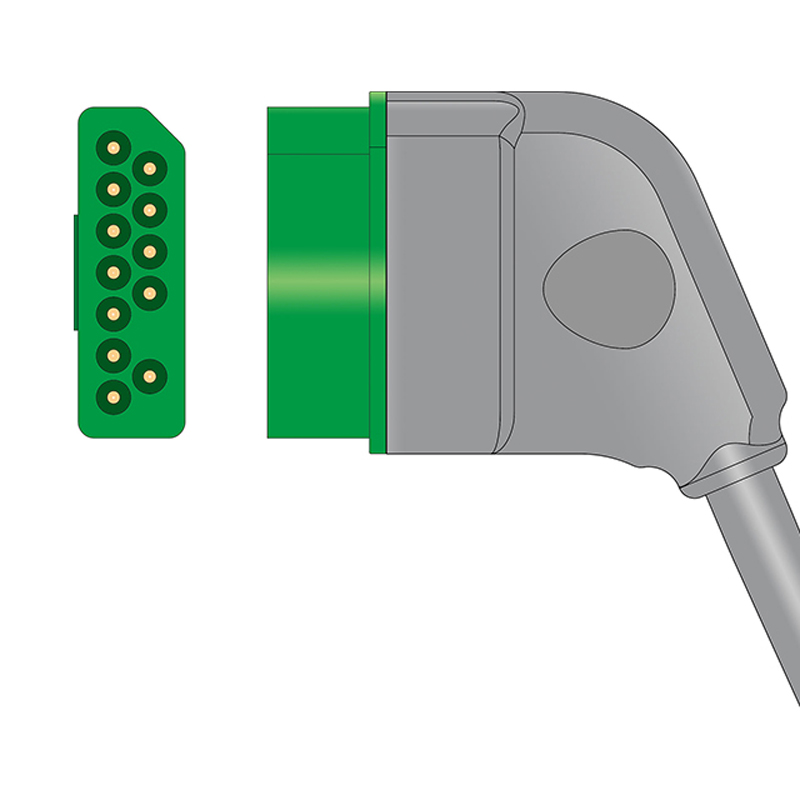

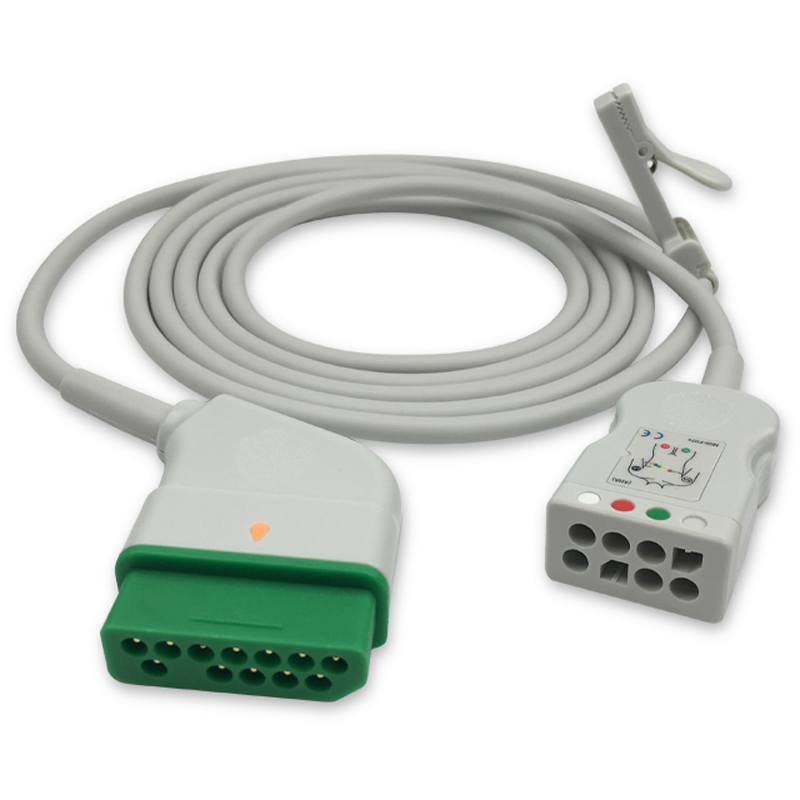

What Is the Nihon Kohden JC-906PA Compatible ECG Trunk Cable?

The IPR Medical ET-6013-NKB-A is a compatible aftermarket (not OEM) 3/6-lead ECG trunk cable that replaces the Nihon Kohden JC-906PA. It is a reusable 8.2 ft (2.5 m) trunk cable with respiratory rate capability and AHA designation, intended for ECG monitoring with limb and chest leads. It is used with Nihon Kohden BR-9XXP leadwires.

Compatible Monitor Models

This trunk cable is listed for select Nihon Kohden BSM models such as the BSM-2351A, BSM-4114A, BSM-6501A, and BSM-9101, select Life Scope models including the Life Scope J and Life Scope TR, and select PVM and TEC models such as the PVM-2701 and TEC 8321. Several BSM entries are listed alongside YJ or AY part numbers; the table presents those configurations as listed. Please match your monitor against the Compatible Monitor Models table on the Specifications tab before ordering this trunk cable.

Design and Construction

The ET-6013-NKB-A supports 3-lead and 6-lead ECG configurations covering limb and chest placement, and it carries the AHA designation. The cable is 8.2 ft (2.5 m) long, includes a respiratory rate feature, and is used with Nihon Kohden BR-9XXP leadwires. It is reusable, so it can be cleaned between patients per facility protocol, and it is packaged one per bag.

When to Replace Your ECG Trunk Cable

Replace the trunk cable if the jacket is cracked, crushed, or kinked, if the leadwire connection points are loose or damaged, or if the monitor connector has bent pins or a cracked housing. ECG traces that drop out across every lead at once, noise that changes when the trunk cable is flexed, and unreliable respiration readings are typical signs of a failing trunk cable. Testing the same leadwires with a known-good trunk cable on the same monitor helps biomedical staff narrow down the fault.

Cross Reference and Interchange Part Numbers

This compatible trunk cable replaces the Nihon Kohden JC-906PA and also cross-references to Nihon Kohden K922A. All other interchange numbers are shown in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source ECG Trunk Cables from IPR Medical?

Trunk cables are one of many monitor parts IPR Medical buys, sells, repairs, and stocks; as an ISO 9001:2015-certified independent service organization, we support both patient monitoring equipment and infusion pumps. With monitor repair and testing done in-house by our own technicians, we can help you match trunk cables and leadwires to your Nihon Kohden monitors and keep those monitors working. Our ECG cables and leadwires category has more options, and our team at 855-477-8866 can help with ordering, repairs, or parts.

IPR Medical buys, sells, repairs, and stocks parts for ECG trunk cables and the Nihon Kohden monitors they connect to. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Nihon Kohden, or any other manufacturer or supplier named on this page. Nihon Kohden, Life Scope, Vismo, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
