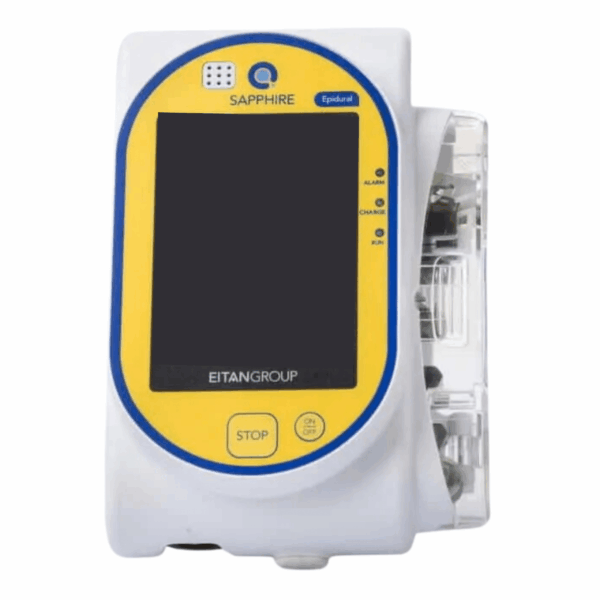

Eitan Medical/ Q Core Sapphire Epidural
The Eitan Medical Sapphire Epidural pump is a dedicated epidural infusion pump built on the proven Sapphire platform. Purpose-built for epidural applications, it features yellow-colored tubing, a yellow faceplate, and on-screen yellow labeling — the internationally recognized color coding for epidural lines — to reduce the risk of misconnection at the point of care.
The Sapphire Epidural delivers three specialized modes: PCEA (patient-controlled epidural analgesia) with optional basal rate and loading dose, Intermittent Epidural with scheduled doses and optional basal rate, and PIEB (programmed intermittent epidural bolus), which combines intermittent scheduled doses with PCEA while giving priority to the intermittent dose to ensure delivery and prevent dose stacking. Flow rates are limited to safe epidural ranges, with a continuous rate of 0–25 mL/h and bolus rates at selectable levels. At 418 g without battery and running approximately 24 hours on a single charge, it is compact enough for labor and delivery, OR, and ambulatory pain management settings.
IPR Medical is one of the few authorized Level 2 Eitan Medical service centers in the United States. We perform manufacturer-authorized repairs, preventive maintenance, and warranty service on all Sapphire pumps — keeping your fleet compliant and calibrated without shipping units back to the manufacturer.
Eitan Medical Sapphire Epidural Pump
Dedicated epidural infusion pump with yellow color-coded identification system, limited safe epidural rate ranges, and three specialized delivery modes: PCEA, Intermittent Epidural, and PIEB. Built on the Sapphire platform with patented Eitan Medical Flow Control Technology.
| Pump Type | Volumetric, single-channel, touch screen pump, Eitan Medical Flow Control |
| Infusion Modes | Continuous, PCEA, Intermittent, and PIEB |
| Continuous Flow Rate | 0 – 25 mL/h |
| Bolus Rate | 125, 200, 300, 400, or 500 mL/h (selectable) |
| Flow Rate Accuracy | ±2.5% according to IEC 60601-2-24 |
| Volume (VTBI) | 1 – 9,999 mL with increments of 0.1 mL |
| KVO Rate | Up to 20 mL/h with increments of 0.1 mL/h |
| Downstream Occlusion | Up to 17.4 PSI (1.2 Bar) |
| Prime | Manual or automatic priming (600 or 900 mL/h) |
| Disposable Set | Automatic anti-free-flow set |
| Touch Screen | 3.2″ color portrait QVGA (64K colors) |
| Battery | Rechargeable Li-Ion, 7.4V / 1960 mAh |
| Battery Operation Time | ~24 hrs @ 125 mL/h (fully charged, backlight off) |
| Power Source | AC adaptor 100–240 VAC, 50–60 Hz |
| Water & Dust Protection | IP24 splash/dust standard according to IEC 60601-1-11 |
| Dimensions (H × W × D) | 143 × 96 × 49 mm (5.63 × 3.78 × 1.93 in) |
| Weight | 418 g (14.7 oz) without battery |
| Special Features | PIEB, yellow-colored tubing and screen scheme, 20 pre-set protocols, automatic lockout, on-screen alarm troubleshooting, hard limits, protected programming, event log, custom drug library compatible |
| Brand | Eitan Medical Ltd. |
Trademark Notice: Eitan Medical, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the original manufacturer’s equipment offered here, consistent with nominative fair use. This listing is offered by IPR Medical, an ISO 9001:2015-certified independent service organization listed by Eitan Medical as a Sapphire service center.
Dedicated to epidural infusion — purpose-built for safety
The Sapphire Epidural pump is dedicated exclusively to epidural infusion. While sharing the core benefits of the Sapphire platform, it is tailored for epidural applications with yellow-colored sets, a yellow-colored faceplate, and on-screen yellow labeling — the internationally recognized color coding for epidural lines. Flow rates are limited to safe epidural ranges to prevent accidental over-delivery, and all programming is protected to ensure only authorized changes can be made.
Three specialized epidural delivery modes
The Sapphire Epidural supports three clinically distinct modes of delivery:
- PCEA (Patient-Controlled Epidural Analgesia) — patient-controlled on-demand doses with optional basal rate and loading dose.
- Intermittent Epidural — scheduled doses with an optional basal rate.
- PIEB (Programmed Intermittent Epidural Bolus) — combines intermittent scheduled doses with PCEA, giving priority to the intermittent dose to ensure delivery and prevent dose stacking.
For a complete epidural infusion system, the Sapphire Epidural is compatible with dedicated Eitan Medical epidural administration sets, bolus handles, and lockboxes.
Patented Flow Control Technology on the Sapphire platform
Like all Sapphire pumps, the Epidural model is built on Eitan Medical’s patented magnetic Flow Control Technology, delivering ±2.5% flow rate accuracy per IEC 60601-2-24. Its IP24-rated housing withstands splash and dust per IEC 60601-1-11. The 3.2″ color QVGA touchscreen, approximately 24-hour battery life at 125 mL/h, and AC compatibility from 100–240 VAC make it dependable across hospital, ambulatory, and home care settings. The pump also supports up to 20 pre-set protocols, a custom drug library, automatic lockout, on-screen alarm troubleshooting, event logging, and hard limit configuration.
Authorized Level 2 service & warranty support
IPR Medical is one of the few authorized Level 2 Eitan Medical service centers in the United States. We perform manufacturer-authorized repairs, preventive maintenance, and warranty service on all Sapphire pumps — including the Epidural model — so your facility gets faster turnaround without shipping units back to the manufacturer.
IPR Medical is listed on Eitan Medical’s Sapphire service center directory, and our technicians hold current Eitan Medical Level 2 Sapphire service certifications. View our quality certifications.
Warranty repairs, annual PM certifications, and fleet servicing for the Eitan Medical Sapphire Epidural are available directly through IPR Medical as an authorized Level 2 service center. Contact us to learn more about our manufacturer-authorized service programs.
Trademark Notice: Eitan Medical, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the original manufacturer’s equipment offered here, consistent with nominative fair use. This listing is offered by IPR Medical, an ISO 9001:2015-certified independent service organization listed by Eitan Medical as a Sapphire service center.
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Condition: | Recertified (Refurbished) |
