What Is the M1977A Compatible 5-Lead One-Piece ECG Cable?

The IPR Medical EC-5005RS-A is a compatible aftermarket (not OEM) 5-lead one-piece ECG cable that replaces OEM part M1977A. It connects to the patient through five snap electrode ends arranged for limb and chest lead placement, and since the leads are integral to the cable, no separate leadwire set is needed. Monitoring is its intended use, and it is both reusable and defib-proof, with AHA lead designation.

Compatible Monitor Models

The Compatible Monitor Models table on the Specifications tab carries the full list for OEM part M1977A, the great majority of it original-equipment models. The list also takes in select Welch Allyn models (the 242 and the Propaq Encore 206EL) and select Solaris models (NT3C, NT3E, and NT3F), plus select Newtech, Nihon Kohden, and Konsung models such as the NT3A, NT3B, and Aurora 12s. Matching your model number against the table is the surest way to order correctly.

Design and Construction

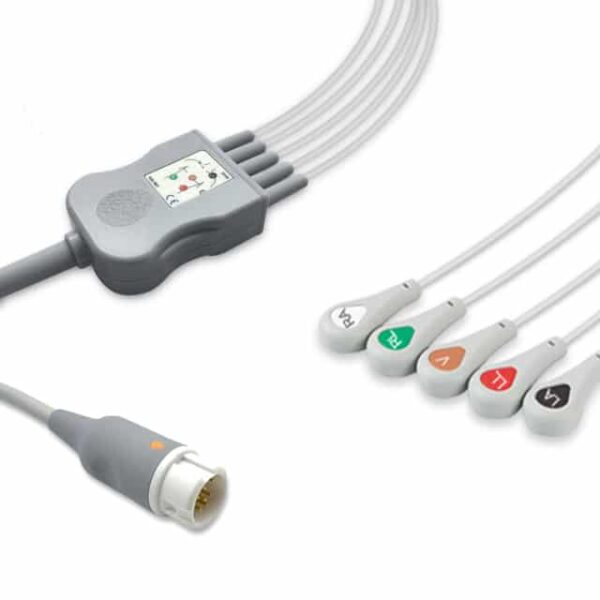

On the EC-5005RS-A, each of the five leads ends in a snap connector, and AHA color coding identifies them: white for RA, black for LA, red for LL, green for RL, and brown for the V lead. Its length is listed as 8.2 ft + 3.0 ft (2.5 m + 0.9 m). The cable is defib-proof and reusable; follow facility protocol when cleaning it between patients. It is supplied one per bag.

When to Replace Your 5-Lead One-Piece ECG Cable

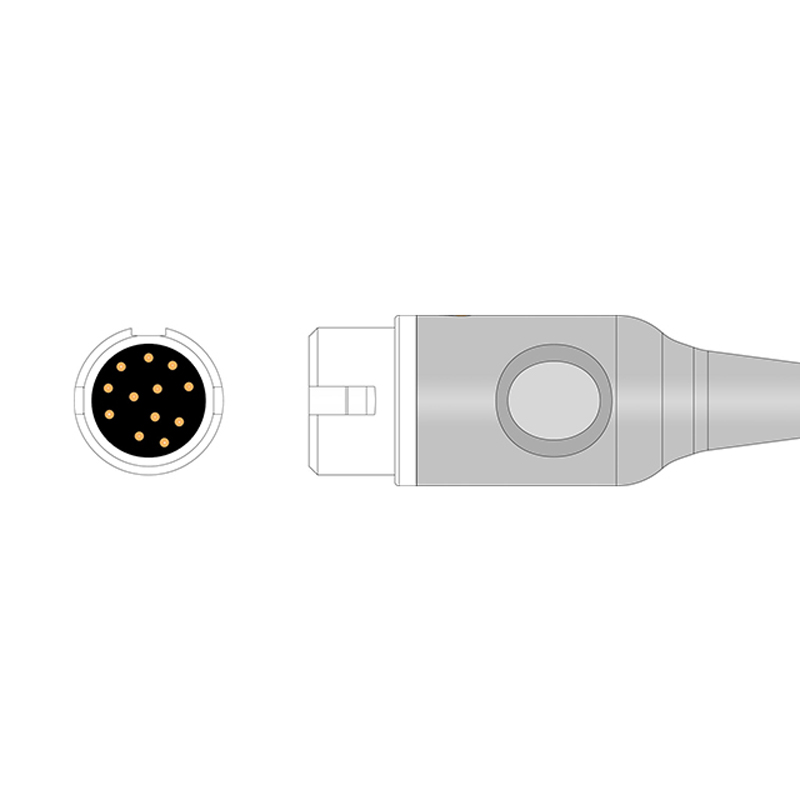

Replace the cable when a snap no longer holds on the electrode stud, when any lead or the main cable has a split, cracked, or kinked jacket, or when the monitor-end connector has bent pins or a damaged housing. Persistent lead-off messages, a noisy V lead, or a trace that flattens when the patient turns are other signs of a failing cable. A quick swap with a known-good cable helps biomedical staff isolate the problem.

Cross Reference and Interchange Part Numbers

M1977A is the OEM part this cable replaces, and OEM numbers M1986A and 989803160791 lead to the same cable. Aftermarket matches for this 5-lead snap cable are filed brand by brand in the Specifications tab, under Cross Reference / Interchange Part Numbers.

Why Source One-Piece ECG Cables from IPR Medical?

Five-lead snap cables are one of many accessories IPR Medical sells; the company buys, sells, repairs, and stocks parts for patient monitors and infusion pumps. In-house technicians handle IPR Medical’s repairs, and the company is certified to ISO 9001:2015 as an independent service organization. Reach us at 855-477-8866, or open our ECG cables and leadwires category for other options.
