What Is the Spacelabs 700-0006-35 Compatible 3-Lead ECG Leadwire?

The IPR Medical EL-SLD3-90G-A is a compatible aftermarket (not OEM) 3-lead ECG leadwire that replaces the Spacelabs 700-0006-35. It combines grabber/pinch electrode ends with a molded distal connector and a Spacelabs Molded Din-Style lead type. This reusable leadwire is intended for limb lead ECG monitoring and is 3.0 ft (0.9 m) long.

Compatible Monitor Models

The EL-SLD3-90G-A appears on the compatibility list for select Spacelabs models, for example the 8100, 90309, and 91496. Elance Series and Ultraview SL entries are included as well, and some model numbers are shown both with and without a family name. Use the compatibility table on the Specifications tab to confirm that your monitor’s exact designation is listed.

Design and Construction

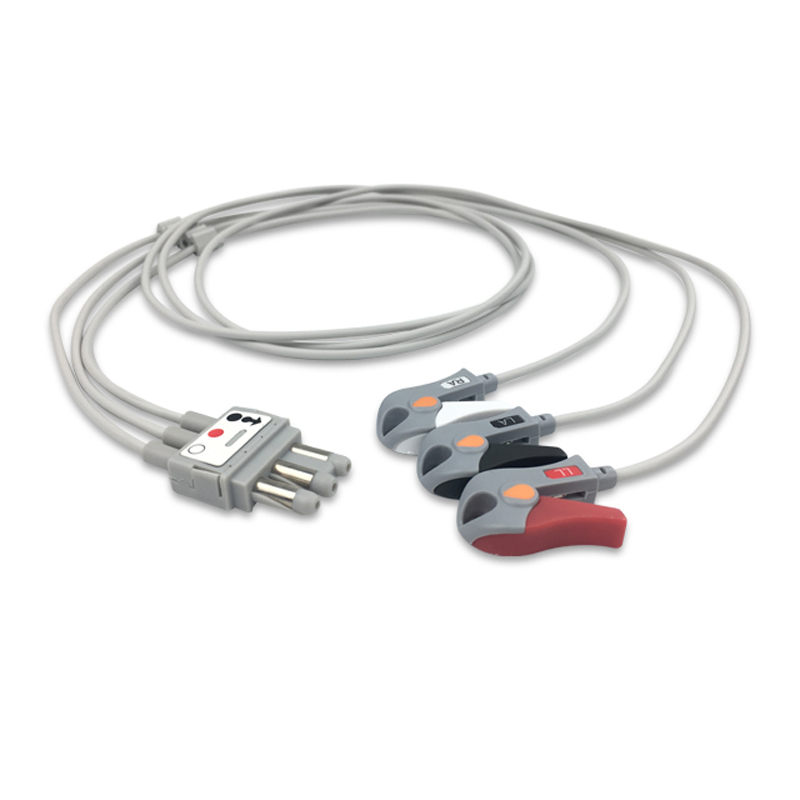

Three limb leads, each with a grabber/pinch end, come together at a molded distal connector. AHA coloring identifies RA (white), LA (black), and LL (red). The lead type is listed as Spacelabs Molded Din-Style, and the leadwire is shielded. Its length is 3.0 ft (0.9 m); being reusable, it can be cleaned between patients as your facility protocol directs, and each one is packed in its own bag.

When to Replace Your 3-Lead ECG Leadwire

Signs that this leadwire is near the end of its life include grabbers that open weakly or let the electrode slip, cracks where the leads enter the molded connector, and insulation that feels tacky or stiff. Recurring lead-off alarms and a baseline that jumps when the patient moves suggest an internal conductor break. A short trial with a spare leadwire on the same monitor will separate a leadwire fault from a monitor fault.

Cross Reference and Interchange Part Numbers

This leadwire replaces Spacelabs 700-0006-35 and also cross-references to Spacelabs 700-0010-00. Both OEM numbers are listed in the cross-reference table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

Our trade is parts for patient monitors and infusion pumps, which IPR Medical buys, sells, repairs, and stocks. We are an ISO 9001:2015-certified independent service organization, and every monitor repair we take on is performed in-house by our technicians. The rest of our ECG cables and leadwires are listed online, and our team answers questions at 855-477-8866.

IPR Medical buys, sells, repairs, and stocks parts for molded ECG leadwires and the Spacelabs monitors they serve. Contact us at 855-477-8866 or cs@iprmed.com.
