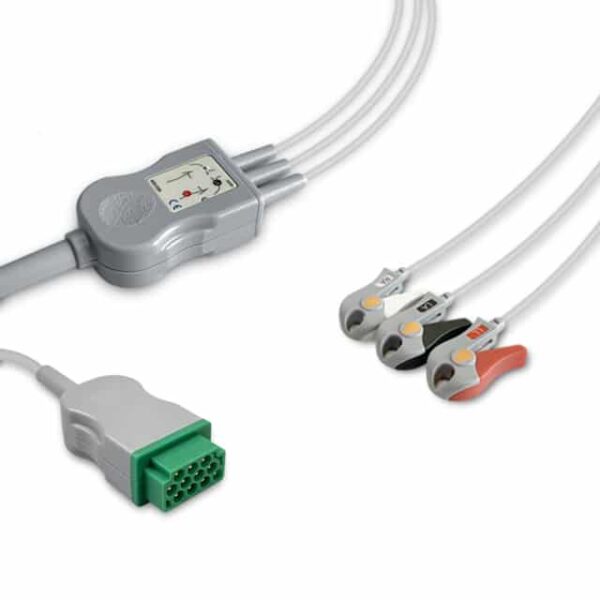

What Is the GE 2021141-001 Compatible 3-Lead One-Piece ECG Cable?

The GE Healthcare Marquette 2021141-001 compatible ECG cable is a reusable, aftermarket 3-lead one-piece patient cable with grabber/pinch electrode connectors for GE Marquette, CARESCAPE, and Datex-Ohmeda patient monitors. The trunk and limb leadwires are permanently joined in a single assembly, and the cable supports impedance respiration monitoring. It uses AHA color coding. It is a compatible replacement, not an original GE part, and it is built to OEM fit, form, and function.

Compatible Monitor Models

This compatible cable is confirmed for use with Marquette Dash 1000, 2000, 2500, 3000, 4000, and 5000 monitors, Dash PRO 2000, 3000, and 4000, Eagle monitors and Eagle systems, Solar 3000, 8000, and 9500 systems, Tram 100 through 800 and Tram 451 modules, the PDM module, MAC-Lab, and Responder 2000 and 3000 defibrillator/monitors. It also fits GE CARESCAPE B450, B650, and B850 monitors, the Procare B40, the Aestiva/5 and Aisys CS2 anesthesia systems, and GE Logiq 5 and 7 and Vivid 3, 7, e9, e95, i, q, S6, and T8 ultrasound systems with ECG input. Datex-Ohmeda E-PRESTN and M-PRESTN modules, F-FM-00 S/5 frames, Unity network systems, and the Draeger Narkomed 6400 are also supported.

Design and Construction

The cable combines an 8.2 ft (2.5 m) trunk with 3.0 ft (0.9 m) limb leadwires for a total reach of about 11.2 ft (3.4 m). The grabber/pinch connectors clip onto tab and snap electrodes, so one cable can be used with a range of electrode styles. The one-piece design has no yoke-to-leadwire connection to loosen or lose, which makes it a durable choice for routine bedside, transport, and procedural 3-lead monitoring. The cable is reusable after cleaning according to facility protocol and ships one per bag.

When to Replace Your GE 3-Lead ECG Cable

Replace the cable when the monitor shows “leads off” or a noisy, intermittent ECG with fresh electrodes, when respiration readings drop out, when artifact appears as the leadwires are flexed, or when you find a cracked jacket, a broken or weak grabber spring, or bent or corroded pins at the monitor connector. Because the leadwires are permanently attached, damage to any single lead means replacing the whole cable.

Cross Reference and Interchange Part Numbers

This compatible 3-lead grabber one-piece ECG cable, IPR Medical SKU EC-3004G-A, cross-references to GE Healthcare / Marquette part numbers 2021141-001 and 5831398. It also interchanges with AMC CB-723006R-P, Merit Medical 423006-P, Sage Services Group A02-03P, and Unimed 2386P. The GE 2001292-001 is the snap-electrode version of this cable and is a separate part. For 10-lead diagnostic monitoring, IPR Medical also stocks the compatible GE one-piece 10-lead ECG cable, SKU EC-10004G-A.

Why Source ECG Cables from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. We carry compatible one-piece ECG cables, Multi-Link trunk cables, and leadwire sets alongside SpO2, NIBP, IBP, and temperature accessories, so biomedical teams can supply their GE fleet from one source at lower cost than OEM. Our team can help identify the right lead count and electrode connector for each unit and support your GE equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE Dash, Solar, CARESCAPE, and Tram patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.
