What Is the GE 2106306-001 Compatible 3-Lead ECG Trunk Cable?

The GE Healthcare Marquette 2106306-001 compatible ECG trunk cable is a reusable, aftermarket 3-lead patient cable that connects 3-lead leadwire sets with standard safety DIN (touch-proof) connectors to GE Marquette, CARESCAPE, and Datex-Ohmeda patient monitors. It supports impedance respiration monitoring and uses AHA color coding. It is a compatible replacement, not an original GE part, and it is built to OEM fit, form, and function.

Compatible Monitor Models

This compatible trunk cable is confirmed for use with Marquette Dash 1000, 2000, 2500, 3000, 4000, and 5000 and Dash PRO 2000, 3000, and 4000 monitors, Eagle monitors and systems, Solar 3000, 8000, and 9500 systems, Tram 100 through 800 and Tram 451 modules, the PDM module, MAC-Lab, Responder 2000 and 3000 defibrillator/monitors, and Unity network systems. It also fits GE CARESCAPE B450, B650, and B850 monitors, the Procare B40, the Aestiva/5 and Aisys CS2 anesthesia systems, and GE Logiq 5 and 7 and Vivid 7, E80, E9, E90, E95, i, q, S6, T8, and T9 ultrasound systems with ECG input. Datex-Ohmeda E-PRESTN and M-PRESTN modules, Unity, and the Draeger Narkomed 6400 are also supported.

Design and Construction

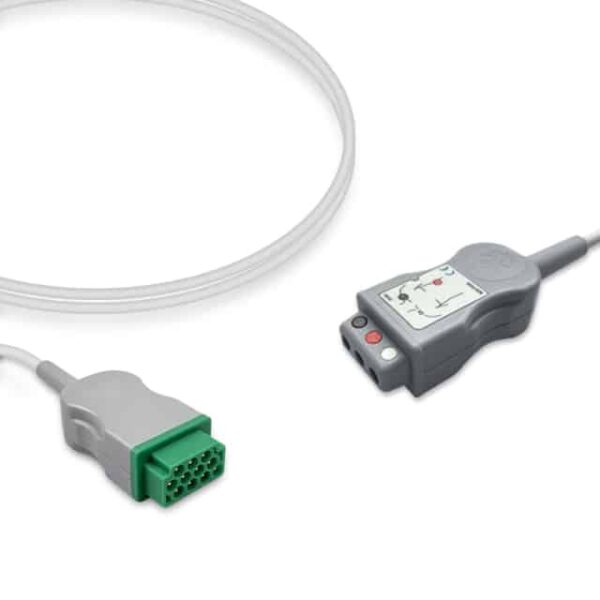

The 8.2 ft (2.5 m) trunk runs from the monitor to a yoke with three safety DIN (touch-proof) receptacles, so it accepts standard 3-lead DIN-style leadwire sets in snap or grabber styles. Because the trunk and leadwires are separate, worn leadwires can be replaced without replacing the trunk. The cable supports monitoring use with impedance respiration and follows the AHA color standard. It is reusable after cleaning according to facility protocol and ships one per bag.

When to Replace Your GE 3-Lead ECG Trunk Cable

Replace the trunk cable when the monitor shows “leads off” or noisy, intermittent ECG with known-good leadwires and electrodes, when respiration readings drop out, when artifact appears as the cable is flexed, or when you find a cracked jacket, loose or worn DIN receptacles, or bent or corroded pins at the monitor connector. Swapping in a known-good trunk and leadwire set quickly identifies which component is at fault.

Cross Reference and Interchange Part Numbers

This compatible 3-lead safety DIN ECG trunk cable, IPR Medical SKU ET-3004-D-A, cross-references to GE Healthcare / Marquette part numbers 2106306-001, 2106306-002, 2017004-001, 2017004-002, and 412944-001. It also interchanges with AMC CB-713006R, Curbell CBT-03NA-10CS-0001, RPI KCA019, Sage Services Group T02-0386-30M, and Unimed D-1386. The OEM cables come in different lengths, about 12 ft for 2106306-001 and 2017004-001 and 4 ft for 2106306-002, so confirm the 8.2 ft (2.5 m) length suits your setup. For GE Multi-Link leadwires, see the compatible GE 2017003-001 3/5-lead Multi-Link trunk, IPR Medical SKU ET-5004-MQ-A. For a one-piece cable with attached leads, see the compatible GE 2021141-001 3-lead grabber cable, SKU EC-3004G-A.

Why Source ECG Cables from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. We carry compatible GE trunk cables, leadwire sets, and one-piece ECG cables alongside SpO2, NIBP, IBP, and temperature accessories, so biomedical teams can supply their GE fleet from one source at lower cost than OEM. Our team can help identify the right cable and leadwire style for each monitor and support your GE equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE Dash, Solar, CARESCAPE, and Tram patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.
