What Is the Compatible Masimo 2317 LNCS Adtx-3 SpO2 Sensor?

The Masimo 2317 (LNCS Adtx-3) compatible SpO2 sensor (IPR SKU SSD-005RB-W09A) is a single-patient-use adhesive finger sensor for adult patients on Masimo SET-equipped monitors. It is a compatible aftermarket replacement, not an OEM Masimo product, built to match the fit, form, and function of the original. The sensor has a non-woven adhesive wrap and a 3.0 ft (0.9 m) cable that ends in a Masimo LNCS connector. It plugs directly into LNCS-equipped Masimo devices, or into an LNCS patient cable on other brands’ monitors that use Masimo SET technology. Adhesive sensors stay in place during patient movement and transport, and single-patient use removes the need to reprocess reusable sensors between patients.

Compatible Monitor Models

Because LNCS is the most widely licensed Masimo sensor interface, this compatible sensor works across a very broad installed base. Compatibility includes Masimo Radical-7, Rad-5, Rad-8, Rad-57, Rad-87, and Pronto-7; Mindray and Datascope Passport, Spectrum, Accutorr, BeneView, BeneVision, ePM, iMEC, VS, and PM series monitors; GE Healthcare Dash, Solar, Eagle, Tram, and CARESCAPE B650, B850, and V100 monitors, plus Dinamap ProCare and Corometrics fetal monitors; Philips IntelliVue MP-series and M3001A MMS configurations, SureSigns VS2 and VS3, and Heartstream XL; Physio-Control Lifepak 11, 12, 15, 20, and 20e; Zoll E, M, R, and X Series; Draeger Infinity Delta, Kappa, M540, and Narkomed 6400; Welch Allyn Propaq, Spot Vital Signs, and Connex-era 64, 65, 67, and 68 series; and Datex-Ohmeda S/5 and Giraffe Infant Warmer. The Specifications tab lists every compatible model. Confirm that your device is configured for Masimo SET oximetry, and whether it requires an LNCS patient cable, before ordering.

Design and Construction

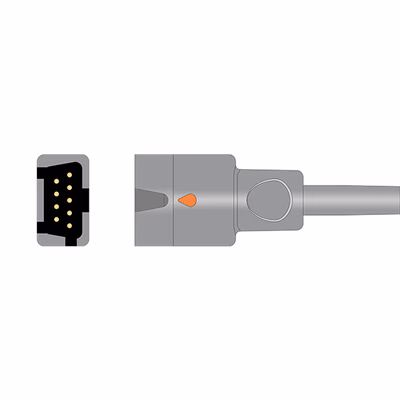

The non-woven adhesive wrap conforms to the fingertip and holds the emitter and detector in alignment through patient movement, which makes it well suited for continuous monitoring in the ICU, OR, ED, and during transport. The sensor is sized for adult patients weighing more than 66 lbs (30 kg). The 3.0 ft (0.9 m) cable terminates in a triple-keyed male 9-pin LNCS connector. Each sensor is single-patient use, latex-free, and non-sterile, and sensors are packaged 20 per box.

When to Replace Your 2317 LNCS Adtx-3 SpO2 Sensor

Adhesive sensors are designed for a single patient and should be discarded when that patient is discharged or the sensor is removed. Replace the sensor sooner if the adhesive no longer holds securely, the sensor becomes soiled or wet, the emitter or detector shifts off the nail bed, or the site needs to be rotated per your facility’s skin-integrity protocol. Persistent “sensor off” or low-signal alarms on a well-perfused patient are also a cue to apply a fresh sensor at a new site. Keeping adequate box stock on each unit prevents staff from reusing sensors past their intended life.

Cross Reference and Interchange Part Numbers

This compatible sensor cross-references to Masimo 2317 (LNCS Adtx-3) and 1859 (LNCS Adtx), and to the OEM-labeled equivalents sold under other monitor brands, including Datascope 0600-00-0121 and 520A-30-64101, Draeger MP00790, GE Healthcare 2027253-001 and 2066333-001, Philips 989803148231, Physio-Control 11171-000019, Spacelabs 690-0251-00, and Zoll 8000-0320. The Masimo 1859, Physio-Control 11171-000019, Spacelabs 690-0251-00, and Zoll 8000-0320 references are the 18-inch-cable version of the same adult adhesive sensor. This listing is the 3.0 ft (0.9 m) version.

Why Source Masimo-Compatible SpO2 Sensors from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for infusion pumps and patient monitoring equipment. Compatible disposable SpO2 sensors are one of the highest-volume consumables on any unit, and sourcing them as compatible replacements gives materials managers meaningful savings over OEM pricing without changing workflows. Our team can confirm fit against your monitor model and patient cable before you order, and we also offer in-house repair services, replacement parts, and refurbished equipment, so you can source consumables and service from a single partner.

IPR Medical buys, sells, repairs, and stocks parts for the Masimo 2317 LNCS Adtx-3 SpO2 Sensor. Contact us at 855-477-8866 or cs@iprmed.com.
