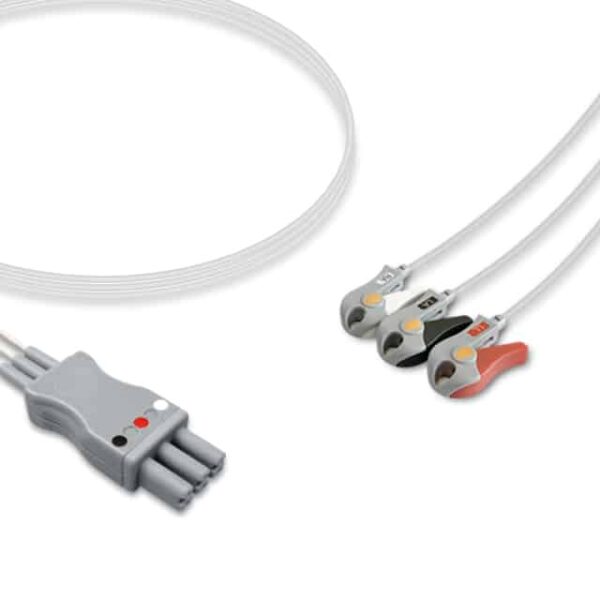

What Is the Compatible Mindray 0010-30-42898 3-Lead ECG Leadwire Set?

The Mindray 0010-30-42898 compatible 3-lead ECG leadwire set (IPR SKU EL-MR3-90G-A) is a reusable, shielded limb-lead set with grabber/pinch electrode ends and AHA color coding. It is a compatible aftermarket replacement, not an OEM Mindray product. It matches the 3-lead configuration, AHA labeling, and molded connector of the original. The three 3 ft (0.9 m) leads join at a molded yoke that plugs into a 3-lead ECG trunk cable, so worn leadwires can be replaced without replacing the trunk cable.

Compatible Monitor Models

This leadwire set is designed for Mindray and Datascope monitors, including the PM-7000, PM-8000, and PM-9000, the DPM and iMEC series, the cPM 8 and cPM 12, and the BeneVision N1, used with a compatible 3-lead trunk cable. Its molded connector follows the widely used AAMI-style 3-lead format. That means it also works with trunk cables on many other monitors and defibrillators, including Spacelabs, Nihon Kohden, Welch Allyn Propaq and Atlas, Zoll M Series and E Series, Physio-Control Lifepak, Criticare, Invivo, Edan, and Goldway equipment. The Specifications tab lists every compatible manufacturer and model. Confirm that your trunk cable accepts a 3-lead AAMI-style yoke before ordering.

Design and Construction

Each lead is shielded to reduce electrical interference and help produce a clean ECG trace in busy clinical environments. The grabber/pinch ends clip onto tab electrodes and most snap electrodes, which makes them a flexible choice when electrode stock varies between units. The leads follow AHA color coding (RA white, LA black, LL red) so clinicians can place electrodes quickly and correctly. The molded yoke connector seals the lead junction against fluid and wear. The set is reusable and supplied one per bag.

When to Replace Your ECG Leadwire Set

Leadwires take the most handling of any part of the ECG system, so they usually wear out before the trunk cable. Replace the set when a grabber no longer closes firmly on the electrode, a lead jacket is cracked, cut, or stiff, the molded yoke is loose or damaged, or the color coding has worn off so leads can’t be identified. Noisy or wandering baselines, intermittent “lead off” alarms, and artifacts that appear when the leads are moved often mean a broken conductor or failed shield inside one of the wires.

Cross Reference and Interchange Part Numbers

This compatible leadwire set cross-references to Mindray 0010-30-42898 and Mindray 0010-30-43248. Draeger 2606497 is another equivalent reference number, and the aftermarket interchange number is Unimed MRB3-90P. The OEM 0010-30-42898 is a pediatric set with 2 ft (0.6 m) leads; this compatible version uses longer 3 ft (0.9 m) leads. Use these numbers to match the set against your inventory records, purchase history, or equipment service documentation.

Why Source ECG Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for infusion pumps and patient monitoring equipment. Compatible ECG leadwire sets are a cost-effective way for hospitals, surgery centers, and materials managers to keep Mindray, Datascope, and other monitors in service without paying OEM pricing. Our team can confirm fit against your monitor and trunk cable before you order. We also offer in-house repair services, replacement parts, and refurbished patient monitoring equipment.

IPR Medical buys, sells, repairs, and stocks parts for the Mindray 0010-30-42898 3-Lead ECG Leadwire Set. Contact us at 855-477-8866 or cs@iprmed.com.
