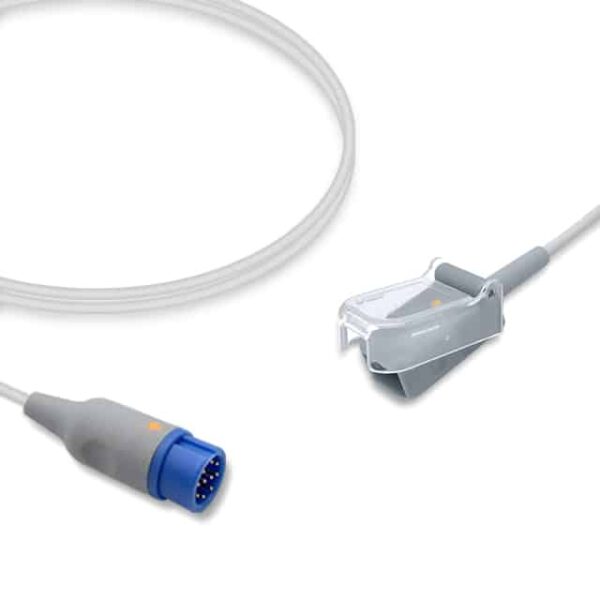

What Is the Mindray 0010-20-42710 Compatible SpO2 Adapter Cable?

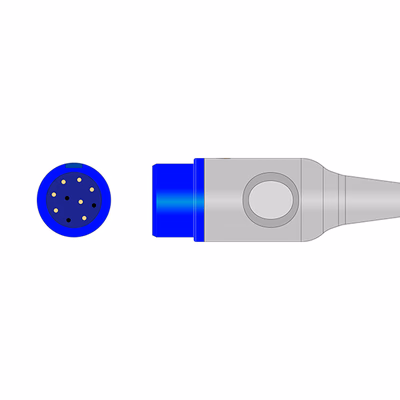

The Mindray 0010-20-42710 compatible SpO2 adapter cable (SKU SA-053-24) is a reusable, aftermarket replacement (not OEM). It is the extension cable that connects a Nellcor OxiSmart-compatible SpO2 sensor to the monitor's SpO2 input. The monitor end uses a 7-pin connector, and the sensor end accepts the sensor plug. The cable is 7.9 ft (2.4 m) long.

Compatible Monitor Models

This cable is compatible with Mindray BeneView T1, T5, and T8, BeneHeart D3 and D6, BeneVision N1, N12, N15, N17, N19, and N22, ePM 10, 12, and 15, and VS-600 and VS-900 monitors, select iMEC models, the iPM 9800, and the Passport 8 and 12. It also fits Datascope Accutorr 3 and Accutorr 7, DPM6, DPM7, MEC 12, MPM, PM 6800, T8, and VS 900 monitors. Several other Mindray models, including the BeneView T6 and T9, BeneHeart D2, and select iPM, uMEC, and Ubeconn models, are compatible only when equipped with the Nellcor SpO2 option. Select Edan, Criticare, and Guthan monitors are compatible as well. The complete model list, including which models require the Nellcor option, is in the Specifications tab.

Design and Construction

The adapter cable is designed for Nellcor OxiSmart sensor technology, so it should be paired with OxiSmart-compatible sensors. At 7.9 ft (2.4 m), the cable gives staff room to position the monitor away from the bedside while the sensor stays on the patient. It is reusable and ships one per bag.

When to Replace Your SpO2 Adapter Cable

Replace the adapter cable when the monitor shows sensor-off or no-sensor messages with a known-good sensor attached, or when SpO2 and pulse readings drop out or turn erratic as the cable is moved. Cracked or kinked jackets, bent or recessed pins at the monitor connector, and a loose or worn connector at the sensor end are also signs the cable should be retired. Testing with a known-good adapter cable is a quick way for biomedical staff to separate a cable fault from a sensor or monitor SpO2 board fault.

Cross Reference and Interchange Part Numbers

This cable interchanges with Mindray 0010-20-42710, 0010-30-43112, 0515-30-11221, 009-004600-00, and 562A, Edan 01.57.471068, 01.57.471068-11, 01.57.471068014, and 01.57.471789, and Unimed U708-48. Mindray 040-001443-00 is a 1.2 m length variant. Contact IPR Medical with your monitor model or existing cable part number and we will confirm the match.

Why Source Mindray-Compatible SpO2 Cables from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for Mindray and Datascope patient monitors, so our team can help match SpO2 sensors and adapter cables to the monitors in your fleet. Our in-house technicians repair and refurbish monitoring equipment, and we keep compatible SpO2 cables and other monitoring accessories in stock to keep units in service. Browse more SpO2 sensors and adapter cables or contact us for help confirming the right part.
