What Is the 989803152051 Compatible 5-Lead Telemetry ECG Leadwire?

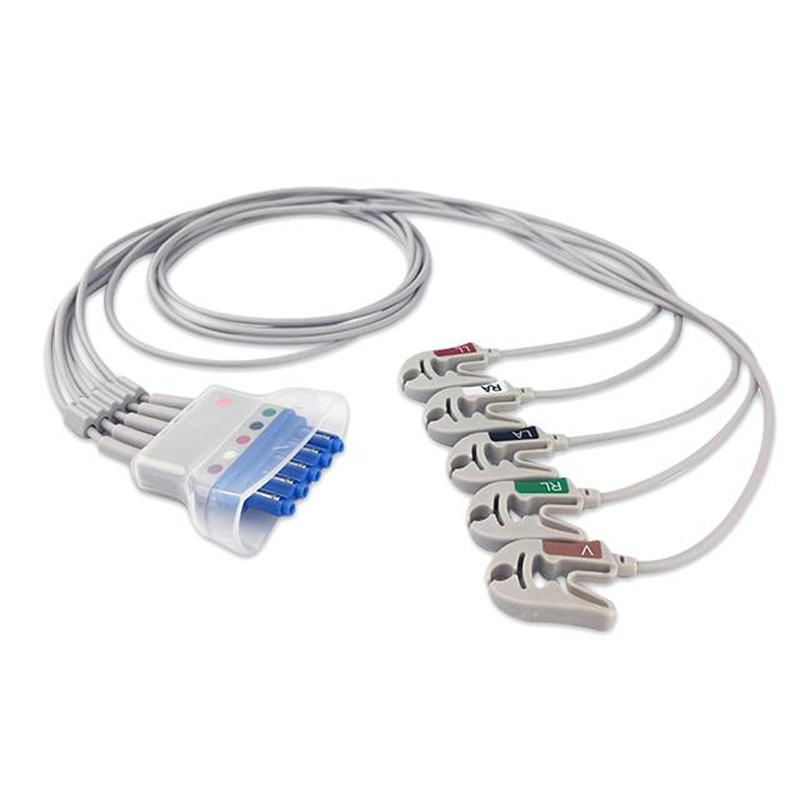

The IPR Medical EL-TPH5-90G-A is a compatible aftermarket (not OEM) 5-lead telemetry ECG leadwire that replaces OEM part 989803152051. Intended for telemetry use, this reusable leadwire combines limb and chest leads with grabber/pinch electrode ends and AHA color coding in a 3.0 ft (0.9 m) length. Its lead type is shown in the Specifications table for easy comparison with the leadwire you are replacing.

Compatible Monitor Models

Rather than repeat the list here, we keep the full set of telemetry models for this leadwire in the Compatible Monitor Models table on the Specifications tab. A few models appear under more than one name, exactly as they are listed for this part. Match your equipment model against that table, and reach out to IPR Medical if you would like a second check before ordering.

Design and Construction

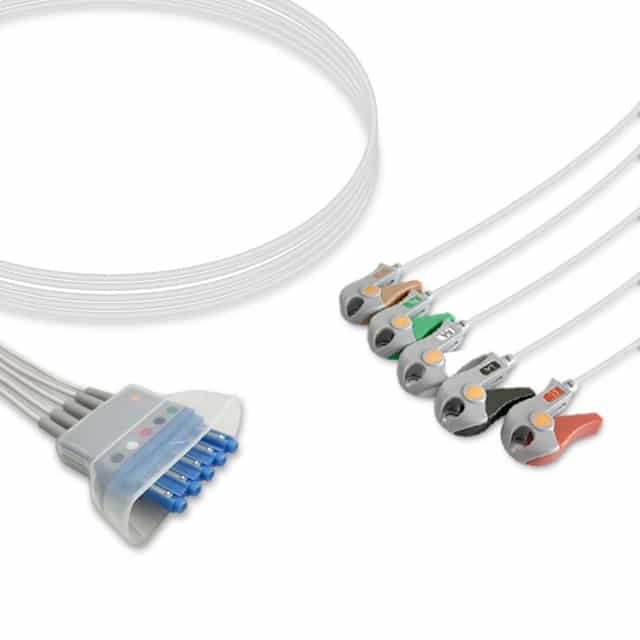

Each of the five leads terminates in a grabber/pinch end that clamps onto the electrode, and the set is color coded to the AHA standard: RA white, LA black, LL red, RL green, and V brown. Lead placement covers both limb and chest positions. The leadwire is shielded and uses a molded distal connector, with an overall length of 3.0 ft (0.9 m). It is reusable when cleaned and inspected per facility protocol, and it is packaged one per bag.

When to Replace Your 5-Lead Telemetry ECG Leadwire

Grabber ends that no longer close tightly, or that slip off electrodes when the patient moves, are a common reason to retire a leadwire. Other signs include split or hardened insulation near the grabbers or the connector, a cracked connector housing, and recurring lead-off alarms or baseline noise on one or more leads. Biomedical teams can confirm the fault by testing with a known-good leadwire on the same equipment.

Cross Reference and Interchange Part Numbers

Along with OEM part 989803152051, this compatible leadwire cross-references to OEM numbers 989803137251 and 989803133881. Aftermarket interchange numbers are listed in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source Telemetry Leadwires from IPR Medical?

IPR Medical gives biomedical and materials management teams one place to buy, sell, repair, and source parts for patient monitoring equipment and infusion pumps. As an ISO 9001:2015-certified independent service organization, we handle repairs with our own in-house technicians and supply the leadwires, cables, and parts that keep telemetry equipment in service. See more ECG cables and leadwires, or call 855-477-8866 to talk with our team.

IPR Medical buys, sells, repairs, and stocks parts for 5-lead telemetry leadwires and the monitoring systems they support. Contact us at 855-477-8866 or cs@iprmed.com.
