What Is the M3702C / M3702A Compatible 10-Lead Diagnostic EKG Cable?

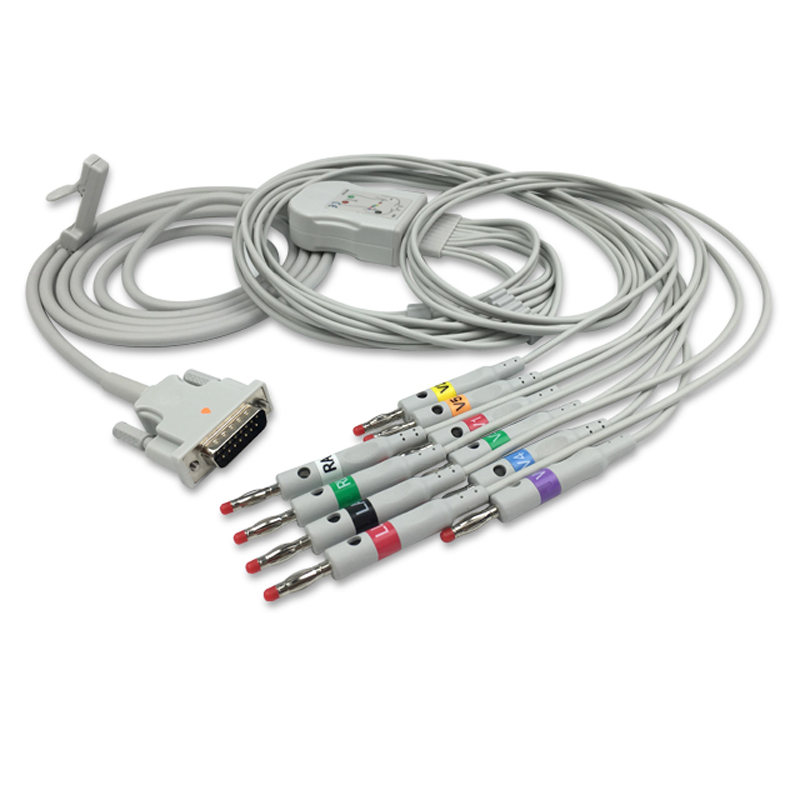

The IPR Medical EKC10R-PH-B-A is a compatible aftermarket (not OEM) 10-lead diagnostic one-piece EKG cable that replaces OEM parts M3702C and M3702A. Intended for diagnostic (EKG) use, it carries ten leads for limb and chest placement, each ending in a 4 mm banana connector, with AHA color coding and a defib-proof feature. The leads are built into the cable, and the complete assembly is reusable.

Compatible Monitor Models

This cable is listed for equipment from a wide range of manufacturers. Among them are select Welch Allyn models (the CP 10, CP 20, CP 50, CP 150, and CP 250), select Mortara / Burdick models such as the ELI 150, ELI 250, and ELI 350, select Mortara models such as the Surveyor S12/S19 and IQ Classic, and select Bionet, Spacelabs, Del Mar, Contec, and Comen models, among other brands. The original equipment manufacturer’s own models are listed with them in the Compatible Monitor Models table on the Specifications tab, which is the place to confirm your model before ordering.

Design and Construction

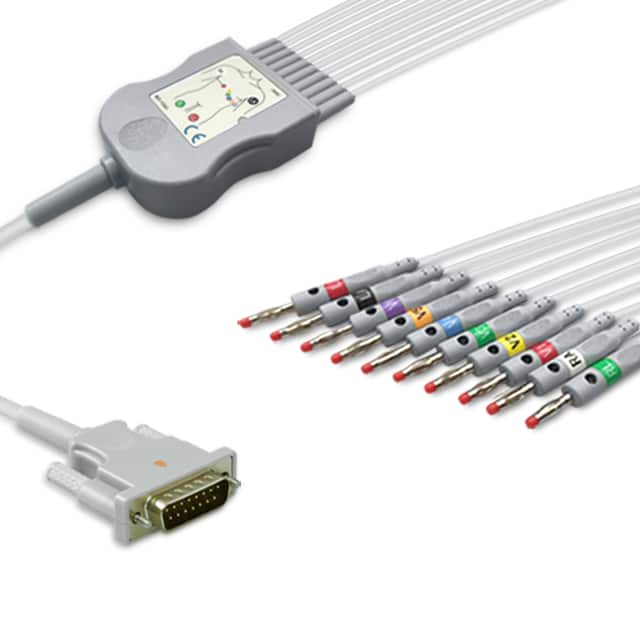

Ten leads for limb and chest placement each terminate in a 4 mm banana connector, and the leads follow AHA color coding. Its cable length is specified as 7.2 ft + mixed 2.6 ft/3.9 ft leads (2.2 m + mixed 0.8 m/1.2 m). The cable is listed as defib-proof and is reusable. Facility cleaning protocol applies between patients, and the cable is supplied one per bag.

When to Replace Your 10-Lead Diagnostic EKG Cable

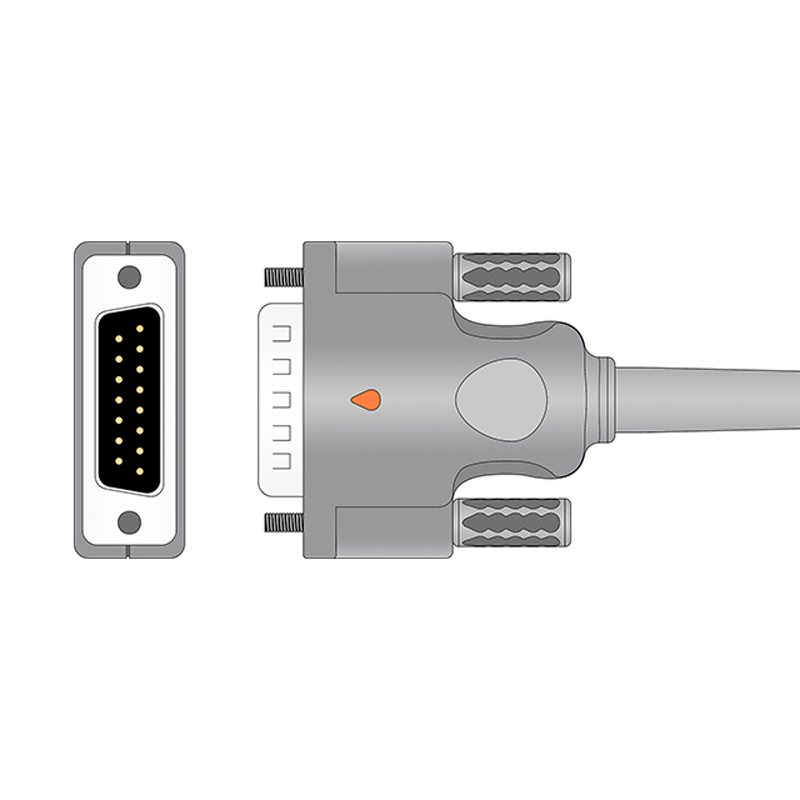

Diagnostic recordings tend to expose cable problems quickly: one lead with a noisy or flat trace, lead-off messages partway through an acquisition, or artifact that changes as the cable is handled. Inspect the banana connectors for bends or a loose fit, the jacket of the main cable and each lead for cracks or kinks, and the device connector for bent pins or a damaged housing. If a second recording with a known-good cable comes out clean, the original cable is the culprit.

Cross Reference and Interchange Part Numbers

Beyond the two OEM parts it replaces, M3702C and M3702A, this cable carries the OEM cross-references M2461A, 989803107711, and 989803175901. Interchange numbers from other equipment manufacturers include Burdick 9293-032-50, 9293-032-60, 9293-039-50, and 9293-040-50, Welch Allyn 80130-0000 and 714507, Schiller 55.065001, and Bionet 45502-13. The Specifications tab carries the complete list, aftermarket equivalents included, in its Cross Reference / Interchange Part Numbers table.

Why Source EKG Cables from IPR Medical?

IPR Medical sells this 10-lead EKG cable, and its wider work centers on parts for patient monitoring equipment and infusion pumps, which it buys, sells, repairs, and stocks. Our technicians perform those repairs in-house, and IPR Medical carries ISO 9001:2015 certification as an independent service organization. Our ECG and EKG cables page has related items, and our team is available at 855-477-8866 for orders, repairs, and parts.

IPR Medical buys, sells, repairs, and stocks parts for diagnostic EKG cables and the ECG equipment they connect to. Contact us at 855-477-8866 or cs@iprmed.com.
