What Is the 989803151631 Compatible 10-Lead ECG Leadwire Set?

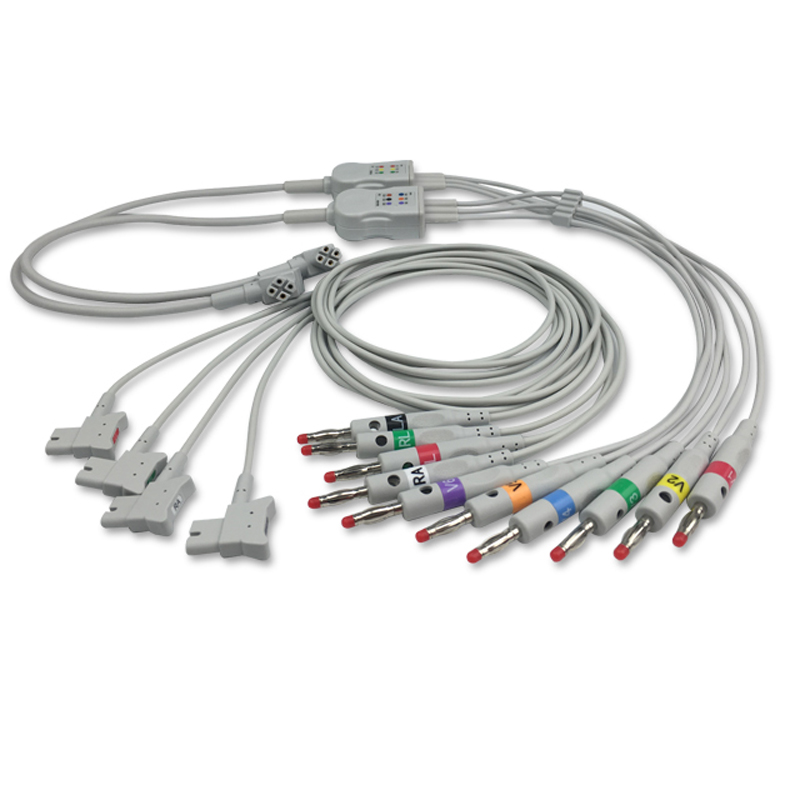

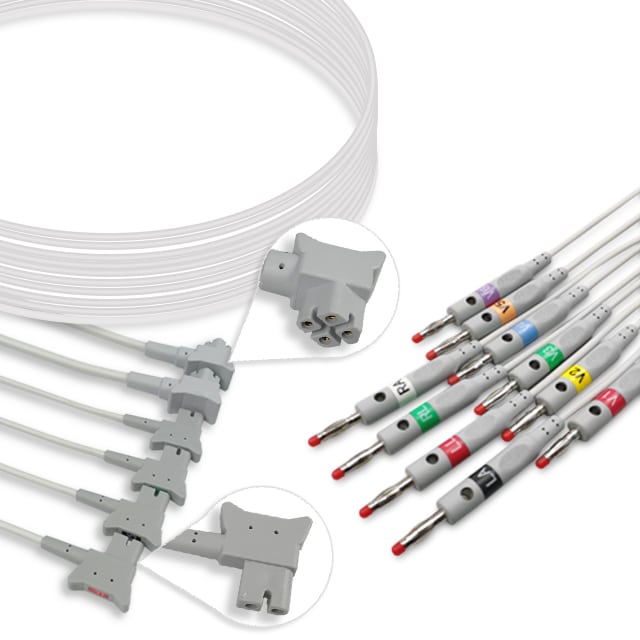

The IPR Medical EKL-PWB10-B-A is a compatible aftermarket (not OEM) 10-lead ECG leadwire set that replaces OEM part 989803151631. Its ten leads cover both limb and chest placements, and each one ends in a 4 mm banana electrode end with AHA color coding. Listed for ECG monitoring, the set is reusable and comes with mixed lead lengths of 2.6 ft + 3.9 ft (0.8 m + 1.2 m).

Compatible Monitor Models

Seven models are listed for the EKL-PWB10-B-A, three identified by numeric product numbers and four by model name. All seven are shown in the Compatible Monitor Models table on the Specifications tab. Match your device against that table before you order, and contact IPR Medical if your model does not appear there.

Design and Construction

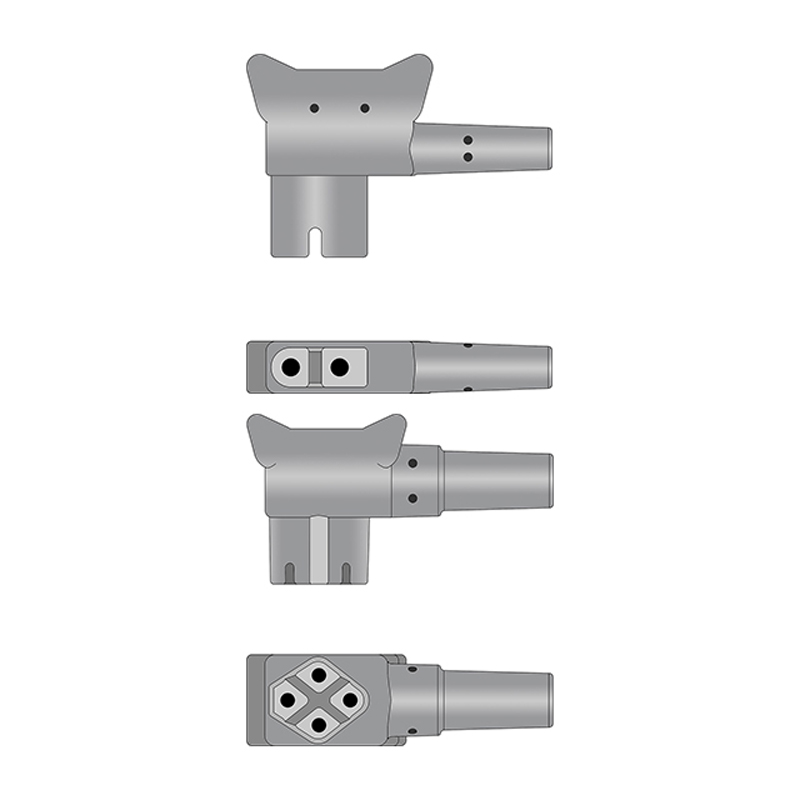

Shielded leads, 4 mm banana electrode ends, and AHA color coding define this set. Its distal connector style is listed as Individual, and the lead lengths are 2.6 ft + 3.9 ft (0.8 m + 1.2 m). You will find the lead type designation in the Specifications table. The set is reusable: clean it per facility protocol after each patient and look it over for wear before the next use. It is packed one set per bag.

When to Replace Your 10-Lead Banana ECG Leadwire Set

Signs that the set is due for replacement include banana ends that slip out of the electrode connection, insulation that is split, stiff, or discolored, and connector bodies that are cracked. Frequent lead-off alerts, baseline wander, or noise that shows up on only some leads also suggest a damaged conductor. If those symptoms clear when a known-good set is connected to the same device, the leadwires are the likely cause.

Cross Reference and Interchange Part Numbers

OEM numbers 989803151651 and 989803151671 also cross-reference to this set, in addition to the replaced part 989803151631. An aftermarket interchange number is included in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source ECG Leadwire Sets from IPR Medical?

As an ISO 9001:2015-certified independent service organization, IPR Medical buys, sells, repairs, and stocks parts for infusion pumps and patient monitoring equipment. Our technicians service equipment in our own facility, so the same team that repairs your devices can check leadwire fit before you order. Find more ECG cables and leadwires in our catalog, or call 855-477-8866 to talk through orders, repairs, or parts.

IPR Medical buys, sells, repairs, and stocks parts for reusable 10-lead ECG leadwire sets and the devices they serve. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Philips, or any other manufacturer or supplier named on this page. Philips, PageWriter, TC, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
