What Is the Spacelabs Compatible 5-Lead One-Piece ECG Cable?

The IPR Medical EC-5007RS-A is a compatible aftermarket (not OEM) 5-lead one-piece ECG cable for use with select Spacelabs models. Because the leads and the main cable are joined in one assembly, there is no separate leadwire set to manage. It is reusable and defib-proof, set up for limb + chest lead placement with snap electrode ends and AHA color coding. No single Spacelabs OEM part number is listed for it, so it is matched to monitors by model.

Compatible Monitor Models

Compatibility for this cable is listed for select Spacelabs models, among them the 90367, 90492, 91390, and 93300, as well as the Elance Series. The Specifications tab carries the complete Spacelabs list, which is worth scanning for your exact model number before an order goes in.

Design and Construction

The snap-ended leads, five in all, are color coded to AHA convention (RA white, LA black, LL red, RL green, V brown) for limb + chest placement. Cable length is specified as 8.2 ft + 3.0 ft (2.5 m + 0.9 m). Its specification lists a defib-proof feature, with monitoring as the intended use. Clean it between patients according to facility protocol; it is reusable and supplied one per bag.

When to Replace Your 5-Lead One-Piece ECG Cable

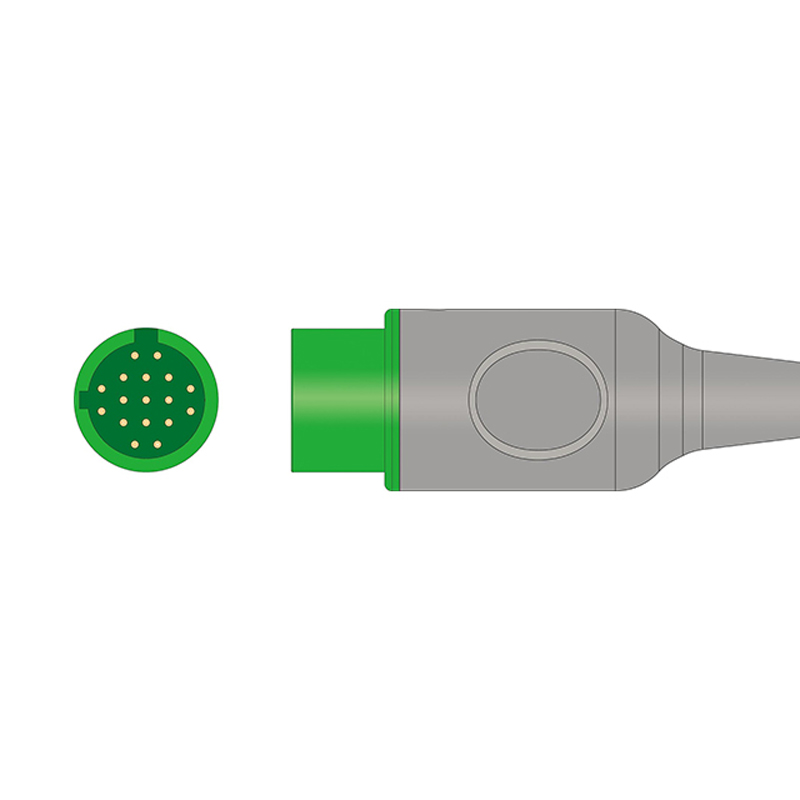

With no separate leadwires to swap out, damage anywhere along a one-piece cable means replacing the whole assembly. Look for snap ends that no longer seat firmly on the electrode, a cracked or kinked jacket on any lead or on the main cable, and bent pins or a damaged housing where it plugs into the monitor. On the clinical side, the usual signals are intermittent traces, lead-off alarms that return after new electrodes go on, and noise when the patient shifts.

Cross Reference and Interchange Part Numbers

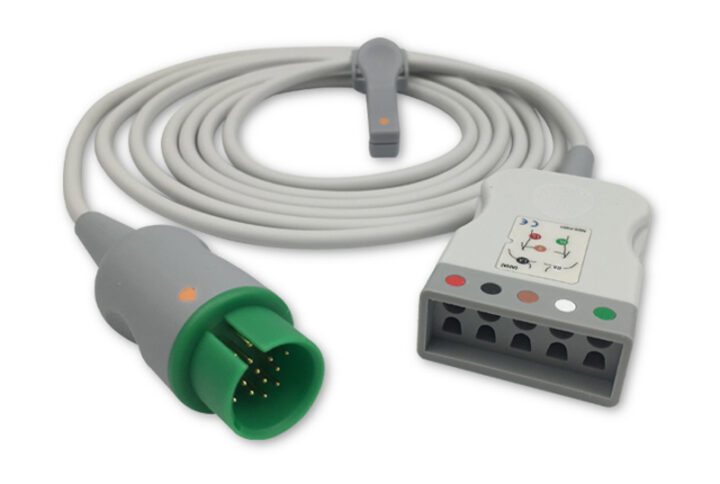

No Spacelabs OEM part number is listed as a direct equivalent of this one-piece cable, and a Spacelabs number that covers only a trunk cable is left out because it describes a different product. The aftermarket numbers that do correspond to this cable are on the Specifications tab, filed by brand in the Cross Reference / Interchange Part Numbers table.

Why Source One-Piece ECG Cables from IPR Medical?

For one-piece ECG cables and the Spacelabs monitors they connect to, IPR Medical can help: we buy, sell, repair, and stock parts for patient monitoring equipment and infusion pumps. Hands-on repair work stays with IPR Medical’s in-house technicians, and the business is an independent service organization holding ISO 9001:2015 certification. Visit our ECG cables and leadwires section, or call 855-477-8866 to talk through an order.
