What Is the GE 2016032-001 Compatible 10-Lead ECG Leadwire Set?

The GE Healthcare 2016032-001 compatible 10-lead ECG leadwire set is a reusable, aftermarket set of 10 individual Multi-Link leads for diagnostic 12-lead ECG. Each lead runs from an electrode adapter on the patient to its own position on the CAM 14 acquisition module or Multi-Link input, which gathers the signals for the electrocardiograph, stress system, or monitor. Because the leads are individual, a single damaged lead is easy to identify. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 2016032-001 leadwire set.

Compatible Equipment Models

This compatible leadwire set is confirmed for use with the GE Marquette CAM 14 acquisition module and a broad range of GE MAC electrocardiographs: the MAC 400, 500, 600, 800, 1000, 1100, 1200, 1600, 2000, 3500, 5000, 5000ST, 5500, 5500 HD, and VU360. It also fits CASE Series, CASE 8000, and CASE P2 stress systems, the CardioSmart, CardioSoft, CardioSys, and Microsmart M systems, and GE CARESCAPE B450, B650, and B850 patient monitors. This set uses Multi-Link connectors and is not for the AM4/AM5 modules on older MAC 12 and MAC 15 systems, which use a different leadwire connection.

Design and Construction

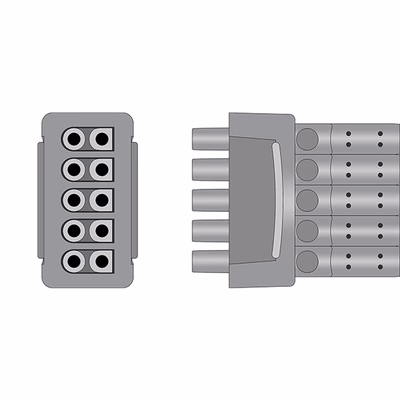

The four limb leads are 3.9 ft (1.2 m) long to reach the arms and legs, and the six chest leads are 2.6 ft (0.8 m) long to reduce slack across the precordium. Each lead is shielded to keep the diagnostic ECG clean in busy exam rooms and stress labs. At the module end, each lead has a straight twin-pin Multi-Link connector that seats into its own labeled position. At the patient end, each lead has a 4 mm banana tip that accepts banana-style electrode adapters, so staff can match the snap, tab, or clip adapter to the electrodes in use. The leads follow the AHA color code for all 10 positions. The gray TPU jacket is about 0.12 in (3.0 mm) in diameter and stays flexible through repeated cleaning. The set is latex-free, non-sterile, rated for adult and pediatric use, weighs about 0.4 lbs, and ships as one set per bag.

When to Replace Your GE Multi-Link Leadwire Set

Diagnostic ECG leadwires are handled on every patient and flex constantly at both ends. Replace the set when one or more leads show noise, baseline wander, or lead-off messages with good electrode contact, when a banana tip no longer grips its adapter firmly, when a Multi-Link connector no longer seats securely, or when you find cracked jackets, exposed shielding, or faded color coding. A single failing lead can distort the recorded 12-lead ECG or cause a lead to be flagged as missing, so many departments replace the full set at the first sign of wear.

Cross Reference and Interchange Part Numbers

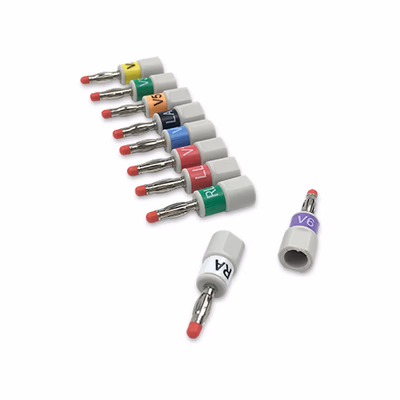

This compatible 10-lead Multi-Link leadwire set, IPR Medical SKU EKL-MQS10-B-A, cross-references to GE Healthcare part numbers 2016032-001, 2104724-001, and 2104724-005 (the OEM version of 2104724-005 has gold-plated contacts). It also interchanges with Unimed MQB10-LB and aftermarket equivalent EKL-MQ10-B-A. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. For the CAM 14 interface cable, IPR Medical also stocks the compatible GE 2016560-001 and 2016560-003 cables, along with the GE 900178-001 banana electrode adapter set.

Why Source ECG Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for diagnostic ECG, patient monitoring, and infusion equipment. Our compatible leadwires, interface cables, and adapters give cardiology and biomedical departments an affordable alternative to OEM accessories while matching OEM fit and function across GE MAC, CASE, and CARESCAPE fleets. Our team can help assemble the right leadwire, adapter, and cable combination for your systems and support your equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE MAC resting ECG systems, CAM 14 acquisition modules, and CARESCAPE monitors. Contact us at 855-477-8866 or cs@iprmed.com.
