What Is the GE 900178-001 Compatible Universal Electrode Adapter Set?

The GE 900178-001 compatible universal electrode adapter set is a set of 10 reusable adapters for resting 12-lead ECG. Each adapter connects the 4 mm banana tip of a GE leadwire to the patient’s electrode. Because the adapters are replaceable, a department can refresh worn electrode connections without replacing the whole leadwire set, and the leadwires stay protected from wear at the electrode end. This set is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 900178-001 adapter set.

Compatible Equipment Models

This compatible adapter set is confirmed for use with leadwires on the GE Healthcare Marquette CAM 14, AM4, and AM5 acquisition modules. These modules capture resting 12-lead ECGs for GE MAC series electrocardiographs and related diagnostic systems. The adapters fit any leadwire set on these modules that ends in a 4 mm banana tip.

Design and Construction

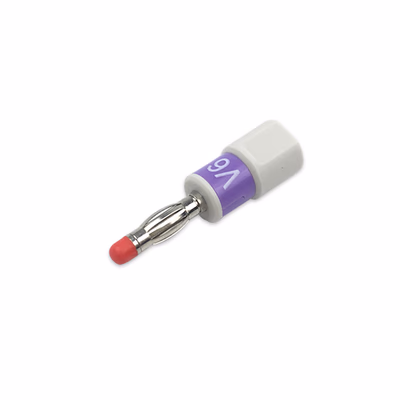

Each adapter has a 4 mm banana socket that slides securely onto the leadwire tip, and a universal clip at the other end that attaches to the patient’s electrode. The 10 adapters follow the AHA color code used in US facilities and are labeled for the four limb positions (RA, LA, LL, and RL) and the six precordial positions (V1 through V6). That makes correct 12-lead placement quick and helps prevent lead reversal errors on the recorded ECG. The adapters are latex-free, non-sterile, reusable after cleaning according to facility protocol, rated for adult and pediatric use, and ship as a set of 10 in one bag.

When to Replace Your ECG Electrode Adapters

Electrode adapters take the most handling of any part of a resting ECG setup, because staff clip and unclip them on every patient. Replace the set when clips lose tension and slip off electrodes, when a banana socket no longer grips the leadwire firmly, when color bands or labels wear off, or when housings crack. Also replace them if one lead keeps showing noise, baseline wander, or lead-off messages that go away when that adapter is swapped out. Replacing a full set at once keeps the color coding and labels consistent across all 10 positions.

Cross Reference and Interchange Part Numbers

This compatible universal electrode adapter set, IPR Medical SKU EKA-UB-10-A, cross-references to GE Healthcare Marquette part number 900178-001. It also interchanges with Pacific Medical NLGE9904 and Sage Services Group UP10-CS. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. Contact IPR Medical if you need the IEC version or a 14-piece set, or need help confirming compatibility.

Why Source ECG Accessories from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for diagnostic ECG, patient monitoring, and infusion equipment. Our compatible adapters, cables, and sensors give cardiology and biomedical departments an affordable alternative to OEM accessories while matching OEM fit and function. Our team can help match adapters and leadwires to your GE MAC fleet, source hard-to-find accessories, and support your equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE MAC resting ECG systems and CAM 14 acquisition modules. Contact us at 855-477-8866 or cs@iprmed.com.
