What Is the GE 394111-005 Compatible ApexPro FH Telemetry Leadwire?

The GE Healthcare 394111-005 compatible telemetry ECG leadwire is a reusable, aftermarket 5-lead set that plugs directly into a GE ApexPro FH telemetry transmitter. Unlike bedside lead sets that route through a trunk cable, a telemetry lead set connects straight from the patient’s electrodes to the body-worn transmitter, which sends the ECG wirelessly to the central station. That lets patients walk and move freely while staying on continuous cardiac monitoring. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 394111-005 and 394111-502 lead sets.

Compatible Equipment Models

This compatible lead set is confirmed for use with the GE ApexPro FH telemetry transmitter and the Mindray/Datascope DT-4500 telemetry transmitter, which shares the same lead set connector. It is not for Multi-Link bedside trunk cables or the ApexPro CH transmitter, which use different lead connections, so confirm your transmitter model before ordering.

Design and Construction

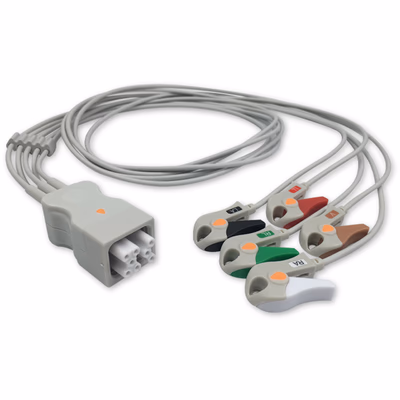

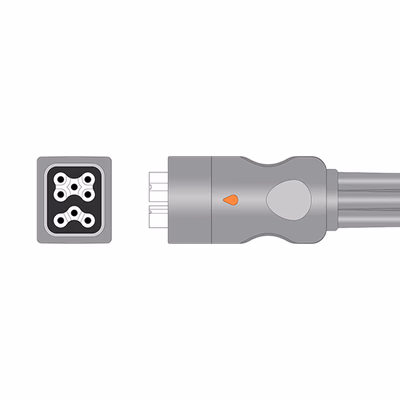

All five leads are 3 ft (0.9 m) long and shielded, which helps keep the telemetry signal clean as patients move around the unit. The leads join at a molded DIN-style ApexPro FH connector that plugs into the transmitter and holds firmly during ambulation. At the patient end, grabber/pinch clips attach to both tab and snap-style electrodes. The leads follow the AHA color code: white for right arm, black for left arm, red for left leg, green for right leg, and brown for the chest lead. The gray TPU jacket is about 0.10 in (2.6 mm) in diameter and stays flexible and lightweight for patient comfort. The set is latex-free, non-sterile, rated for adult and pediatric patients, weighs about 0.3 lbs, and ships one per bag.

When to Replace Your ApexPro FH Telemetry Leadwire

Telemetry lead sets wear faster than bedside sets because they are tugged, twisted, and flexed as patients walk, shower-prep, and sleep. Replace the set when the central station shows frequent “leads off” or noisy signals despite fresh electrodes, when grabber clips no longer grip firmly, when the molded connector no longer seats snugly in the transmitter, or when you find cracked jacketing, exposed shielding, or worn color coding. Telemetry artifact is a leading cause of nuisance alarms, so replacing worn lead sets promptly helps cut alarm fatigue on the unit.

Cross Reference and Interchange Part Numbers

This compatible 5-lead ApexPro FH telemetry leadwire, IPR Medical SKU EL-TAF5-90G-A, cross-references to GE Healthcare part numbers 394111-005 and 394111-502 and to Marquette part number 394111-011. It also interchanges with Sage Services Group L02-05FH-29P and Unimed AP5-90P. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. Contact IPR Medical if you are replacing a part number not listed here or need a 3- or 6-lead ApexPro FH set.

Why Source Telemetry Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring, telemetry, and infusion equipment. Telemetry lead sets are high-turnover consumables on any cardiac floor, and our compatible sets give biomedical and materials teams an affordable way to keep spares on hand while matching OEM fit and function. Our team can help confirm the right lead set for your ApexPro transmitters and support your telemetry and monitoring equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE ApexPro telemetry systems and GE patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.
