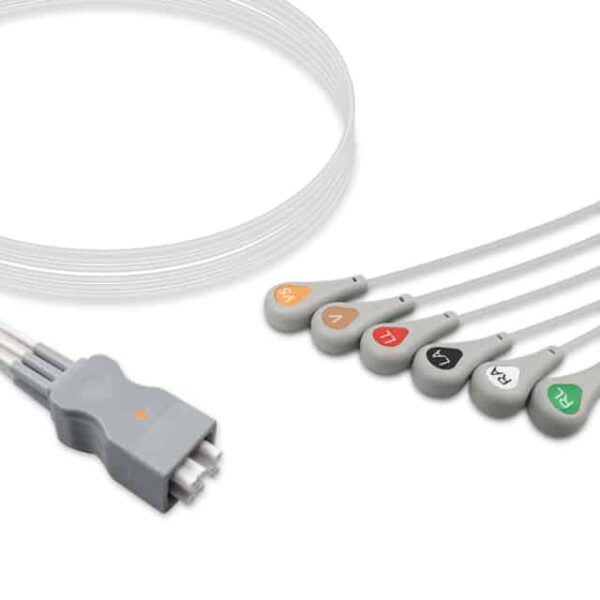

What Is the GE 394111-010 Compatible 6-Lead ApexPro FH Snap Leadwire?

The GE Healthcare 394111-010 compatible telemetry ECG leadwire is a reusable, aftermarket 6-lead set with snap-style electrode connectors, designed to plug directly into a GE ApexPro FH telemetry transmitter. The four limb leads and two chest leads let the central station display two precordial views for ambulatory patients. The snap connectors press onto standard snap electrodes and hold securely through hours of patient movement. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 394111-010, 394111-008, and 394111-513 lead sets.

Compatible Equipment Models

This compatible snap-end set is confirmed for use with the GE ApexPro FH telemetry transmitter and the Mindray/Datascope DT-4500 telemetry transmitter, which shares the same molded lead set connector. For both chest leads to appear on the central station, the transmitter must be configured for 6-lead monitoring. This set is not for Multi-Link bedside trunk cables.

Design and Construction

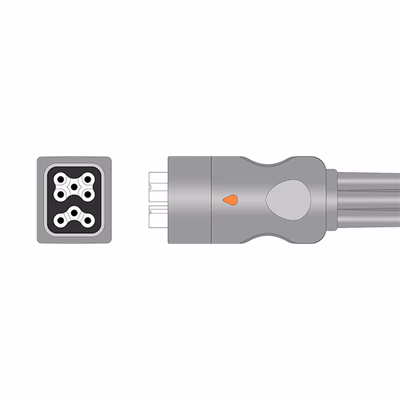

Each of the six shielded leads is 3 ft (0.9 m) long and ends in a snap connector that clicks onto the stud of a standard snap electrode. The low profile lies flat under a patient gown and is less likely to catch on bedding or clothing than a clip, which is why many telemetry units prefer snap sets for ambulatory patients. At the transmitter end, all six leads come together in a single molded, DIN-style ApexPro FH connector that plugs in securely. The leads follow the AHA color code, and the gray TPU jacket is about 0.10 in (2.6 mm) in diameter for flexibility and comfort. The set is latex-free, non-sterile, rated for adult and pediatric patients, weighs about 0.3 lbs, and ships one per bag.

When to Replace Your ApexPro FH Snap Leadwire

Snap connectors wear as their internal retention springs loosen with repeated use. Replace the set when snaps pop off electrodes easily, when one or more leads show persistent artifact or “leads off” alarms despite fresh electrodes, when the molded connector no longer seats firmly in the transmitter, or when you see cracked jacketing, exposed shielding, or worn color coding. Loose snaps are a common source of telemetry artifact and nuisance alarms, so replacing worn sets promptly helps keep alarm burden down on the unit.

Cross Reference and Interchange Part Numbers

This compatible 6-lead ApexPro FH snap leadwire, IPR Medical SKU EL-TAF6-90S-A, cross-references to GE Healthcare part numbers 394111-010, 394111-008, and 394111-513, and to Unimed part number AP6-90S. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. For units that prefer clip-style attachment, IPR Medical also stocks the compatible GE 394111-009 6-lead grabber set.

Why Source Telemetry Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring, telemetry, and infusion equipment. Our ApexPro FH-compatible lead sets come in 5- and 6-lead configurations with snap or grabber ends, so each unit can match its electrode type and monitoring protocol while spending less than it would on OEM. Our team can help confirm lead set compatibility with your transmitters and support your telemetry and monitoring equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE ApexPro telemetry systems and GE patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by GE Healthcare, or any other manufacturer or supplier named on this page. GE Healthcare, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
