What Is the GE Marquette AM4/AM5 Compatible 10-Lead ECG Leadwire Set?

The GE Marquette AM4/AM5 compatible 10-lead ECG leadwire set is a reusable, aftermarket set of 10 individual leads for diagnostic 12-lead ECG. Each lead runs from an electrode on the patient to its own port on the AM4 or AM5 acquisition module, which digitizes the signals and sends them to the electrocardiograph or stress system. Because the leads are individual rather than bundled into one trunk, a single damaged lead can be identified and handled on its own. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM AM4/AM5 leadwire set.

Compatible Equipment Models

This compatible leadwire set is confirmed for use with the GE Marquette AM4 and AM5 acquisition modules. Those modules are used with the MAC 6, MAC 8, MAC 12, MAC 15, MAC PC, and MAC VU electrocardiographs, the MAX-1 and MAX-Personal stress systems, the CASE 12, CASE 15, and CASE 16 exercise testing systems, and the CENTRA system. It is not for the CAM 14 module used on the MAC 5000 and MAC 5500, which uses a different leadwire connection, so confirm the acquisition module in use before ordering.

Design and Construction

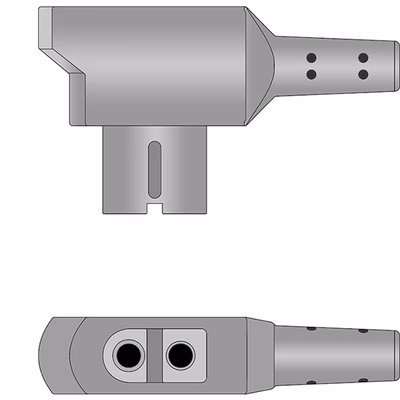

Each of the 10 leads is 3 ft (0.9 m) long and shielded, which helps keep the diagnostic ECG clean in electrically busy exam rooms and stress labs. At the module end, each lead has a 90° angled twin-pin connector that seats into its own position on the AM4 or AM5 and stays low-profile against the module. At the patient end, each lead has a 4 mm banana tip that accepts banana-style electrode adapters, so staff can match the snap, tab, or clip adapter to the electrodes they use. The leads follow the AHA color code for the four limb positions and six precordial positions. The gray TPU jacket is about 0.12 in (3.0 mm) in diameter and stays flexible through repeated cleaning. The set is latex-free, non-sterile, rated for adult and pediatric use, weighs about 0.4 lbs, and ships as one set per bag.

When to Replace Your AM4/AM5 Leadwire Set

Diagnostic ECG leadwires are handled on every patient and flexed constantly at both ends. Replace the set when one or more leads show noise, baseline wander, or lead-off messages with good electrode contact, when a banana tip no longer grips its adapter firmly, when a module-end connector no longer seats securely, or when you find cracked jackets, exposed shielding, or faded color coding. A single failing lead in a 12-lead set can distort the recorded ECG or cause a lead to be flagged as missing, so many departments replace the full set at the first sign of wear to keep color coding and performance consistent.

Cross Reference and Interchange Part Numbers

This compatible 10-lead leadwire set, IPR Medical SKU EKL-MQD10-B-A, cross-references to GE Healthcare Marquette part number 900177-203. It also interchanges with Sage Services Group L02-410-MSB and Umed MQD10-LB. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. For banana electrode adapters that pair with these leads, IPR Medical also stocks the compatible GE 900178-001 universal electrode adapter set.

Why Source ECG Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for diagnostic ECG, patient monitoring, and infusion equipment. Our compatible leadwires, interface cables, and adapters help cardiology departments and stress labs keep GE Marquette MAC, MAX, and CASE systems in service while matching OEM fit and function. Our team can help assemble the right combination of leadwires, adapters, and interface cables for your AM4/AM5 systems and support your equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE Marquette MAC and CASE ECG systems and AM4/AM5 acquisition modules. Contact us at 855-477-8866 or cs@iprmed.com.
