What Is the GE 411202-001 Compatible 5-Lead Snap Leadwire?

The GE Healthcare 411202-001 compatible 5-lead ECG leadwire is a reusable, aftermarket snap-end lead set for GE’s Multi-Link ECG system. It carries the signals from four limb electrodes and one chest electrode to a Multi-Link trunk cable, which connects to the bedside monitor, anesthesia system, or imaging system. Snap-end sets are the standard choice for units that use snap electrodes. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 411202-001, 2106383-001, and 2106381-001 lead sets.

Compatible Equipment Models

Because it uses the GE Multi-Link connector, this compatible 5-lead snap set works across GE’s installed base of monitors and ECG-capable systems. That includes CARESCAPE B450, B650, and B850 monitors, the Procare B40, Dash 1000 through Dash 5000 and Dash PRO monitors, Solar 3000, 8000, and 9500 systems, Tram and PDM modules, ApexPro CH telemetry, Eagle and Responder monitors, MAC-Lab, and Unity Systems. It also fits the Aisys CS2 anesthesia system, Logiq and Vivid ultrasound systems, the Corometrics 120, 250cx, and 259cx, Datex-Ohmeda Aestiva/5, E-PRESTN, M-PRESTN, and Unity equipment, and the Draeger Narkomed 6400.

Design and Construction

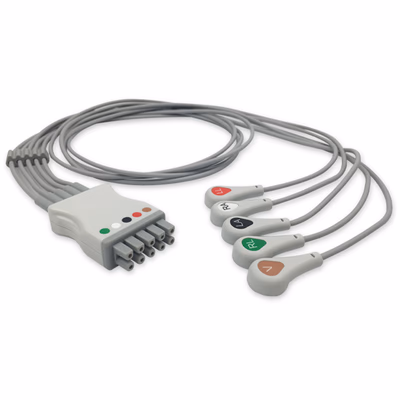

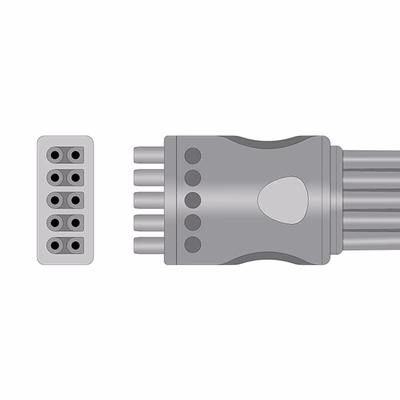

The five shielded leads are each 3 ft (0.9 m) long and end in snap connectors that press onto the stud of a standard snap electrode. Snaps give a flat, secure connection that stays put through repositioning and long monitoring periods. At the trunk end, a molded Multi-Link connector locks into the matching GE trunk cable. The leads follow the AHA color code: white for right arm, black for left arm, red for left leg, green for right leg, and brown for the chest lead. The gray TPU jacket is about 0.10 in (2.6 mm) in diameter and resists tangling and repeated cleaning. The set is latex-free, non-sterile, rated for adult and pediatric patients, weighs about 0.3 lbs, and ships one per bag.

When to Replace Your GE Multi-Link 5-Lead Snap Leadwire

Snap lead sets lose performance as the snap springs relax and the jacket stiffens with cleaning. Replace the set when snaps pull off electrodes easily, when a lead shows noise or “lead fail” alarms that clear with a new set, when the Multi-Link connector no longer clicks firmly into the trunk cable, or when you see cracked jacketing, exposed shielding, or faded color coding. Replacing worn sets promptly reduces nuisance alarms and helps keep ST and arrhythmia analysis accurate.

Cross Reference and Interchange Part Numbers

This compatible 5-lead snap leadwire, IPR Medical SKU EL-MQ5-90S-A, cross-references to GE Healthcare part number 411202-001 and to GE Marquette part numbers 411202-002, 411202-005, 411200-001, 411200-002, 411200-005, 2106381-001, 2106381-002, 2106381-005, 2106383-001, 2106383-002, 2106383-005, and E9008KB. It also interchanges with AMC LW-2410029/5A, LW-2410051/5A, LW-24100MX/5A, and LW-2400029/5A; Curbell LDW-05AW-29AM-0000, LDW-05AW-51AM-0000, and LDW-05AW-MXAM-0000; RPI LKM054 and LKM056; Sage Services Group L02-05-29S and L02-55-29S; and Schiller 55.065134. Several of these numbers are the same lead set in 29 in, 51 in, or mixed lengths, so confirm the 3 ft (0.9 m) length suits your application. For grabber-style clips, IPR Medical also stocks the compatible GE 2106389-001 5-lead grabber set.

Why Source ECG Leadwires from IPR Medical?

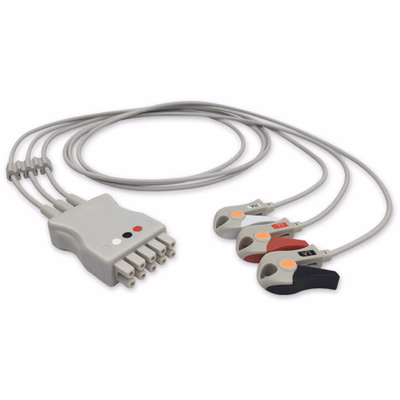

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. We stock GE Multi-Link-compatible lead sets in 3-, 5-, and 6-lead configurations with snap and grabber ends, so biomedical and materials teams can standardize ECG accessories across CARESCAPE, Dash, and Solar fleets at lower cost than OEM. Our team can help match lead sets to your trunk cables and support your monitors with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE CARESCAPE, Dash, and Solar patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.
