What Is the GE 2017008-001 Compatible Dual-Tube NIBP Hose?

The GE Healthcare 2017008-001 compatible NIBP air hose is a reusable, aftermarket dual-tube extension hose that connects an adult or pediatric two-tube blood pressure cuff to the NIBP port on GE, Marquette, Dinamap, and Datex-Ohmeda equipment. GE’s DINAMAP-based NIBP measurement uses a dual-lumen design, with one tube for cuff inflation and deflation and the other for pressure sensing, so an airtight two-tube hose is essential for accurate systolic, diastolic, and mean readings in mmHg. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 2017008-001 hose.

Compatible Equipment Models

This compatible hose is confirmed for use across a wide range of GE-family equipment. That includes Marquette Dash 2000, 2500, 3000, 4000, and 5000 monitors, Eagle and Eagle 3000, Solar, Tram 400, 450, 451, 800, 850, and 851 modules, the PDM module, and MAC-Lab. It also fits GE CARESCAPE B450, B650, and B850 monitors and Corometrics 120, 128, 129, 250, 250cx, 259, and 259cx fetal monitors. Datex-Ohmeda Aespire 7900, E-PRESTN, E-PRETN, E-PSM(P), and E-RESTN equipment and the Draeger Narkomed 6400 are also supported. The hose pairs with dual-tube adult and pediatric cuffs. Single-tube and neonatal cuffs need a different hose.

Design and Construction

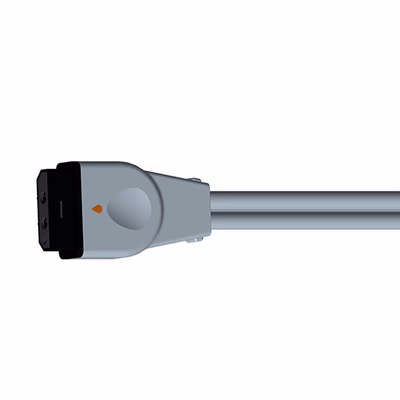

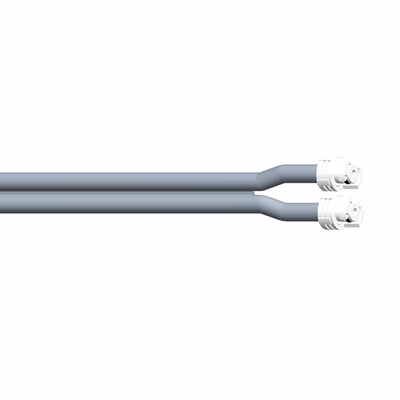

The hose runs 12 ft (3.6 m), a long-reach length suited to ICU, OR, and labor and delivery rooms where the monitor sits well away from the patient. The monitor end has a GE adult “black block” connector made of polyamide that seats both lumens in the NIBP port at once. The cuff end has two POM twist-lock connectors that mate with the female fittings on compatible dual-tube cuffs and lock in place to prevent accidental disconnection. The gray PVC tubing has an inner diameter of about 0.12 in (3.1 mm) and an outer diameter of about 0.24 in (6.2 mm) and resists kinking. The hose is latex-free, non-sterile, rated for adult and pediatric use, weighs about 0.7 lbs, and ships one per bag.

When to Replace Your GE NIBP Air Hose

A leak in either lumen of a dual-tube hose disrupts the pressure measurement. Replace the hose when the monitor reports “cuff leak,” “NIBP overpressure,” or measurement-failed messages with a known-good cuff, when cycles take noticeably longer or repeat, or when readings disagree with a manual check. Also replace it if the tubing has cracked, hardened, or kinked near the connectors, if the black block no longer seats firmly in the monitor, or if a twist-lock fitting no longer locks onto the cuff. A leak test with an NIBP simulator quickly confirms whether the hose is at fault.

Cross Reference and Interchange Part Numbers

This compatible dual-tube NIBP hose, IPR Medical SKU BPH-AD36-14A-10, cross-references to GE Healthcare part number 2017008-001 and Marquette part number 414873-001. It also interchanges with AMC HO-D34178-12, Pacific Medical NBMQ1359-12, Sage Services Group H02-24-17L, and Unimed HD36-24-17 and HD30-24-17. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. Contact IPR Medical if you need a shorter hose or a matching dual-tube cuff.

Why Source NIBP Hoses from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. Our compatible NIBP hoses, cuffs, cables, and sensors help biomedical departments control accessory costs across large GE, Dinamap, and Corometrics fleets while matching OEM fit and function. Our team can help confirm the right hose and cuff pairing for your monitors and support your equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE Dash, CARESCAPE, Dinamap, and Corometrics equipment. Contact us at 855-477-8866 or cs@iprmed.com.
