What Is the GE 9461-217 Compatible Dual-Tube NIBP Hose?

The GE Healthcare 9461-217 compatible NIBP air hose is an aftermarket dual-tube hose that connects an adult or pediatric two-tube blood pressure cuff with screw-type fittings to the NIBP port on GE, Marquette, Dinamap, Corometrics, and Datex-Ohmeda equipment. GE’s DINAMAP-based NIBP measurement uses one lumen for cuff inflation and deflation and a second for pressure sensing. Both lines have to stay sealed for the monitor to report accurate systolic, diastolic, and mean pressures in mmHg. It is a compatible replacement, not an original GE part, and it is built to the same fit, form, and function as the OEM 9461-217 hose.

Compatible Equipment Models

This compatible hose is confirmed for use with GE Marquette Dash 2000, 2500, 3000, 4000, and 5000 monitors, Eagle and Eagle 3000, Solar, Tram 400, 450, 451, 800, 850, and 851 modules, the PDM module, and MAC-Lab. It also fits GE CARESCAPE B105, B125, B450, B650, and B850 monitors, Dinamap B105, B105M, B125, B125M, and B155M, the Procare B40, and Corometrics 120, 128, 129, 250, 250cx, 259, and 259cx monitors. Datex-Ohmeda Aespire 7900, B30, E-PRESTN, E-PRETN, E-PSM(P), and E-RESTN equipment and the Draeger Narkomed 6400 are also supported. The hose is intended for adult and pediatric two-tube cuffs with screw-type connectors, so check the cuff fittings before ordering.

Design and Construction

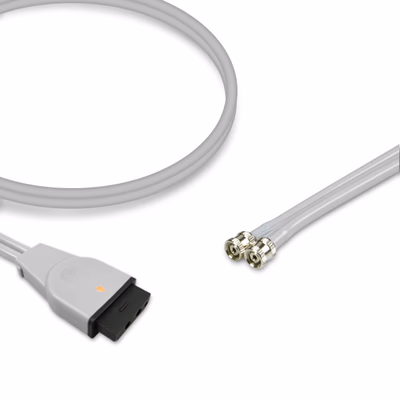

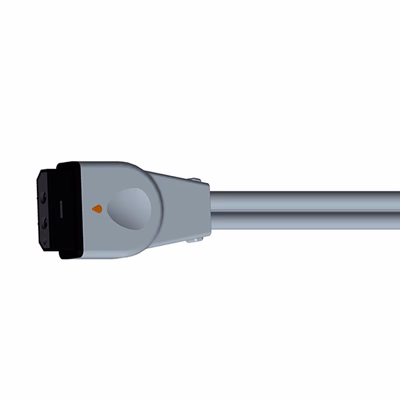

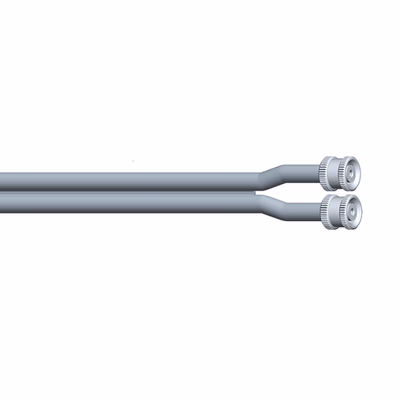

At 8.2 ft (2.5 m), this hose is the standard bedside length, long enough to reach from a bed-rail or wall-mounted monitor to the patient without excess tubing to coil or trip over. The monitor end has a GE adult “black block” connector that seats both lumens in the NIBP port together, so the inflation and sensing lines can’t be crossed. The cuff end has two connectors that thread onto two-tube cuffs with screw fittings for a secure, leak-resistant seal. The hose is sized for adult and pediatric patients and ships one per bag.

When to Replace Your GE NIBP Air Hose

Dual-tube hoses are coiled, stretched, and rolled over by beds and carts, and a leak in either lumen interferes with the measurement. Replace the hose when the monitor shows “cuff leak” or measurement-failed messages with a known-good cuff, when inflation cycles take longer or repeat, or when results disagree with a manual check. Also replace it if the tubing is cracked, hardened, or kinked near either end, if the screw fittings no longer seal tightly on the cuff, or if the black block wobbles in the monitor port. An NIBP simulator leak test confirms whether the hose is the problem.

Cross Reference and Interchange Part Numbers

This compatible dual-tube NIBP hose, IPR Medical SKU BPH-AD25-14A-09M, cross-references to GE Healthcare part numbers 9461-217, 2017008-003, and 2017008-004 (the OEM 2017008-004 is a 4 ft hose). It also interchanges with AMC HO-D3409098-12, Sage Services Group H02-24-17, and Unimed HD36-24-09 and HD-24-09. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. For a longer 12 ft hose, ask about the compatible GE 2017008-003 screw-connector version.

Why Source NIBP Hoses from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. We carry compatible GE dual-tube NIBP hoses in multiple lengths for adult, pediatric, and neonatal use, so biomedical and materials teams can match each care area’s layout at lower cost than OEM. Our team can help confirm the right hose and cuff pairing and support your GE, Dinamap, and Corometrics equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE Dash, CARESCAPE, Dinamap, and Corometrics equipment. Contact us at 855-477-8866 or cs@iprmed.com.
