What Is the GE Compatible 10-Lead One-Piece ECG Cable?

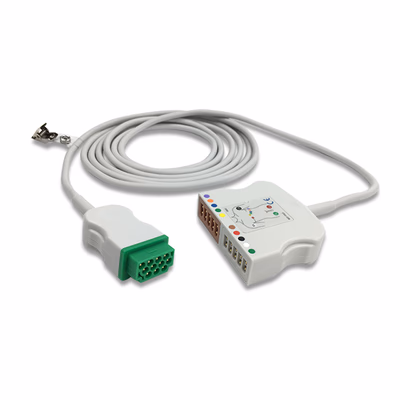

The GE Healthcare compatible 10-lead one-piece ECG cable is a reusable, aftermarket patient cable with a trunk and all 10 leadwires built into a single assembly. It connects directly from the patient’s electrodes to compatible GE and Marquette monitors, with no separate trunk cable and lead set to match or keep track of. The 10-lead configuration supports full 12-lead ECG monitoring, and the cable also carries the thoracic impedance signal the monitor uses to calculate respiratory rate. It is a compatible replacement, not an original GE part, and it is built to match the fit, form, and function of the OEM one-piece cable.

Compatible Monitor Models

This compatible one-piece cable is confirmed for use with GE CARESCAPE B650 monitors, GE Marquette Dash, Eagle, and Solar monitors, the PDM module, and the Cath-Lab and Mac-Lab hemodynamic recording systems. It also fits Datex-Ohmeda E-PRESTN and M-PRESTN modules. Because the leads are permanently attached, confirm that your monitor supports 10-lead (12-lead) ECG before ordering.

Design and Construction

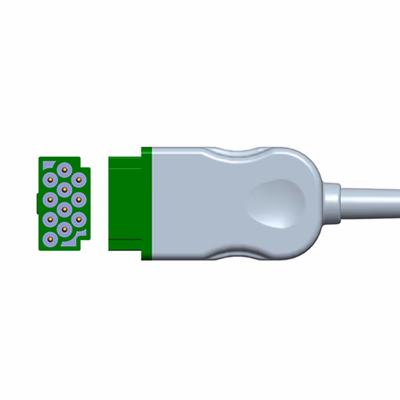

The trunk runs 7.2 ft (2.2 m) from the monitor to the lead breakout. From there, 10 leads fan out in mixed lengths of 2.6 ft (0.8 m) and 3.9 ft (1.2 m), so the limb leads can reach the extremities while the chest leads stay short and tidy across the precordium. Each lead ends in a grabber/pinch clip, and the leads are AHA color-coded and labeled for RA, LA, LL, RL, and V1 through V6. Because the whole assembly is one piece, there is no trunk-to-leadwire connection to loosen or lose. The cable ships one per bag.

When to Replace Your GE One-Piece ECG Cable

With a one-piece cable, damage to any single lead means replacing the whole assembly. Replace the cable when one or more leads show persistent noise or “lead fail” alarms with fresh electrodes, when respiratory rate becomes erratic while the ECG looks normal, when grabber clips no longer hold firmly, or when you see cracked jacketing at the lead breakout, exposed shielding, faded labels, or a monitor connector that no longer seats securely. Keeping a spare on hand in the cath lab or ICU avoids delays when a cable fails mid-procedure.

Cross Reference and Interchange Part Numbers

This compatible 10-lead one-piece ECG cable, IPR Medical SKU EC-10004G-A, interchanges with Unimed part number 21086P. Materials managers and purchasing staff can use this number to confirm the match against existing inventory, work orders, or requisitions. If you are replacing a GE OEM one-piece cable and have its part number on hand, contact IPR Medical and our team will confirm the match.

Why Source ECG Cables from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. Along with one-piece cables, we stock GE Multi-Link trunk cables and 3-, 5-, 6-, and 10-lead sets, so each care area can choose the ECG cable setup that fits its workflow at lower cost than OEM. Our team can help confirm the right cable for your monitors and support your GE equipment with in-house repair services.

IPR Medical buys, sells, repairs, and stocks parts for GE CARESCAPE, Dash, and Solar patient monitors. Contact us at 855-477-8866 or cs@iprmed.com.
