What Is the Mindray 040-000961-00 Compatible 5-Lead One-Piece ECG Cable?

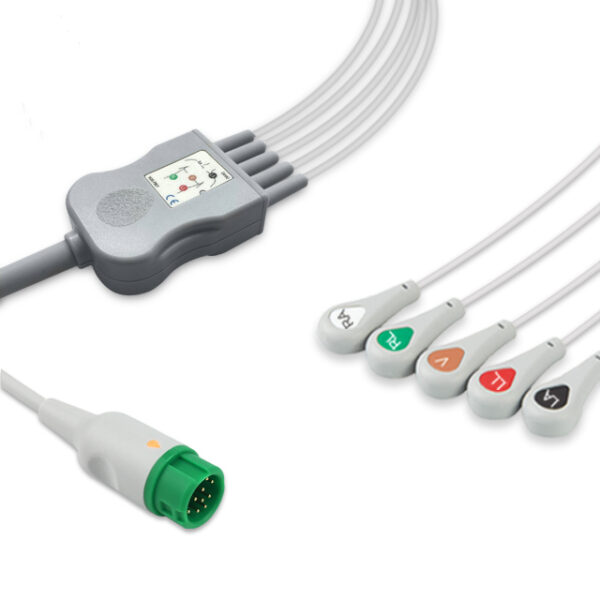

The Mindray 040-000961-00 compatible 5-lead one-piece ECG cable (SKU EC-5016S-A) is a reusable, aftermarket replacement (not OEM). The trunk cable and five AHA-coded limb and chest leads (RA white, LA black, RL green, LL red, V brown) are built as a single assembly, so there is no separate leadwire set to connect. The trunk is 8.2 ft (2.5 m) and the leads are 3 ft (0.9 m), for a total reach of about 11.2 ft (3.4 m). In addition to ECG, the cable supports respiration rate monitoring.

Compatible Monitor Models

This cable is compatible with a broad range of Mindray monitors, including the BeneView T1, T5, T6, T8, and T9, the BeneVision N1, N12, N15, N17, N19, and N22 and ePM 10, 12, and 15 monitors, select iMEC, uMEC, iPM, and cPM models, the Passport 8, 12, 12m, and 17m, and the BeneHeart D3 and D6 defibrillator/monitors. It is also compatible with the Datascope DPM6, DPM7, MPM, PM5000, PM6000, and T8, as well as select Biocare, Edan, MDPro, Medica D, and Northern Meditec monitors. The complete model list is in the Specifications tab.

Design and Construction

Each lead ends in a snap that attaches to standard snap electrodes. Because the cable is a single piece, there is no trunk-to-leadwire junction to loosen or contaminate. It is reusable and ships one per bag.

When to Replace Your One-Piece ECG Cable

Replace the cable when ECG traces show noise, baseline wander, or intermittent lead-off alarms that appear or clear when the cable is flexed, since these usually point to a broken conductor inside the trunk or a lead. Respiration waveforms that drop out or read erratically can point to the same kind of fault. Because the trunk and leads are a single assembly, damage anywhere along the cable, such as a split jacket, bent or damaged connector pins, loose or corroded snaps, or faded color bands, means the whole cable should be retired. Swapping in a known-good cable is a quick way for biomedical staff to separate a cable fault from a monitor ECG input fault.

Cross Reference and Interchange Part Numbers

This cable interchanges with Mindray 040-000961-00 (alternate Mindray reference EA6251B), Edan 01.57.471476, and DRE P05021. Contact IPR Medical with your monitor model or existing cable part number and we will confirm the match.

Why Source Mindray-Compatible ECG Cables from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for Mindray and Datascope patient monitors, so our team can help match ECG cables to the monitors in your fleet. Our in-house technicians repair and refurbish monitoring equipment, and we keep compatible ECG cables and other monitoring accessories in stock to keep units in service. Browse more ECG cables and leadwires or contact us for help confirming the right part.
