What Is the Nellcor DEC-8 Compatible SpO2 Adapter Cable?

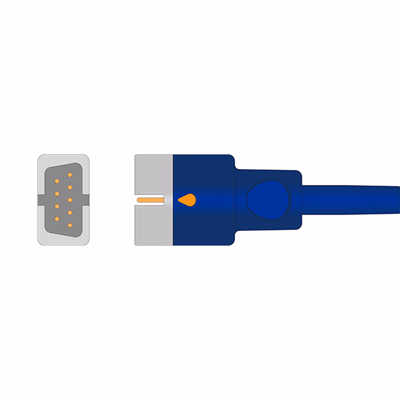

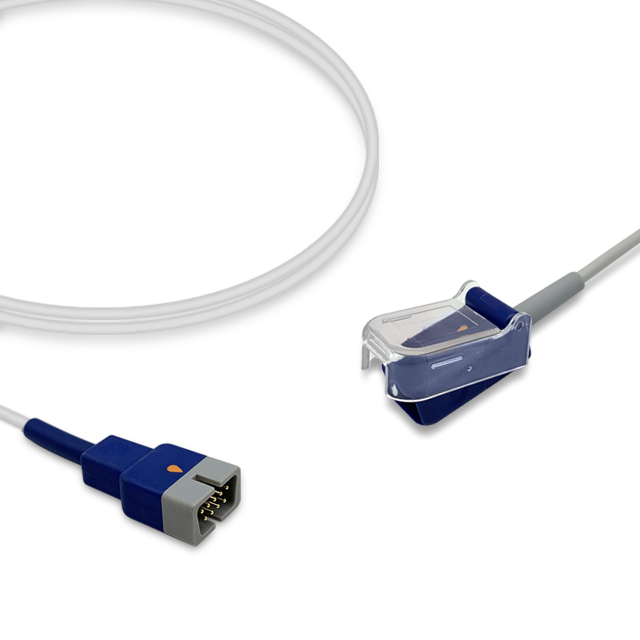

The Nellcor DEC-8 compatible SpO2 adapter cable (SKU SA-001X-24) is a reusable, aftermarket replacement (not OEM). It is a 7.9 ft (2.4 m) extension cable that connects a Nellcor OxiMax-compatible SpO2 sensor to the SpO2 input of a compatible pulse oximeter or patient monitor. The monitor end is a dual-keyed male 9-pin D-sub (DB9) connector, and the sensor end is a female 9-pin D-sub (DB9) connector that accepts the sensor plug.

Compatible Monitor Models

This adapter cable is compatible with a wide range of Nellcor pulse oximeters, including the N-series (such as the N-560, N-595, and N-600x) and NPB-series (such as the NPB-40, NPB-190, NPB-295, and NPB-4000). It is also compatible with select GE Healthcare, Marquette, Mindray, Datascope, Welch Allyn, Nihon Kohden, Criticare, BCI, and Physio-Control monitors and defibrillators, along with monitors from many other manufacturers. Some Datascope models are compatible only when equipped with the Nellcor SpO2 option. The complete model list is in the Specifications tab.

Design and Construction

The adapter cable is designed for Nellcor OxiMax sensor technology, so it should be paired with OxiMax-compatible sensors. The dual-keyed male DB9 connector plugs into the monitor or oximeter SpO2 input, and the female DB9 connector accepts the standard 9-pin sensor plug. At 7.9 ft (2.4 m), the cable gives staff room to position the monitor away from the bedside while the sensor stays on the patient. It is reusable and ships one per bag.

When to Replace Your SpO2 Adapter Cable

Replace the adapter cable when the monitor shows sensor-off or no-sensor messages with a known-good sensor attached, or when SpO2 and pulse readings drop out or turn erratic as the cable is moved. Cracked or kinked jackets, bent pins or damaged sockets at either DB9 connector, and loose or worn connector shells are also signs the cable should be retired. Testing with a known-good adapter cable is a quick way for biomedical staff to separate a cable fault from a sensor or monitor SpO2 board fault.

Cross Reference and Interchange Part Numbers

This cable interchanges with Nellcor DEC-8 and 45268, AMC CB-A400-1011D8, Beta Biomed B400-1011E, Envitec X-4212, Marquette / GE Healthcare EC8, Pacific Medical NXNE2626-8 and NXNE400, Physio-Control 11110-000176, Sage E06-22M, Spacelabs 700-0287-00 and 700-0290-0, Tenacore TE1713, Unimed U708-71 and U710-71, and Welch Allyn 008-0742-00 and 008-1012-00, plus the additional numbers in the Specifications tab. Contact IPR Medical with your monitor model or existing cable part number and we will confirm the match.

Why Source Nellcor-Compatible SpO2 Cables from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for patient monitoring equipment, so our team can help match SpO2 sensors and adapter cables to the monitors in your fleet. Our in-house technicians repair and refurbish monitoring equipment, and we keep compatible SpO2 cables and other monitoring accessories in stock to keep units in service. Browse more SpO2 sensors and adapter cables or contact us for help confirming the right part.

IPR Medical buys, sells, repairs, and stocks parts for patient monitoring equipment, including compatible SpO2 adapter cables for Nellcor OxiMax sensors. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Nellcor, Philips, or any other manufacturer or supplier named on this page. Nellcor, Philips, OxiMax, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
