What Is the M1602A Compatible 5-Lead ECG Leadwire?

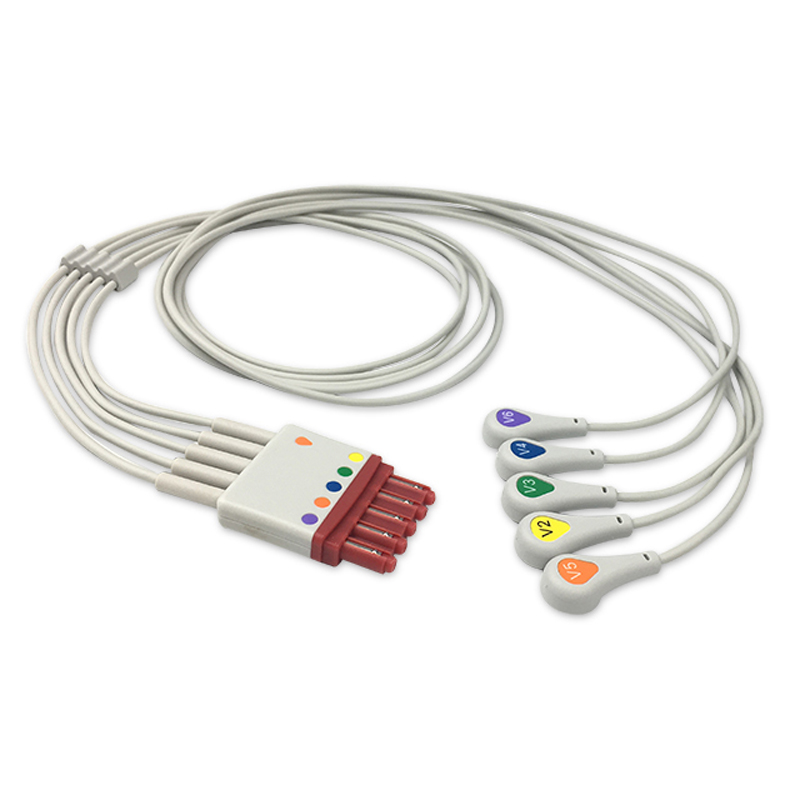

The IPR Medical EL-PHV5-90S-A is a compatible aftermarket (not OEM) 5-lead ECG leadwire that replaces OEM part M1602A. All five leads are chest leads, each ending in a snap electrode connection, and the leadwire follows AHA color coding with a 3.0 ft (0.9 m) length. It is a reusable accessory intended for ECG monitoring.

Compatible Monitor Models

Equipment from many manufacturers is named on the compatibility list for this chest leadwire. The list includes select Spacelabs models such as the 90308, 90408, and PC Bedside, select Nihon Kohden models such as the BSM-8301A and TEC-7200A, and select PaceTech models including the Vitalmax 4000 and Minipack 3000. Select Welch Allyn and Physio-Control models, such as the Propaq Encore 206EL and Lifepak 6, also appear, along with models from the other brands shown in the table. The complete list is in the Compatible Monitor Models table on the Specifications tab; please match your model there before ordering.

Design and Construction

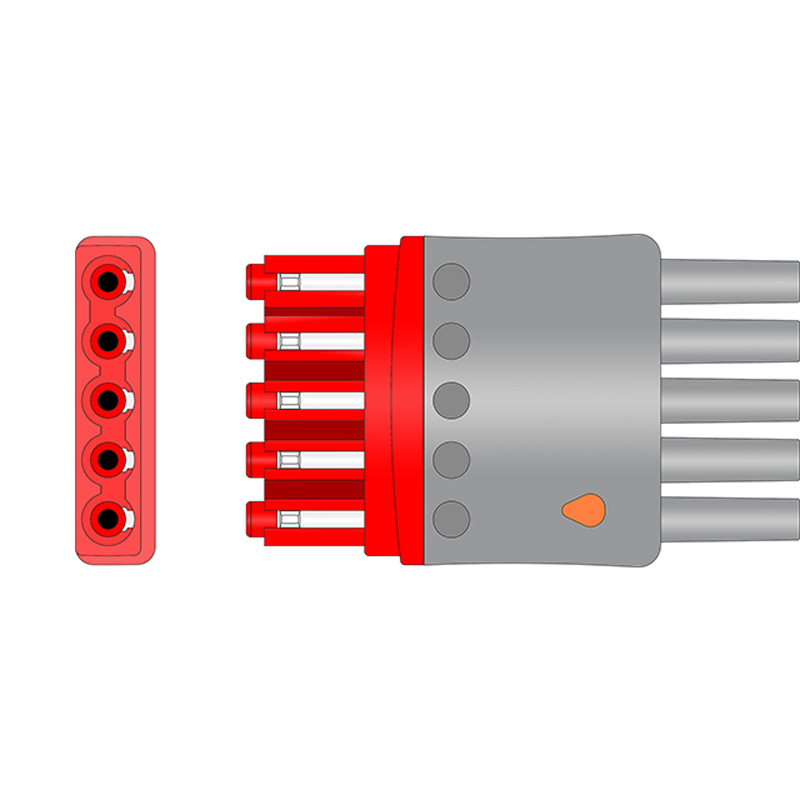

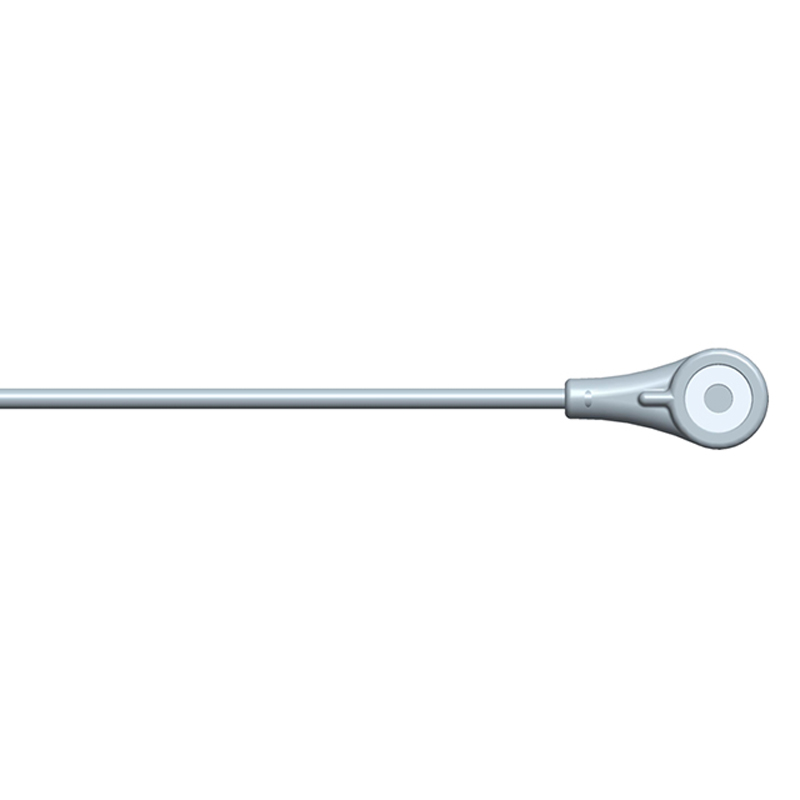

The EL-PHV5-90S-A carries five chest leads with snap electrode ends, color coded to the AHA standard. Shielded construction, a molded distal connector, and a 3.0 ft (0.9 m) cable length are listed for this set. Check the lead type shown in the Specifications table against the leadwire you are replacing. It is packed one per bag and, as a reusable leadwire, can be cleaned between patients according to facility protocol.

When to Replace Your 5-Lead Chest ECG Leadwire

Plan a replacement when a snap no longer seats firmly on the electrode stud, when the insulation on any lead is cracked, stiff, or kinked, or when the connector shows bent pins or a damaged housing. A chest lead that triggers repeated lead-off alerts, a wandering or noisy baseline on the chest lead channels, and artifact that appears when the cable is handled are also signs of wear. Testing with a known-good leadwire on the same monitor helps biomedical staff confirm whether the leadwire or the monitor is at fault.

Cross Reference and Interchange Part Numbers

Beyond OEM part M1602A, this compatible leadwire cross-references to OEM numbers 989803144911 and 989803176171. Aftermarket equivalents are grouped by brand in the Cross Reference / Interchange Part Numbers table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring equipment and infusion pumps. Our in-house technicians service and test monitors every day, so we can help you match the right chest leadwire to your equipment and keep monitors ready for patient care. For orders, repairs, or parts questions, call 855-477-8866, or browse more ECG cables and leadwires.

IPR Medical buys, sells, repairs, and stocks parts for chest ECG leadwires and the patient monitors they connect to. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Philips, or any other manufacturer or supplier named on this page. Philips, IntelliVue, HeartStart, SureSigns, Affiniti, EPIQ, Envisor, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
