What Is the Draeger 5956458 Compatible 5-Lead ECG Leadwire?

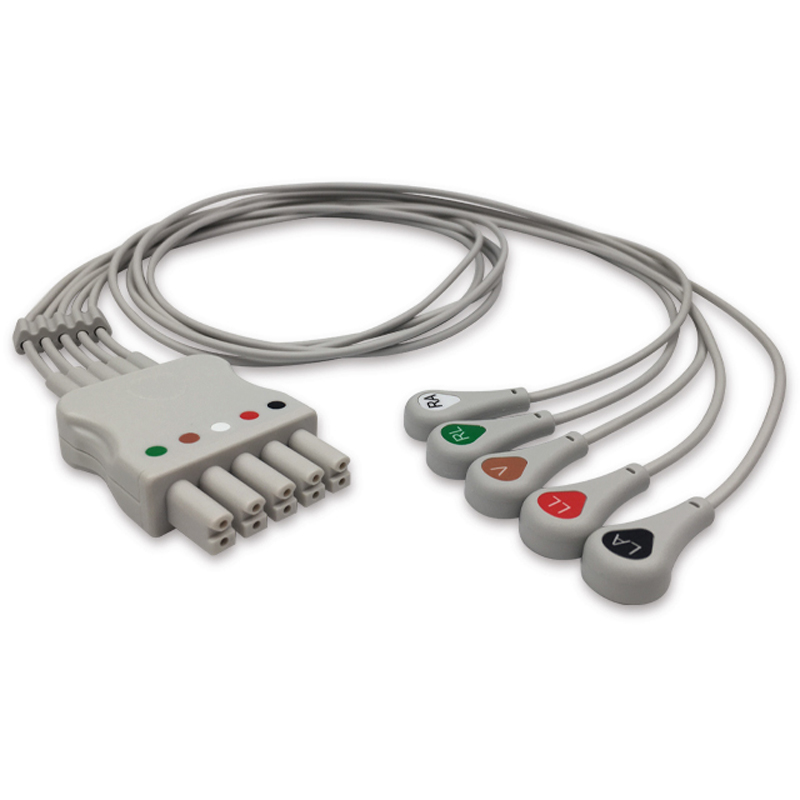

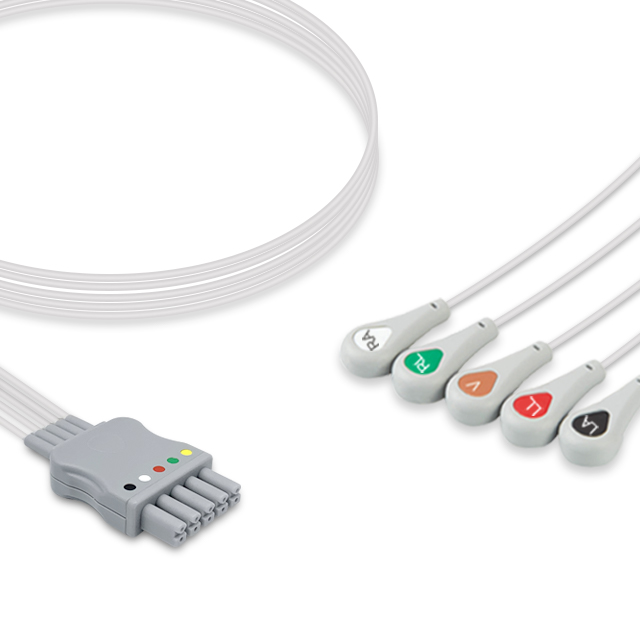

The IPR Medical EL-SM5-90S-A is a compatible aftermarket (not OEM) 5-lead ECG leadwire that replaces the Draeger 5956458 and the Siemens MS16229. Its five leads are arranged for limb and chest placement and end in snap electrode connections. Reusable and 3.0 ft (0.9 m) long, the leadwire is intended for ECG monitoring.

Compatible Monitor Models

Listed monitors span eight brands. Among them are select Draeger models such as the Infinity Delta XL, Infinity Gamma, and SC 9000; select Kontron models such as the 7135B, K2000, and Vitalmon; and select Fukuda Denshi Dynascope models. Select DRE models (ASM 6000, Trax, Vida, and Waveline), select Infinium models (Mira and Vega), select Schiller and Skanray / Larsen & Toubro models, and the Arrow AutoCAT2 complete the list. Each one appears in the Compatible Monitor Models table on the Specifications tab, which is the best place to verify your unit.

Design and Construction

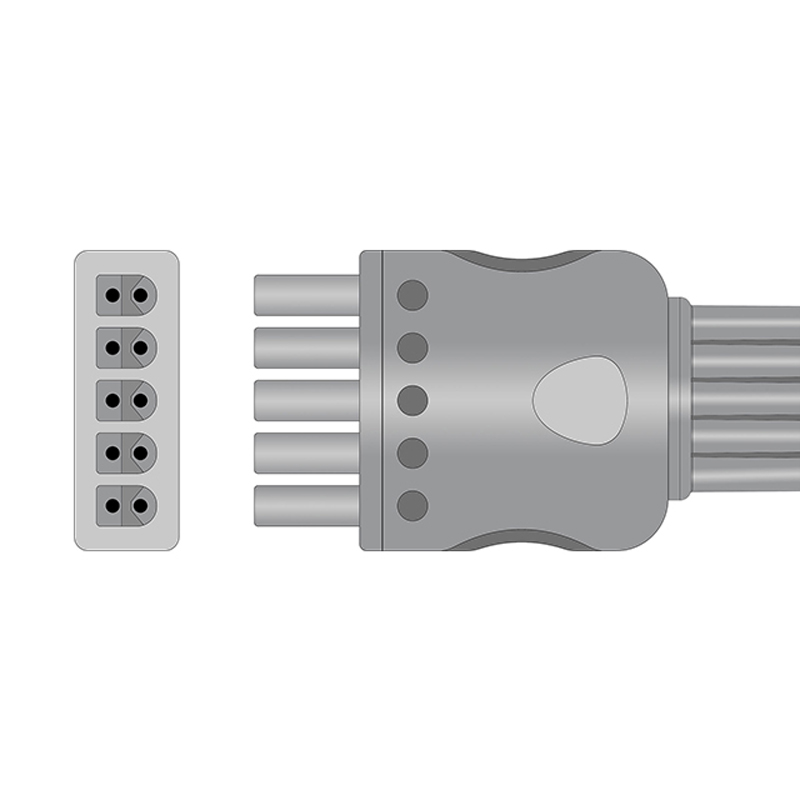

Five shielded leads, color coded to the AHA standard (RA white, LA black, LL red, RL green, V brown), end in snaps on the electrode side and meet at a molded distal connector. The lead type is Siemens Dual-Pin, and the overall length is 3.0 ft (0.9 m). This reusable leadwire is supplied one per bag and should be cleaned between patients per facility protocol.

When to Replace Your 5-Lead ECG Leadwire

Over time the snap sockets can widen and stop gripping, which is often the first problem staff notice. Inspect all five leads for cracked or discolored jacketing, check the molded connector for a broken housing or bent contacts, and note whether lead-off alarms keep pointing to the same lead. Fitting a known-good leadwire to the same monitor tells you quickly whether the leadwire is at fault.

Cross Reference and Interchange Part Numbers

Beyond Draeger 5956458 and Siemens MS16229, the remaining interchange numbers for this leadwire are aftermarket equivalents. They are organized by brand in the cross-reference table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

Hospital biomed shops and clinical teams can turn to IPR Medical, which buys, sells, repairs, and stocks parts for patient monitoring equipment and infusion pumps. We operate under ISO 9001:2015 certification as an independent service organization, and repair work stays in-house with IPR Medical technicians. Call 855-477-8866 with questions, or browse our ECG cables and leadwires.

IPR Medical buys, sells, repairs, and stocks parts for 5-lead snap ECG leadwires and the patient monitors they support. Contact us at 855-477-8866 or cs@iprmed.com.
