What Is the Draeger MS17330 Compatible SpO2 Adapter Cable?

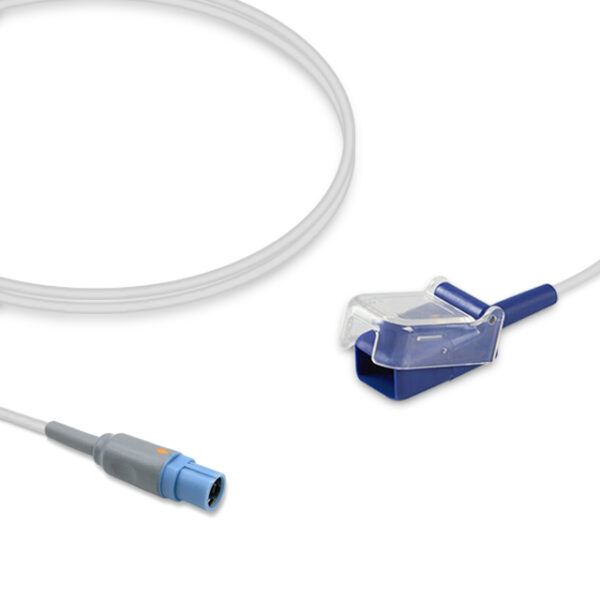

The IPR Medical SA-028X-30 is a compatible aftermarket (not OEM) SpO2 adapter cable that replaces the Draeger MS17330. Intended for use with Nellcor OxiMax sensors, it offers a 9.8 ft (3.0 m) cable and can be returned to service after each cleaning cycle.

Compatible Monitor Models

This adapter is listed for five select Draeger Infinity models: the Infinity Delta, Infinity Gamma, Infinity Kappa, Infinity Vista, and the Infinity MultiMed Pod. All five appear in the Compatible Monitor Models table on the Specifications tab, which is the place to check your equipment before ordering.

Design and Construction

Packaged one adapter per bag, the SA-028X-30 carries a 9.8 ft (3.0 m) cable intended for use with Nellcor OxiMax SpO2 technology. Since the cable is reusable, plan for routine cleaning per facility protocol and a quick look for jacket wear or connector damage whenever it moves from one patient to the next.

When to Replace Your SpO2 Adapter Cable

Take the SA-028X-30 out of service if the outer jacket shows cracks, nicks, or crush marks, if a connector housing has split, or if the strain relief no longer supports the cable where it leaves a connector. Dropouts in the saturation reading, a pulse signal that fades in and out, and persistent probe-off messages are common functional warnings. A side-by-side check with a known-good adapter separates a cable fault from a sensor or monitor issue.

Cross Reference and Interchange Part Numbers

Draeger MS17330 is the OEM number for this adapter and heads its cross-reference table. Below it, a single aftermarket equivalent completes the list, which you can review on the Specifications tab before ordering.

Why Source SpO2 Adapter Cables from IPR Medical?

Offered by IPR Medical, the SA-028X-30 is one of the patient monitoring parts the company buys, sells, repairs, and stocks, alongside parts for infusion pumps. All repair work takes place in-house at IPR Medical, an ISO 9001:2015-certified independent service organization. Reach our team at 855-477-8866, or see more options in our SpO2 sensors and cables.

IPR Medical buys, sells, repairs, and stocks parts for Draeger Infinity monitoring equipment and SpO2 accessories. Contact us at 855-477-8866 or cs@iprmed.com.
