What Is the Spacelabs 700-0006-10 Compatible 5-Lead ECG Leadwire Set?

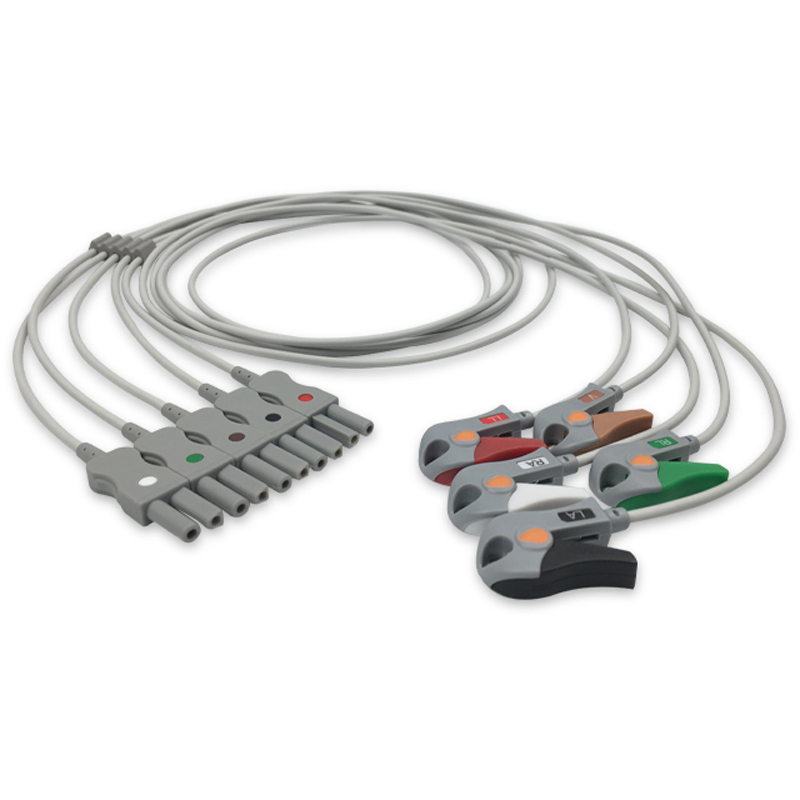

The IPR Medical EL-SLS5-90G-A is a compatible aftermarket (not OEM) 5-lead ECG leadwire set that replaces the Spacelabs 700-0006-10. This reusable set covers both limb and chest lead placement for ECG monitoring. Five individual leads with grabber/pinch ends make up the set, which is listed with a Spacelabs TruLink lead type and a 3.0 ft (0.9 m) length.

Compatible Monitor Models

Compatibility for the EL-SLS5-90G-A centers on select Spacelabs models. Among them are the 91369, 91496, and 93300, as well as the 91220 mCare 300 and entries for the Elance Series and Ultraview SL. Every entry is reproduced as listed in the compatibility table on the Specifications tab, so you can compare it line by line with the model label on your monitor.

Design and Construction

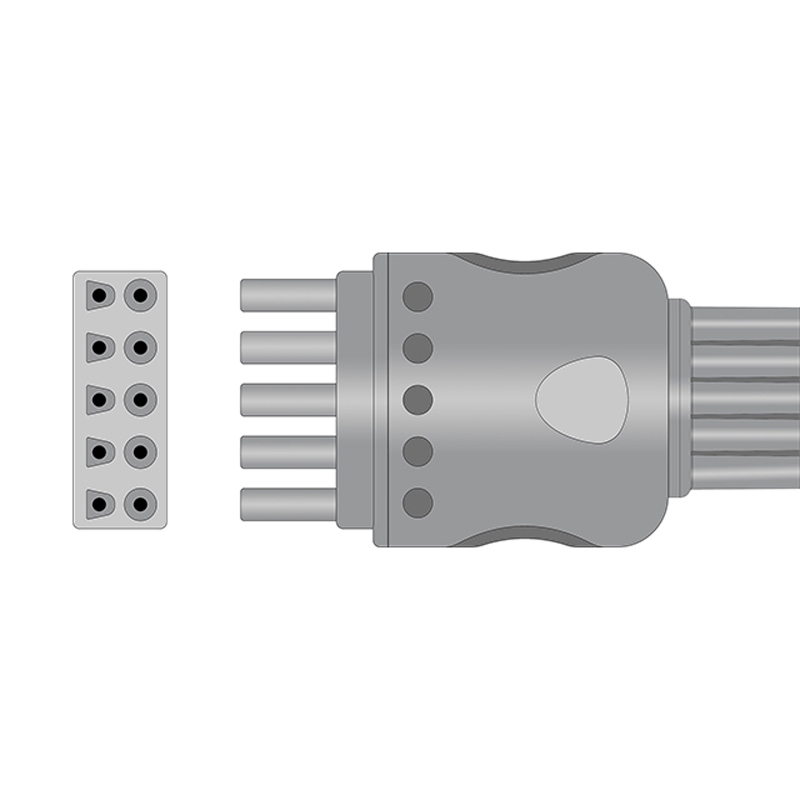

Following the AHA standard, the five leads are colored RA white, LA black, LL red, RL green, and V brown, which makes limb and chest positions easy to tell apart. Every lead terminates in a grabber/pinch connection. The specifications list an Individual distal connector, shielded leads, and a Spacelabs TruLink lead type. At 3.0 ft (0.9 m) long, the reusable set arrives one set per bag and should be cleaned between patients following facility protocol.

When to Replace Your 5-Lead ECG Leadwire Set

Plan on a replacement when a grabber no longer holds the electrode firmly or a lead shows cuts, kinks, or stiff, cracked insulation. A chest or limb channel that keeps dropping out, a wandering baseline, and motion artifact that clears up once a different set is connected are strong signs of a broken conductor. Inspect all five leads at each cleaning, and take the set out of service if any one of them is damaged.

Cross Reference and Interchange Part Numbers

In addition to Spacelabs 700-0006-10, the OEM number Spacelabs 700-0006-08 cross-references to this set. Four aftermarket equivalents complete the picture, and you will find each of them under its brand in the cross-reference table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

A 5-lead set that keeps dropping a channel can take a monitor out of service until it is replaced. As an independent service organization certified to ISO 9001:2015, we buy, sell, repair, and stock parts for patient monitoring equipment and infusion pumps, and our technicians handle every repair in-house. Shop our ECG cables and leadwires or reach the team at 855-477-8866.

IPR Medical buys, sells, repairs, and stocks parts for 5-lead ECG leadwire sets and the Spacelabs monitors they serve. Contact us at 855-477-8866 or cs@iprmed.com.
