What Is the Spacelabs 700-0007-08 Compatible 5-Lead ECG Leadwire Set?

The IPR Medical EL-SLS5-90S-A is a compatible aftermarket (not OEM) 5-lead ECG leadwire set that replaces the Spacelabs 700-0007-08. Intended for ECG monitoring with both limb and chest leads, the set connects to electrodes through snap ends on five individual leads. It is reusable, 3.0 ft (0.9 m) long, and carries a Spacelabs TruLink lead type.

Compatible Monitor Models

Select Spacelabs models make up the whole compatibility list for this set, including the 90369, 93300, and Elance Series. Ultraview SL, the 91220 mCare 300, and several other model numbers are listed as well. Because some entries are close variations of one another, look for your exact model designation in the compatibility table on the Specifications tab.

Design and Construction

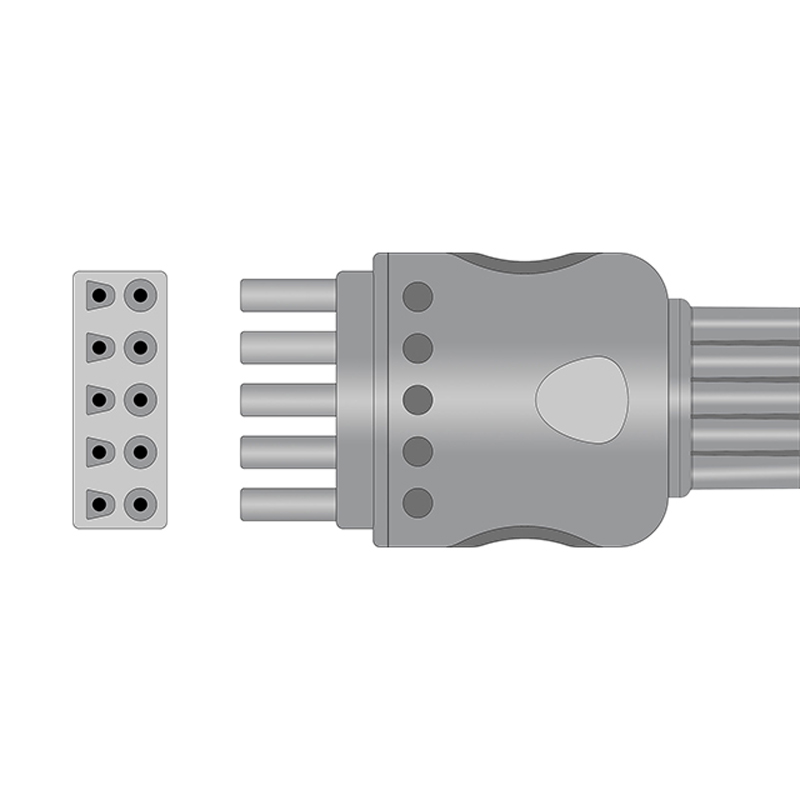

The set’s five snap-end leads use AHA colors (RA white, LA black, LL red, RL green, V brown) to mark limb and chest positions. Shielding is listed as a feature, the distal connector is Individual, and the lead type is Spacelabs TruLink. Length comes to 3.0 ft (0.9 m). After cleaning per facility protocol, the reusable set can go back into service; each bag holds one set.

When to Replace Your 5-Lead ECG Leadwire Set

Watch for snaps that have lost their grip, leads that are twisted or cut, and insulation that has turned brittle with repeated disinfection. A lead-off alarm that clears when a lead is wiggled, or artifact confined to the chest channel, usually means a single conductor has failed. Since a set is only as reliable as its weakest lead, check all five at every cleaning.

Cross Reference and Interchange Part Numbers

This set replaces Spacelabs 700-0007-08, and Spacelabs 700-0007-10 also cross-references to it. Four more numbers, one each from four other brands, are listed in the cross-reference table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

IPR Medical sells this set as part of its range of compatible ECG accessories. Our in-house technicians handle the repairs, and as an ISO 9001:2015-certified independent service organization we also buy, sell, and stock parts for patient monitors and infusion pumps. Browse ECG cables and leadwires, or place an order by phone at 855-477-8866.
