Infusion Pump Repair

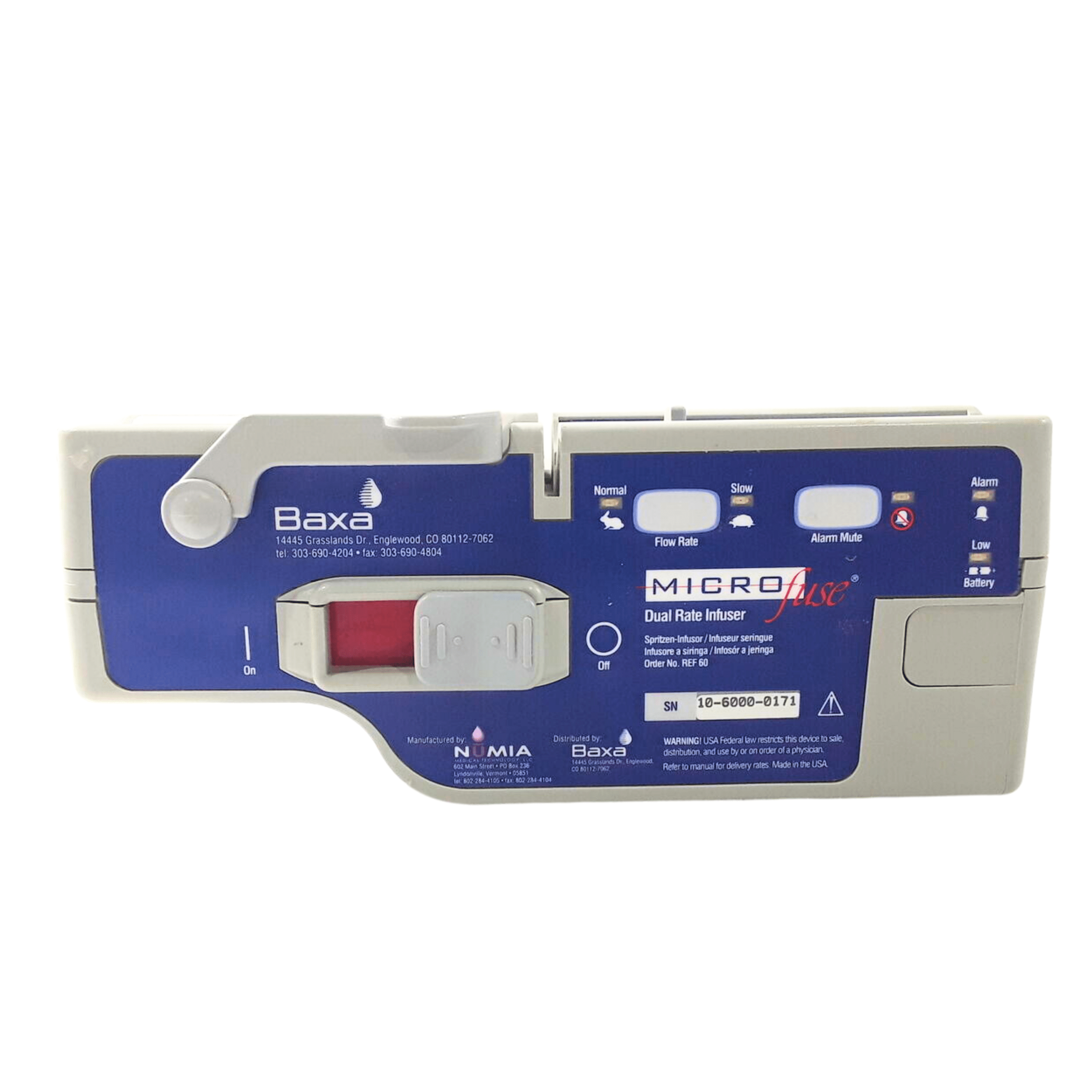

Baxa Microfuse Dual Rate

$995.00

The Baxa MicroFuse Dual Rate Infuser is designed for small volume infusions (SVI) of intravenous fluids. It delivers fluids diluted in 1 to 100 mL volumes over 1 to 120 minutes intermittently. Using syringe infusion, it offers an efficient alternative to gravity and minibag IV systems. The MicroFuse Infuser provides reliable, fixed-rate infusion, ensuring consistent medication delivery. It utilizes cost-effective materials, reducing waste and setup time. This system minimizes administration labor, enhancing clinical efficiency. Its compact design is ideal for precise and controlled small volume infusions. Overall, the Baxa MicroFuse Dual Rate Infuser is a dependable and efficient solution for SVI needs.



Send In Baxa Microfuse Dual Rate for Repair
  • Dimensions: 4 in (10.2 cm) x 2.7 in (6.9 cm) x 9.6 in (24.4 cm)
  • Weight: 35 oz. (0.7 kg)
  • Syringes – 5 to 140 cc
    • Compatible Syringes: BD, Monoject, and Terumo disposable syringes
  • Flow Rates
    • Infusion Rates: Normal: 5.5 in/hr (14 cm/hr); Slow: 1.8 in/hr (4.7 cm/hr)
    • Delivery Times: Normal: 20 to 40 minutes; Slow: 60 to 120 minutes
    • Maximum Bolus Volume After Occlusion: > 3mL with 1400 syringe
    • Maximum Infusion Upon Fault: Limited to volume of syringe

    Battery

    • Accuracy of Flow Rate: 3% over 1.18 in (2.997 cm)
    • Type: 2 C-cell, Alkaline only
    • Battery Life: 400 hours of operation typical, 10 hours typical at low battery indication

Baxa Microfuse Dual Rate

Here are the specifications of Baxa Microfuse Dual Rate Infusion Pump Repair

  • Durable solid body construction with secure motor attachment.
  • Easy-to-use simple push-button controls.
  • Portable, lightweight, and slender profile.
  • Reliable and low maintenance, with built-in safety features.
  • Operates on 2 standard alkaline C-cell batteries.
  • Average life of 400 hours.
  • Injection-molded plastic housing, battery cover, syringe driver arm, and syringe holder

Mounting Options

  • Built-in wire hanger
  • Optional IV Pole Clamp

description :

The Baxa Microfuse Dual Rate Infuser is intended for small volume infusion (SVI) of intravenous fluids. It is designed to deliver fluids that are diluted in 1 to 100 mL volumes and given intermittently over 1 to 120 minutes. Syringe infusion provides an alternative to gravity and minibag IV systems. The Microfuse Infuser deliver reliable, fixed-rate infusion using less costly materials, reducing waste and setup and administration labor.

  • Durable solid body construction with secure motor attachment.
  • Easy-to-use simple push-button controls.
  • Portable, lightweight, and slender profile.
  • Reliable and low maintenance, with built-in safety features.
  • Operates on 2 standard alkaline C-cell batteries.
  • Average life of 400 hours.
