What Is the Mindray 6200-30-09688 Compatible NIBP Air Hose?

The Mindray 6200-30-09688 compatible NIBP air hose (SKU BPH-AS25-07-02M) is a reusable, aftermarket replacement (not OEM) for the single-tube noninvasive blood pressure hose used between a patient monitor and an adult or pediatric blood pressure cuff. One end plugs into the monitor’s NIBP port, and the other end takes a single-tube cuff with a bayonet-style connector. The hose is 8.2 ft (2.5 m) long; the OEM 6200-30-09688 is 10 ft (3.0 m).

Compatible Equipment

This hose is compatible with a wide range of monitors that use a single-tube NIBP port, including the Mindray and Datascope Passport 8, 12, 12m and 17m, DPM 6 and DPM 7, Accutorr 3 and 7, BeneView T-series, BeneVision N-series, ePM, iMEC, iPM, uMEC, cPM, BeneHeart D3 and D6, and VS 8, VS 9, and VS 900 models. It is also compatible with many Philips IntelliVue, SureSigns, Efficia, and Avalon monitors, plus select Edan, Biolight, Comen, Midmark, Penlon, Sinohero, Venni, Zoncare, and Advanced Instrumentations models. The exact models are listed in the Specifications tab.

Design and Construction

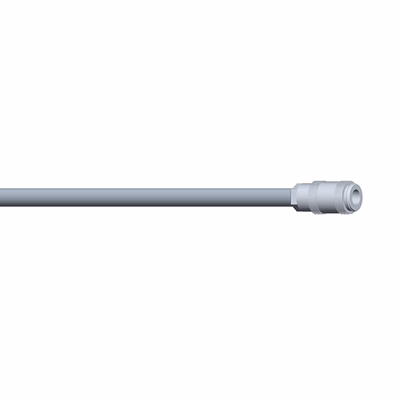

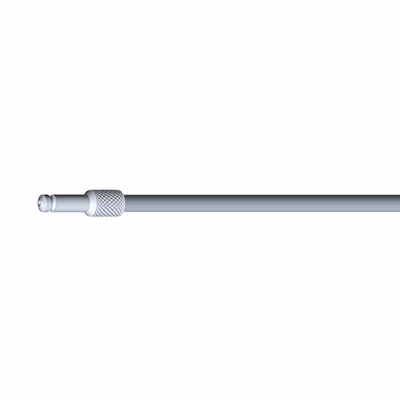

The monitor end is a 0.24 in (6.0 mm) male mono plug, and the cuff end is a metal, female, quick-disconnect bayonet connector for single-tube bayonet cuffs. The gray PVC hose has an inner diameter of 0.12 in (3.1 mm) and an outer diameter of 0.23 in (5.8 mm), is latex-free, and is sized for adult and pediatric cuffs. It is reusable and ships one per bag.

When to Replace Your NIBP Air Hose

Replace the hose when the monitor reports air leaks, slow inflation, or cuff-overpressure or kinked-hose errors that clear with a known-good hose. Cracked or loose connectors, worn bayonet latches, pinholes, kinks, or hardened tubing are also reasons to retire the hose. Swapping in a known-good hose is a quick way for biomedical staff to separate a hose leak from a cuff or monitor NIBP module fault.

Cross Reference and Interchange Part Numbers

This hose interchanges with Mindray / Datascope 6200-30-09688, CM1903, and 115-012522-00, Philips M1599A, M1599B, M1598B, 989803104341, and 989803104331, Edan 01.59.473007, 01.59.473007-10, and M13-36036+MS1-30437, and Biolight 15-031-0008. It also cross-references AMC HO-S16158-10 and Sage H01-16-15. Lengths vary across these part numbers; this hose is 8.2 ft (2.5 m).

Why Source Compatible NIBP Hoses from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for Mindray, Datascope, and other patient monitors, so our team can help match NIBP hoses and cuffs to the monitors in your fleet. Our in-house technicians repair and refurbish monitoring equipment, and we keep compatible NIBP hoses and other monitoring accessories in stock to keep units in service. Browse more NIBP hoses and accessories or contact us for help confirming the right part.

IPR Medical buys, sells, repairs, and stocks parts for Mindray, Datascope, and other patient monitors, including compatible NIBP hoses. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by Datascope, Mindray, Masimo, Philips, or any other manufacturer or supplier named on this page. Datascope, Mindray, Masimo, Philips, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
