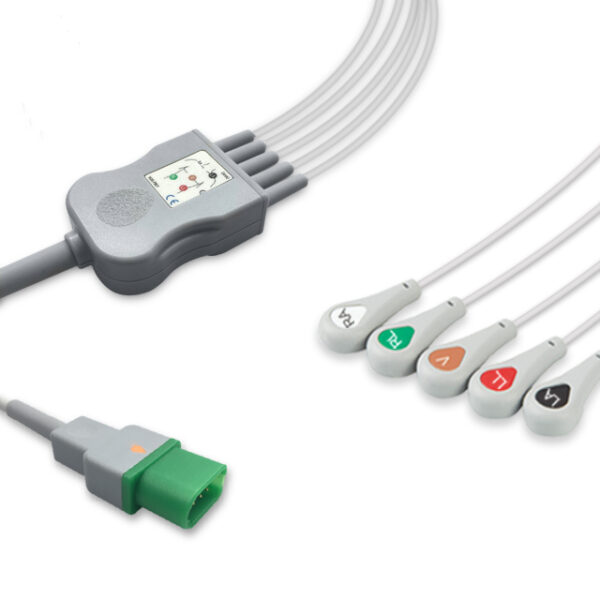

What Is the Mindray 0012-00-1156-01 Compatible 5-Lead One-Piece ECG Cable?

The Mindray 0012-00-1156-01 compatible 5-lead one-piece ECG cable (SKU EC-5018RS-A) is a reusable, aftermarket replacement (not OEM). The trunk cable and five AHA-coded limb and chest leads (RA white, LA black, RL green, LL red, V brown) are built as a single assembly, so there is no separate leadwire set to connect. The trunk is 8.2 ft (2.5 m) and the leads are 3 ft (0.9 m), for a total reach of about 11.2 ft (3.4 m).

Compatible Monitor Models

This cable is compatible with the Mindray Passport V, V12, and V21 and the Datascope V-Series, V12, and V21 monitors. The full list is in the Specifications tab.

Design and Construction

The cable is defibrillation-proof with built-in resistors, and each lead ends in a snap that attaches to standard snap electrodes. The one-piece design leaves no trunk-to-leadwire junction to loosen or contaminate. It is reusable and ships one per bag.

When to Replace Your One-Piece ECG Cable

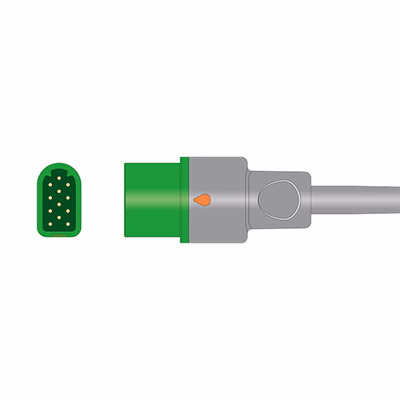

Replace the cable when ECG traces show noise, baseline wander, or intermittent lead-off alarms that appear or clear when the cable is flexed, since these usually point to a broken conductor inside the trunk or a lead. Because the trunk and leads are a single assembly, damage anywhere along the cable, such as a split jacket, a damaged monitor-end connector, loose or corroded snaps, or faded color bands, means the whole cable should be retired. Swapping in a known-good cable is a quick way for biomedical staff to separate a cable fault from a monitor ECG input fault.

Cross Reference and Interchange Part Numbers

This cable interchanges with Mindray 0012-00-1156-01. Contact IPR Medical with your monitor model or existing cable part number and we will confirm the match.

Why Source Mindray-Compatible ECG Cables from IPR Medical?

IPR Medical buys, sells, repairs, and stocks parts for Mindray and Datascope patient monitors, so our team can help match ECG cables to the monitors in your fleet. Our in-house technicians repair and refurbish monitoring equipment, and we keep compatible ECG cables and other monitoring accessories in stock to keep units in service. Browse more ECG cables and leadwires or contact us for help confirming the right part.

IPR Medical buys, sells, repairs, and stocks parts for Mindray and Datascope patient monitors, including compatible ECG cables. Contact us at 855-477-8866 or cs@iprmed.com.
