What Is the Mindray 115-020768-00 Compatible SpO2 Adapter Cable?

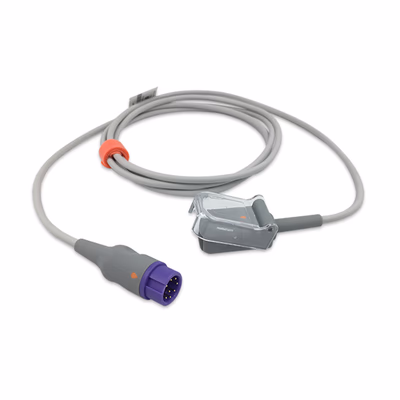

The Mindray 115-020768-00 compatible SpO2 adapter cable is a reusable, aftermarket extension cable that connects a Masimo LNCS pulse oximetry sensor to a Mindray or Datascope monitor equipped with Masimo SpO2. The sensor on the patient’s finger, toe, or other site plugs into the end of this cable, and the cable carries the signal to the monitor’s SpO2 port for continuous oxygen saturation and pulse rate monitoring. Because the adapter cable is reusable and separate from the sensor, facilities can replace disposable or reusable LNCS sensors on their own without replacing the whole cable. It is a compatible replacement, not an original Mindray or Masimo part, and it is built to the same fit, form, and function as the OEM 115-020768-00 cable.

Compatible Monitor Models

This compatible cable is confirmed for use with a wide range of Mindray and Datascope monitors equipped with Masimo SET or Masimo Rainbow SpO2. That includes the BeneVision N1, N12, N15, N17, N19, and N22; the BeneView T1, T5, T6, T8, and T9; the BeneHeart D2, D3, and D6 defibrillator/monitors; the Passport 8, 12, 12m, and 17m; the iPM and iMEC Series; the ePM and cPM Series; the Accutorr 3 and 7 and VS 8 vital signs monitors; and the Datascope DPM 6, DPM 7, MEC 12, MPM, and PM 6800. Many Mindray monitors are also sold with Mindray’s own SpO2 technology or with Nellcor, and those configurations use different cables. Check that your monitor shows the Masimo SpO2 option before ordering.

Design and Construction

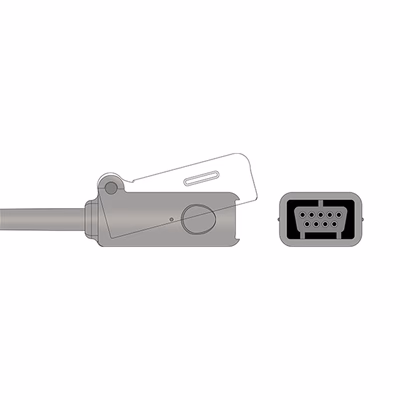

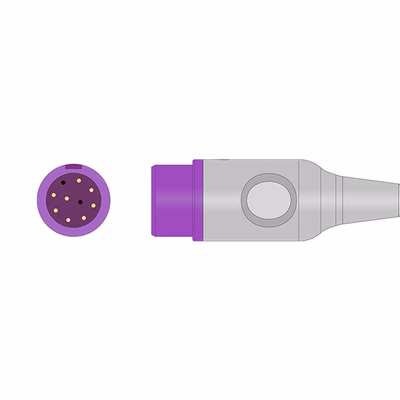

The cable runs 7.9 ft (2.4 m) from the monitor to the sensor connection, which gives enough reach for bedside, transport, and OR setups. The monitor end has a keyed male 8-pin round connector that seats in the Masimo SpO2 port only in the correct orientation. The sensor end has a triple-keyed female 9-pin D-sub connector that accepts Masimo LNCS sensors and holds them securely during patient movement. The white cable is latex-free, non-sterile, reusable after cleaning according to facility protocol, weighs about 0.4 lbs, and ships one per bag.

When to Replace Your Mindray SpO2 Adapter Cable

SpO2 adapter cables flex constantly at both connectors and are often looped around bed rails or pinched in drawers and equipment carts. Replace the cable when you see “SpO2 sensor off,” “no sensor,” or “cable fault” messages with a known-good sensor, when readings drop out or the pleth waveform becomes noisy as the cable is moved, or when you find a cracked jacket, a loose or wobbly D-sub latch, or bent or recessed connector pins. Testing with a known-good sensor and a second cable quickly shows whether the cable, the sensor, or the monitor is at fault.

Cross Reference and Interchange Part Numbers

This compatible Masimo LNCS SpO2 adapter cable, IPR Medical SKU SA-053RB-24LS, cross-references to Mindray part numbers 115-020768-00, 040-000332-00, and 101256, and to Masimo part numbers LNC MR and LNC-10-MR. It also interchanges with Unimed U708M-48R. Materials managers and purchasing staff can use any of these numbers to confirm the match against existing inventory, work orders, or requisitions. Contact IPR Medical if you are replacing a part number not listed here or need a longer cable.

Why Source SpO2 Cables from IPR Medical?

IPR Medical is an ISO 9001:2015-certified independent service organization that buys, sells, repairs, and stocks parts for patient monitoring and infusion equipment. Our compatible SpO2 cables and sensors give biomedical departments an affordable alternative to OEM accessories while matching OEM fit and function across Mindray and Datascope fleets. Our team can help confirm which SpO2 technology your monitors use, match the right cable and sensor, and support your equipment with in-house repair services.
