What Is the Physio-Control 11110-000029 Compatible 3-Lead One-Piece ECG Cable?

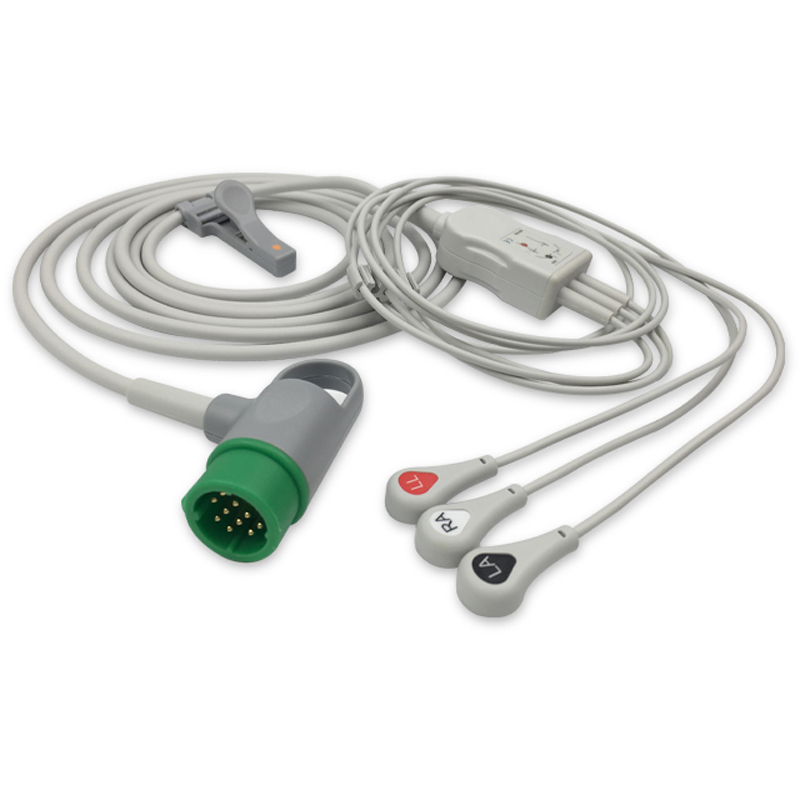

The IPR Medical EC-3039RS-A is a compatible aftermarket (not OEM) 3-lead one-piece ECG cable that replaces the Physio-Control 11110-000029. Its three limb leads are built into the cable itself, so the leads and the main cable arrive and are used as one assembly, and each lead ends in a snap electrode connection. AHA color coding applies to the leads, the cable can be reused, and a defib-proof feature is listed for monitoring.

Compatible Monitor Models

On the compatibility side, the EC-3039RS-A is listed for select Physio-Control models, specifically the Lifepak 11 and Lifepak 12 along with the Lifepak 15, 20, and 20E. The Compatible Monitor Models table on the Specifications tab carries the same list, and it is worth checking your model there before you order.

Design and Construction

Three leads for limb placement each terminate in a snap, and under the AHA color code they are RA white, LA black, and LL red. Its length, 8.2 ft + 3.0 ft (2.5 m + 0.9 m), and a defib-proof feature for monitoring use are both recorded in the Specifications table. One cable ships per bag, and between patients it should be cleaned according to facility protocol so it can be reused.

When to Replace Your 3-Lead One-Piece ECG Cable

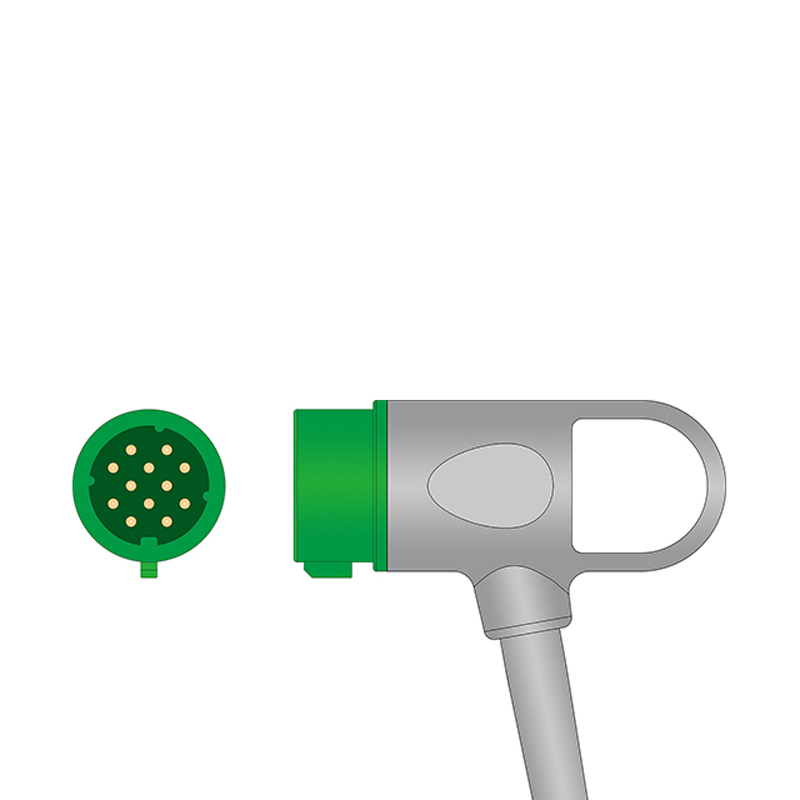

Because the leads are part of the cable, wear on any single lead means the whole assembly is due for replacement. Common reasons include a snap that no longer holds the electrode, a cracked or kinked jacket on the main cable or a lead, and bent pins or a broken housing at the monitor connector. Traces that drop out or turn noisy when the patient moves, and lead-off alerts that persist with new electrodes, also point to a worn cable; a known-good cable on the same monitor confirms it.

Cross Reference and Interchange Part Numbers

Physio-Control 11110-000029 is the primary OEM number for this cable, and OEM numbers 3006218-06 and 3006218-02 also cross-reference to it. Four aftermarket brands contribute interchange numbers as well, and each one is recorded with its brand in the cross-reference table on the Specifications tab.

Why Source One-Piece ECG Cables from IPR Medical?

Parts for patient monitors and infusion pumps are what IPR Medical buys, sells, repairs, and stocks, and the company holds ISO 9001:2015 certification as an independent service organization. Repairs are completed in-house by IPR Medical technicians. Call 855-477-8866 to order the EC-3039RS-A or to discuss a repair, or see more ECG cables and leadwires.
