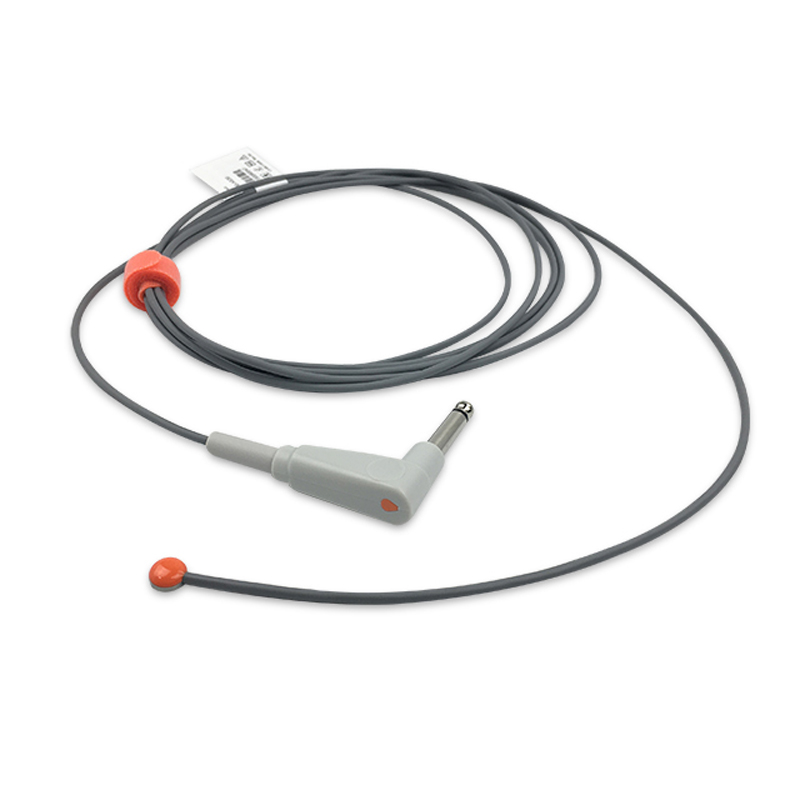

What Is the YSI 409B Compatible Adult Skin Surface Temperature Probe?

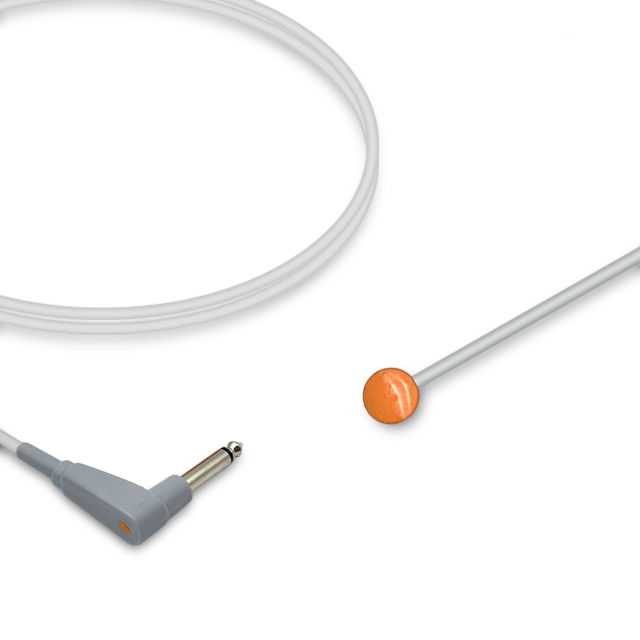

The IPR Medical TS-Y400-AS30 is a compatible aftermarket (not OEM) adult skin surface temperature probe that replaces the YSI 409B. In place of a tip it has a 0.35 in (9.0 mm) probe disc, and it uses 400 Series temperature technology on a 9.8 ft (3.0 m) cable. It is a reusable probe.

Compatible Monitor Models

Nihon Kohden entries make up the longest part of this probe’s compatibility list, including select Nihon Kohden BSM models such as the BSM-3562, BSM-5105, and BSM-9510 Life Scope M. Select Zoll models such as the X Series and Thermogard Xp and select Welch Allyn models such as the Atlas are listed too, as is the Spacelabs 93300 eLance Series. Check the Compatible Monitor Models table on the Specifications tab for your exact model and for the many other brands it includes.

Design and Construction

The 0.35 in (9.0 mm) disc is designed for skin surface measurement on adult patients. The cable runs 9.8 ft (3.0 m), and the probe uses 400 Series temperature technology. It is supplied one per bag; clean it between patients following facility protocol, with attention to the disc and the length of the cable.

When to Replace Your Adult Skin Surface Temperature Probe

Swap out the skin probe once the disc shows cracks or begins to separate from the cable, or when the cable is cut, kinked, or frayed. Skin temperature values that drift, or that drop out when the cable is moved, also point to a worn probe. Trying a skin probe you know is good on the same monitor will confirm the diagnosis.

Cross Reference and Interchange Part Numbers

Along with the YSI 409B and YSI 85409, this probe cross-references to OEM numbers such as Welch Allyn 008-0229-00 and 008-0451-00, Spacelabs 690-0028-00 and 690-0295-00, Zoll 8000-0670, and Datex-Ohmeda 16560 and M1024254. Biolight, Edan, Fukuda Denshi, Nihon Kohden, and the remaining brands are covered in the cross-reference table on the Specifications tab, along with aftermarket equivalents.

Why Source Skin Temperature Probes from IPR Medical?

Skin probes are handled and cleaned between every patient, which gradually wears the disc and cable. IPR Medical’s work covers buying, selling, and stocking parts for patient monitoring equipment and infusion pumps, along with in-house repairs by our own technicians; the company is an ISO 9001:2015-certified independent service organization. Explore more temperature probes and cables, or call 855-477-8866 for ordering help.

IPR Medical buys, sells, repairs, and stocks parts for skin surface temperature probes and the patient monitors they support. Contact us at 855-477-8866 or cs@iprmed.com.

Trademark Notice: This is a compatible aftermarket product. It is not manufactured, sold, licensed, or endorsed by YSI, Philips, Nellcor, or any other manufacturer or supplier named on this page. YSI, Philips, Nellcor, OxiMax, Tempus Pro, and all other brand names, model names, and part numbers shown are trademarks of their respective owners and are used on this page only to identify the equipment this product is compatible with and the OEM parts it can replace, consistent with nominative fair use. IPR Medical is an ISO 9001:2015-certified independent service organization; references to OEM equipment describe the equipment we sell, service, and support, and do not indicate any affiliation with, sponsorship by, or endorsement from its manufacturer.
