What Is the Physio-Control 11110-000103 Compatible 6-Lead ECG Leadwire?

The IPR Medical EL-MDBV6-90S-A is a compatible aftermarket (not OEM) 6-lead ECG leadwire that replaces the Physio-Control 11110-000103. All six of its leads are designated for chest placement, and every lead terminates in a snap electrode end. It is reusable, follows AHA color coding, measures 3.0 ft (0.9 m), and is intended for ECG monitoring.

Compatible Monitor Models

Physio-Control’s Lifepak 11, Lifepak 12, Lifepak 15, Lifepak 20, and Lifepak 20E are the select models named for this 6-lead chest leadwire. Those five models make up the Compatible Monitor Models table on the Specifications tab, so confirm that your unit is among them before you place an order.

Design and Construction

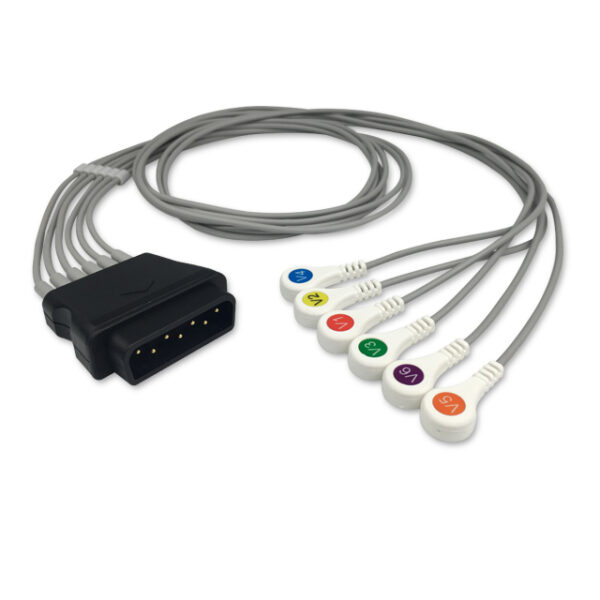

Six chest leads with snap electrode ends meet at a molded distal connector, and the leadwire is listed as shielded. Lead colors follow the AHA convention, and the specified length is 3.0 ft (0.9 m). The Lead Type row of the Specifications table reads Physio-Control, which is the detail to compare against the leadwire you are replacing. Each leadwire comes one per bag and is reusable; clean it between patients according to your facility protocol.

When to Replace Your 6-Lead Chest ECG Leadwire

Chest lead trouble usually shows up on the monitor before it is visible on the cable: one chest trace that turns noisy or flat, lead-off messages that come back after the electrode is changed, or artifact every time the patient shifts. At the bedside, look for snaps that have loosened, insulation that is split or hardened, and a distal connector with cracks or bent pins. Moving the same patient to a known-good leadwire is a quick way to tell a leadwire fault from a monitor fault.

Cross Reference and Interchange Part Numbers

Physio-Control 11110-000103 is the primary OEM reference for the EL-MDBV6-90S-A, and Physio-Control 805265-04 cross-references to the same leadwire. Two aftermarket equivalents, each under its own brand, sit alongside those OEM numbers in the cross-reference table on the Specifications tab.

Why Source ECG Leadwires from IPR Medical?

Leadwires like this one are part of a broader parts business: IPR Medical buys, sells, repairs, and stocks components for patient monitoring equipment and infusion pumps, and holds ISO 9001:2015 certification as an independent service organization. Every repair is carried out in our own facility by IPR Medical technicians. To order this leadwire or ask about a repair, call 855-477-8866, or browse more ECG cables and leadwires.

IPR Medical buys, sells, repairs, and stocks parts for 6-lead chest ECG leadwires and the patient monitors they connect to. Contact us at 855-477-8866 or cs@iprmed.com.
