What Is the SY0003 Veterinary IV Administration Set?

The SY0003 is a compatible, sterile, single-use IV administration set engineered for veterinary infusion pump use. Designed to deliver medical solutions directly into a patient’s bloodstream via vein, this set provides reliable, pump-controlled fluid administration in veterinary clinical environments. Manufactured to ISO 13485 quality standards and certified DEHP-free, latex-free, and non-pyrogenic, the SY0003 is appropriate for veterinary clinics, emergency animal hospitals, and veterinary teaching facilities requiring a high-quality, safety-conscious administration set.

Compatible Infusion Pumps

The SY0003 administration set is compatible with all IPR Medical veterinary IV infusion pumps, including the Petite, Petite Heat, and Snippet. These pump platforms are designed for precise fluid delivery in veterinary clinical environments, and the SY0003 is the recommended compatible administration set for standard IV fluid therapy across the full IPR Medical veterinary pump lineup.

Design and Construction

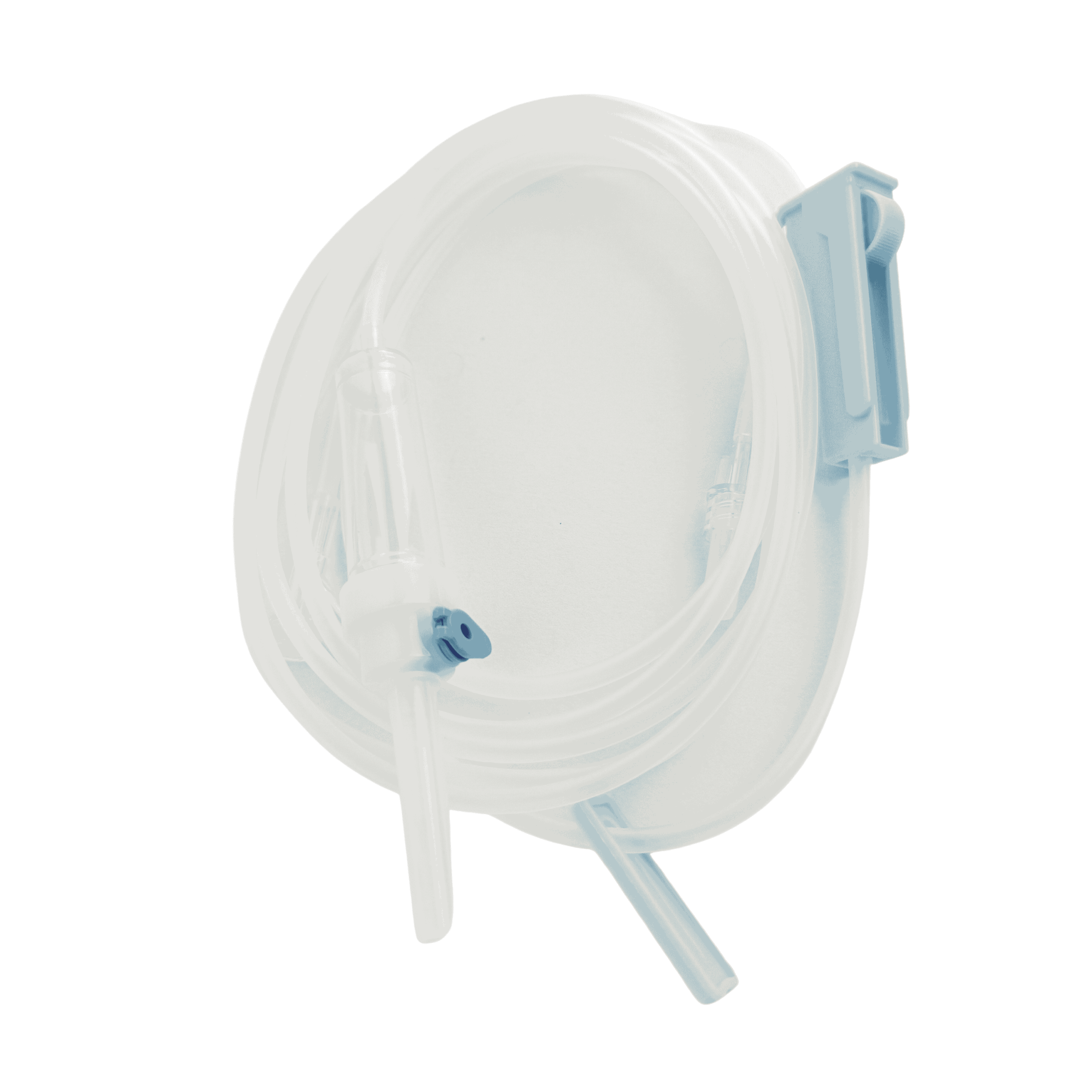

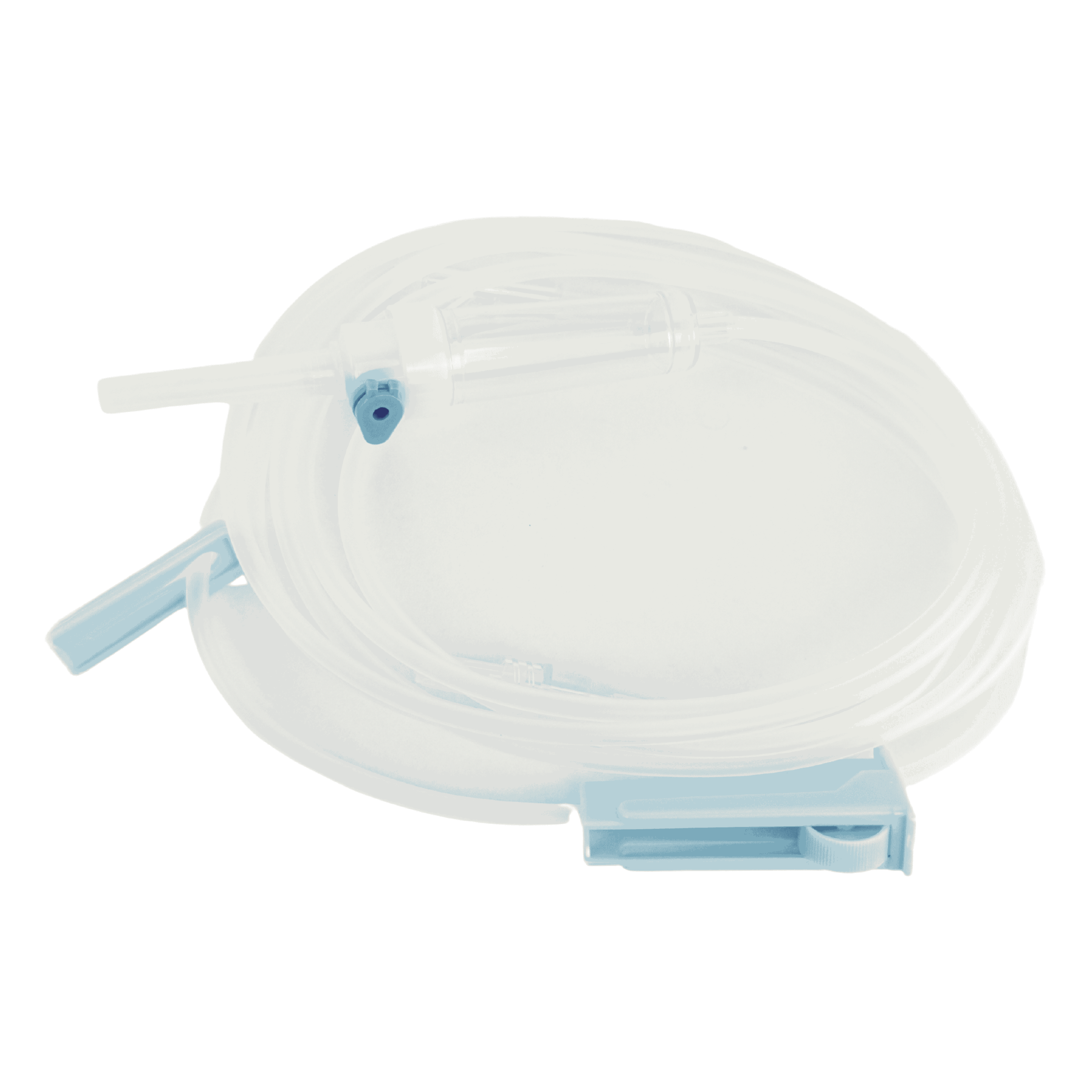

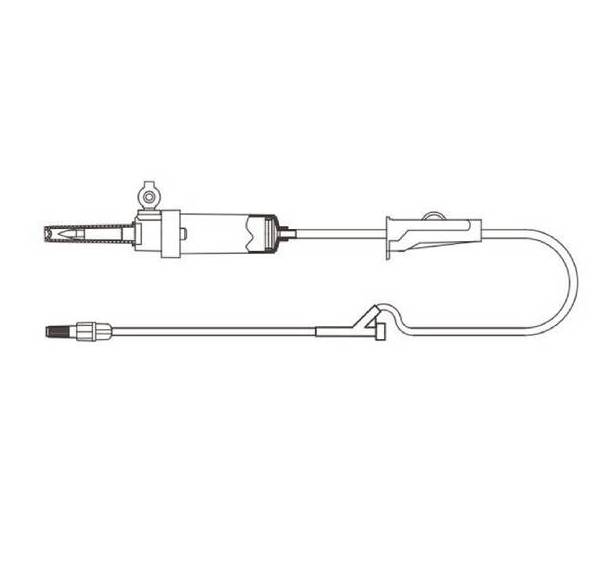

The SY0003 set measures 91 inches (approximately 7.6 feet) in total length, providing generous reach for a wide range of veterinary pump-to-patient configurations. The set opens with a vented spike incorporating a 5 micron hydrophobic air inlet filter, which prevents airborne contaminants from entering the fluid path while allowing necessary venting of the IV bag. A standard drip chamber follows, enabling visual confirmation of flow rate during infusion. An integrated 15 micron inline fluid filter further protects the patient from particulate matter present in the solution.

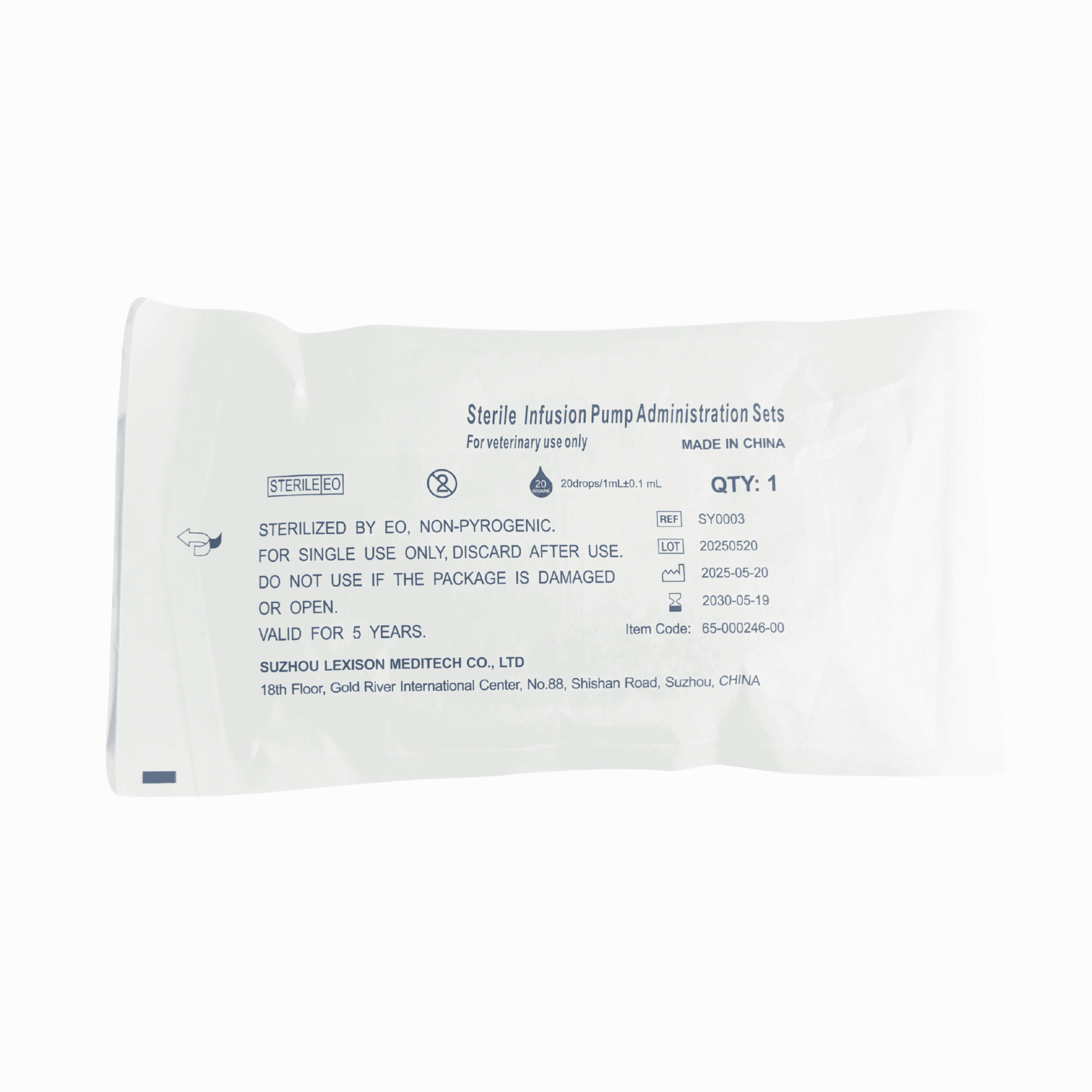

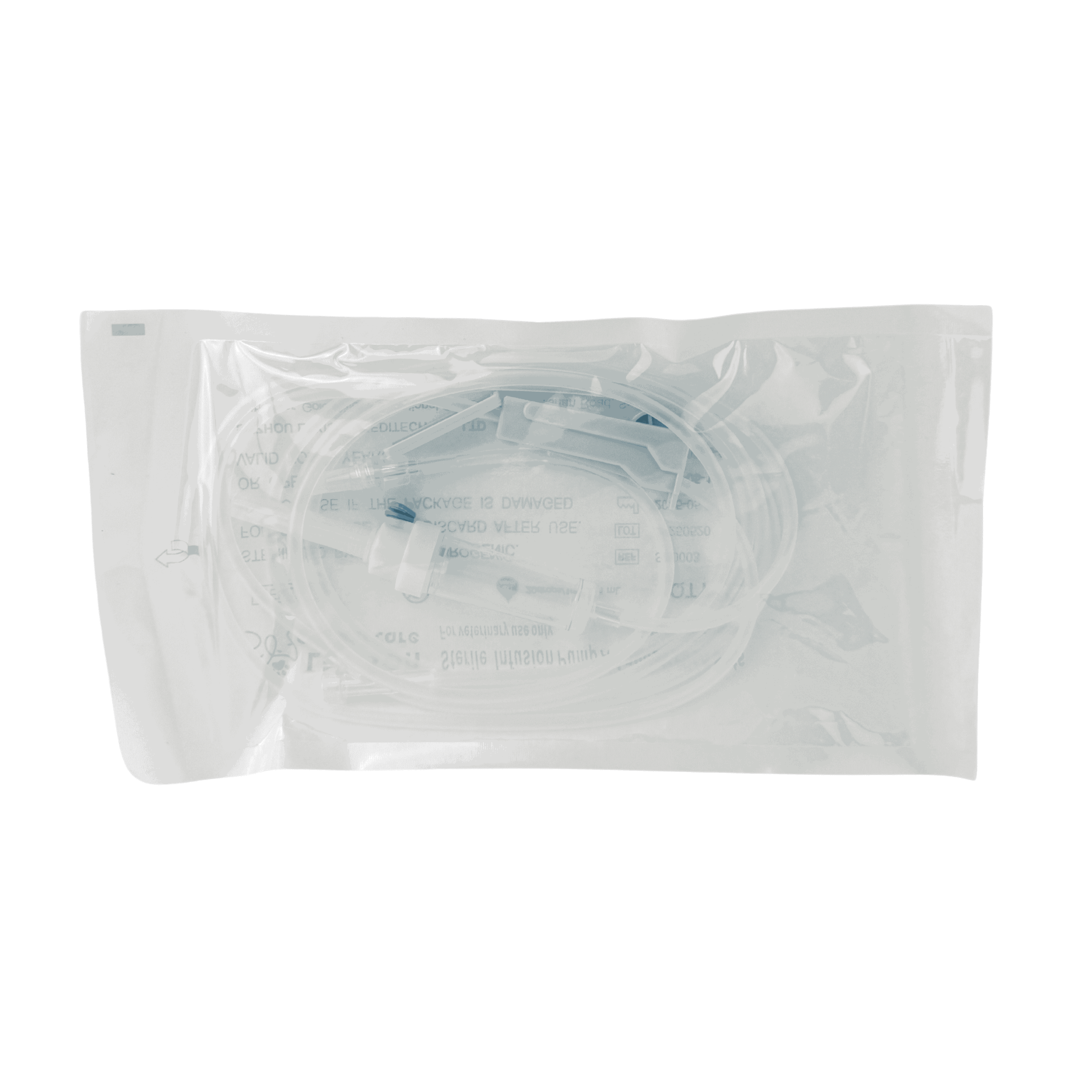

Flow is regulated by a roller clamp, and a Y-injection site allows secondary medication administration without interrupting the primary infusion line. The distal end features a rotating male Luer lock with protective cap, providing secure, leak-resistant connection to the patient’s catheter. The main tubing is constructed from DEHP-free PVC with fluid path components comprising ABS, PA, PC, and isoprene rubber. Non-fluid path components are PE, ABS, and PP. The set is lipid and alcohol resistant, non-pyrogenic, and latex-free. Each unit is individually sealed and sterilized by Ethylene Oxide (ETO) with a shelf life of 5 years from the date of manufacture. Packaged 200 units per box.

When to Replace the SY0003 Administration Set

The SY0003 is rated for single patient use and must not be re-sterilized or reused. Sets should be replaced at a minimum of every 24 hours during continuous infusion therapy and must be replaced immediately if the line becomes kinked, discolored, contaminated, or mechanically compromised. Adherence to proper set change intervals is essential to minimize infection risk and maintain the integrity of the fluid delivery system throughout treatment.

Why Source Veterinary IV Administration Sets from IPR Medical?

IPR Medical specializes in the supply, repair, and stocking of infusion pump parts and compatible disposables for veterinary and clinical use. Our team understands the operational demands of veterinary facilities and works to ensure that compatible consumables like the SY0003 are available when you need them. Whether you are maintaining a single-pump setup or managing a multi-station infusion department, IPR Medical provides knowledgeable support and reliable inventory to keep your operations running smoothly.

IPR Medical buys, sells, repairs, and stocks parts and disposables for veterinary infusion equipment. Contact us at 855-477-8866 or cs@iprmed.com.
