Overview

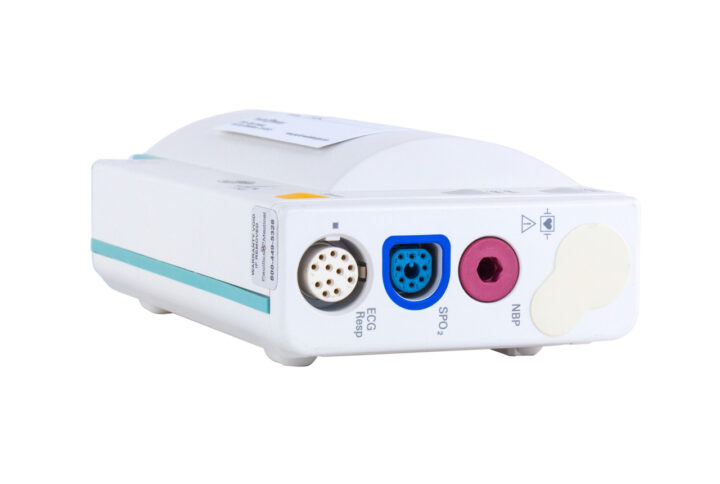

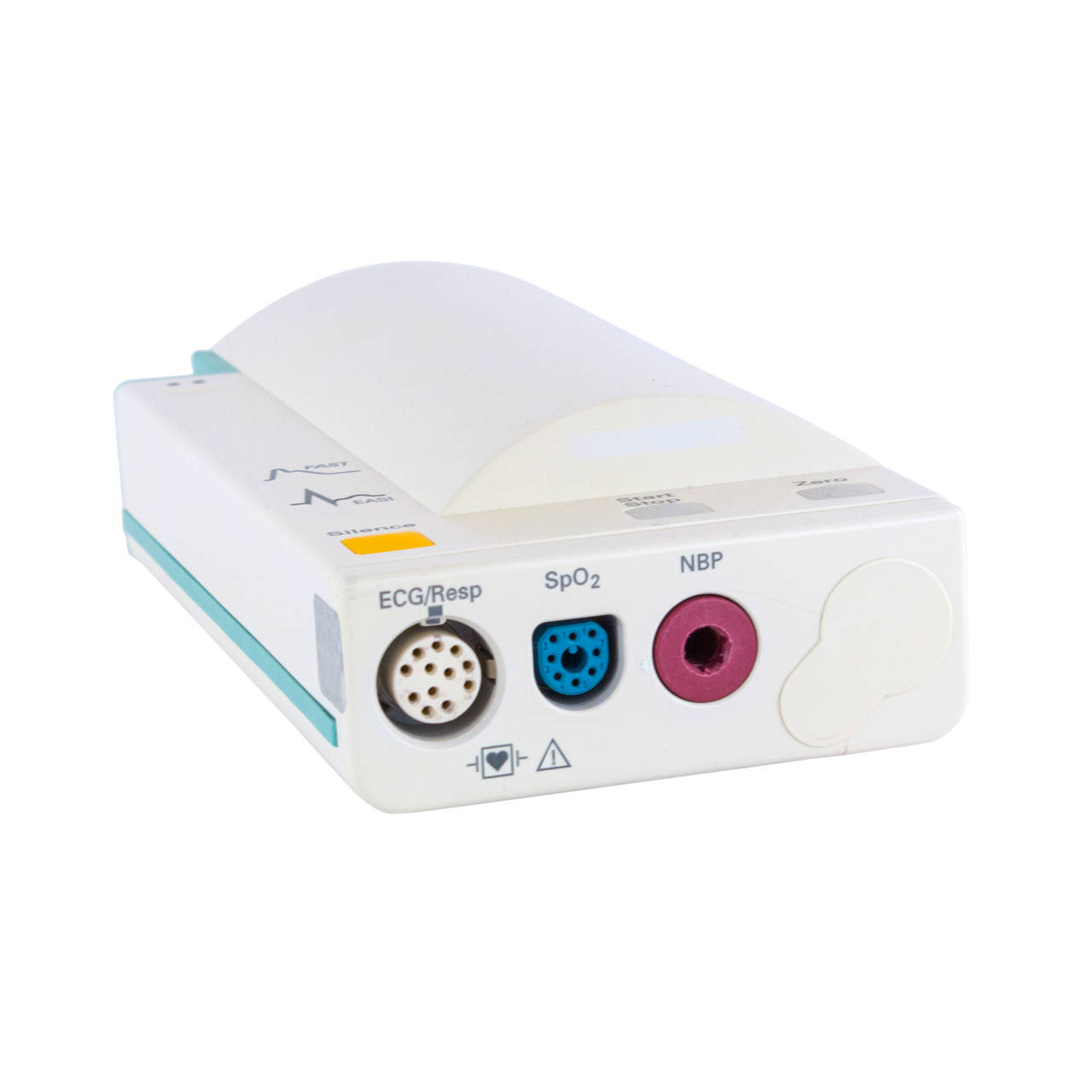

The Philips IntelliVue M3001A Multi-Measurement Module (MMS) is the foundational measurement acquisition component for the IntelliVue bedside patient monitoring platform. Developed by Philips Medizin Systeme Böblingen GmbH and cleared by the FDA as a Class II device, the M3001A is designed to attach directly to the rear of an IntelliVue host monitor — or connect via MSL cable for placement in the patient vicinity — and supply a complete set of core vital signs measurements to the host display and alarm system. The Option A01 configuration is the standard package, providing Philips FAST SpO2 pulse oximetry, ECG with arrhythmia and ST monitoring, impedance respiration, and oscillometric NBP. One of the M3001A’s most clinically important design principles is that all patient demographics, trend data at one-minute resolution for up to eight hours, and active measurement settings are stored inside the module itself rather than on the host monitor. This means the MMS — not the bedside monitor — is the patient record. When a patient is transported to another unit, the M3001A can be disconnected and reconnected to any compatible IntelliVue host, and the full patient record uploads instantly. The device is compatible with the IntelliVue MP20 through MP90 family, the MX-series monitors, and the older M3046A (M/M4 series) with Release E or higher software.

Option A01 — Parameters and Configuration

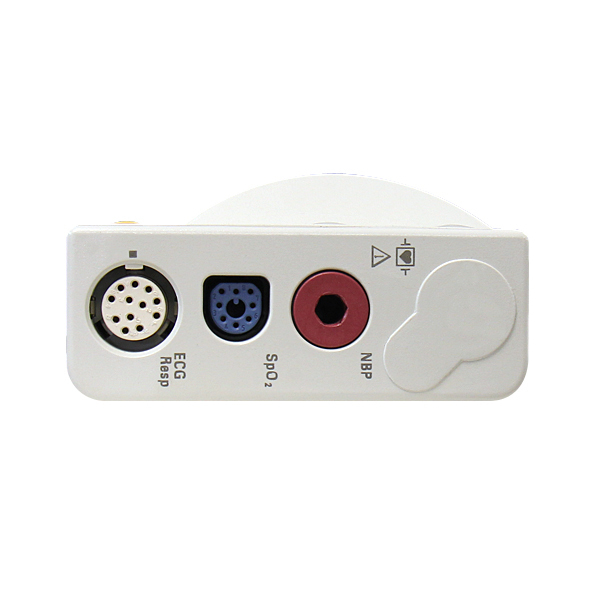

The A01 option designates the M3001A’s SpO2 technology as Philips FAST SpO2 and defines the standard measurement package. In the A01 configuration, the module provides 3-lead and 5-lead ECG monitoring with full arrhythmia analysis and ST segment monitoring, impedance respiration, Philips FAST SpO2 with pleth waveform, pulse rate, and oscillometric non-invasive blood pressure. It is important to note that Option A01 alone does not include invasive pressure, temperature, or 12-lead ECG capability. Buyers requiring invasive pressure and temperature should look at the A01C06 configuration; buyers requiring conventional 12-lead ECG should consider A01C12 or A01C18. While a 10-electrode lead set can be physically connected to Option A01 units, only the standard five electrodes — RA, LA, RL, LL, and V — are active for monitoring in this configuration. The Philips FAST SpO2 technology integrated into the A01 option is compatible with the full line of Nellcor OxiMax sensors, including the MAX-FAST forehead sensor and non-adhesive SoftCare sensors, giving clinicians flexibility in sensor selection for a range of patient populations and care settings. The M3001A A01 option is the most commonly deployed configuration in general acute care and intermediate care environments where invasive hemodynamic monitoring is not routinely required at the bedside.

Clinical Measurements — ECG, Arrhythmia, and ST

ECG acquisition in the M3001A uses the connected ECG trunk cable and leadset to capture and process the cardiac waveform. The standard Option A01 supports 3-lead and 5-lead monitoring configurations. Arrhythmia analysis is performed within the monitoring system and alerts the care team to lethal and non-lethal rhythm abnormalities with configurable alarm limits and classifications. ST segment analysis is also available, providing continuous monitoring of ST elevation or depression across the monitored leads with configurable alarm thresholds and on-screen ST segment visualization on the host display. Respiration is measured using the thoracic impedance method, utilizing the electrodes already in place for ECG — no additional sensors or connections are required. The combination of ECG, arrhythmia, ST, and respiration from a single cable connection makes the M3001A efficient to set up and minimizes the number of patient connections required at admission or during transport reconnection. Alarm processing and display for all ECG-derived parameters are managed entirely by the host IntelliVue monitor once the MMS is connected.

SpO2 and NBP Measurement

The Philips FAST SpO2 technology in the M3001A A01 is designed for reliable performance under challenging signal conditions, including patient movement and low perfusion states. FAST SpO2 provides the SpO2 saturation numeric, pulse rate, and a real-time plethysmogram waveform. The technology is sensor-agnostic within the Nellcor OxiMax platform, meaning facilities that have standardized on OxiMax sensors across their monitoring infrastructure can use those sensors directly with the M3001A A01 without adapter cables. A perfusion numeric and perfusion change indicator provide additional signal quality context for the clinician. Non-invasive blood pressure measurement uses the oscillometric method and is configured via the host IntelliVue monitor. Manual, automatic, and sequence NBP modes are available through the host monitor’s interface, and NBP measurements are generated and stored as part of the vital signs trend record held in the MMS. The NBP pneumatic system requires a calibration performance check once every two years per OEM service documentation; this is the primary preventive maintenance task associated with the M3001A module itself.

Patient Data Portability and Trend Storage

The M3001A’s approach to data storage is a defining architectural feature of the IntelliVue MMS platform. All patient trend data — numeric values at one-minute resolution for up to eight hours across all monitored parameters — is stored within the MMS module itself, not in the host monitor. Patient demographic information, active measurement settings, and calibration data are also resident in the module. When the M3001A is connected to a new IntelliVue host monitor, this stored data uploads automatically, giving the receiving monitor a complete longitudinal view of the patient’s vital signs without any manual re-entry. Critically, the module continues to retain patient identification, trends, and all active parameter settings for up to six hours while it is disconnected from a host monitor — meaning brief transport episodes, departmental handoffs, or temporary monitor swaps do not result in data loss. This architecture directly supports the continuity of care workflows that IntelliVue was designed around, making the M3001A particularly valuable in high-turnover environments such as post-anesthesia care units, step-down units, and emergency departments where patients may pass through multiple monitoring points during a single stay.

MMS Extensions and Configuration Upgrades

The M3001A A01 is the entry-level measurement configuration for the IntelliVue MMS platform, and Philips designed the module to be expandable through both factory-configured option codes and field-attachable MMS extensions. For facilities that require invasive pressure and temperature measurement alongside the standard A01 parameters, the M3001A can be ordered or sourced in the A01C06 configuration, which adds one invasive pressure channel and one temperature channel. The A01C12 option adds conventional 12-lead ECG capability using a 10-electrode lead set, enabling diagnostic-quality ECG capture at the bedside. The A01C18 option combines 12-lead ECG with invasive pressure and temperature. Additionally, MMS extension modules can be physically attached to the M3001A to expand measurement capability without changing the core module. The M3015A Measurement Server Extension adds sidestream CO2 capnography; the M3016A adds mainstream CO2; and the M3012A provides an additional invasive pressure channel, temperature, and CO2 in a single extension unit. These extensions connect directly to the M3001A and inherit its power and network connection via the host monitor, eliminating the need for separate power supplies or MSL cables for the extension alone.

Host Monitor Connectivity and System Integration

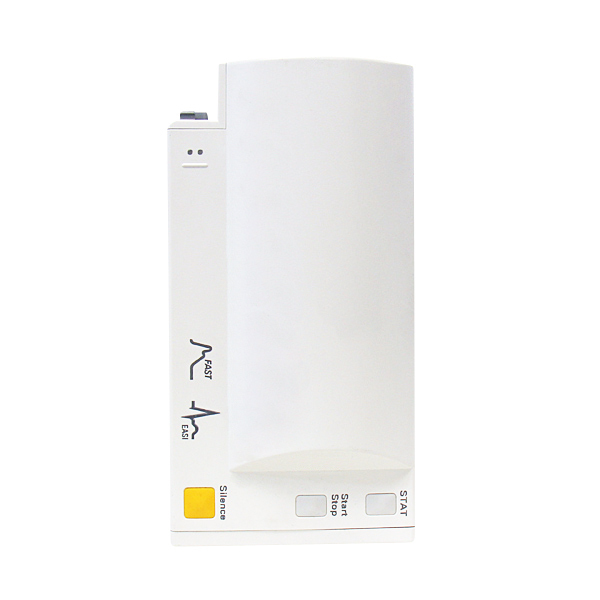

The M3001A connects to compatible IntelliVue host monitors in two physical configurations. In the direct-attach configuration, the module locks onto a docking connector on the rear of the host monitor without any cables, making it immediately available for use when the monitor is set up at the bedside. In the remote configuration, the M3001A connects via the MSL (Measurement Link) cable, allowing it to be positioned in the patient vicinity — for example, at the side rail — while the host monitor display remains at a distance. The MSL connection carries power, data, and network communication. Once connected, the M3001A is managed entirely through the host IntelliVue monitor’s user interface; there is no independent display or controls on the module itself. The M3001A is compatible with the full IntelliVue MP-series platform (MP20 through MP90) as well as the IntelliVue MX-series monitors and the legacy M3046A (M/M4 series) running Release E or higher software. When the host monitor is connected to the IntelliVue clinical network, MMS measurement data flows transparently to the IntelliVue Information Center for central monitoring, trend storage, and reporting alongside all other networked patient data.

IPR Medical — Buy, Sell, Repair, and Parts

IPR Medical operates as a secondary market specialist for Philips IntelliVue patient monitoring equipment, including the M3001A Multi-Measurement Module across all option configurations. For the M3001A A01 specifically, IPR Medical purchases modules in various conditions, sells tested and refurbished units, and provides repair services for component-level issues including NBP pneumatic assemblies, SpO2 circuitry, ECG acquisition hardware, and connectivity interfaces. IPR Medical also stocks commonly requested accessories and cables compatible with the M3001A, including ECG trunk cables and leadsets, Nellcor OxiMax SpO2 sensors, NIBP cuffs and hoses, and MSL cables. Biomed directors, materials managers, and clinical engineering teams looking to maintain or supplement M3001A fleet inventory, source a replacement module for a specific option configuration, or have a faulty module assessed and repaired will find IPR Medical a reliable resource. Contact our team to confirm current availability, discuss your option configuration requirements, or request a service assessment.

IPR Medical buys, sells, repairs, and stocks parts for the Philips IntelliVue M3001A. Contact IPR Medical at 855-477-8866 or cs@iprmed.com with service or software questions.
