Overview

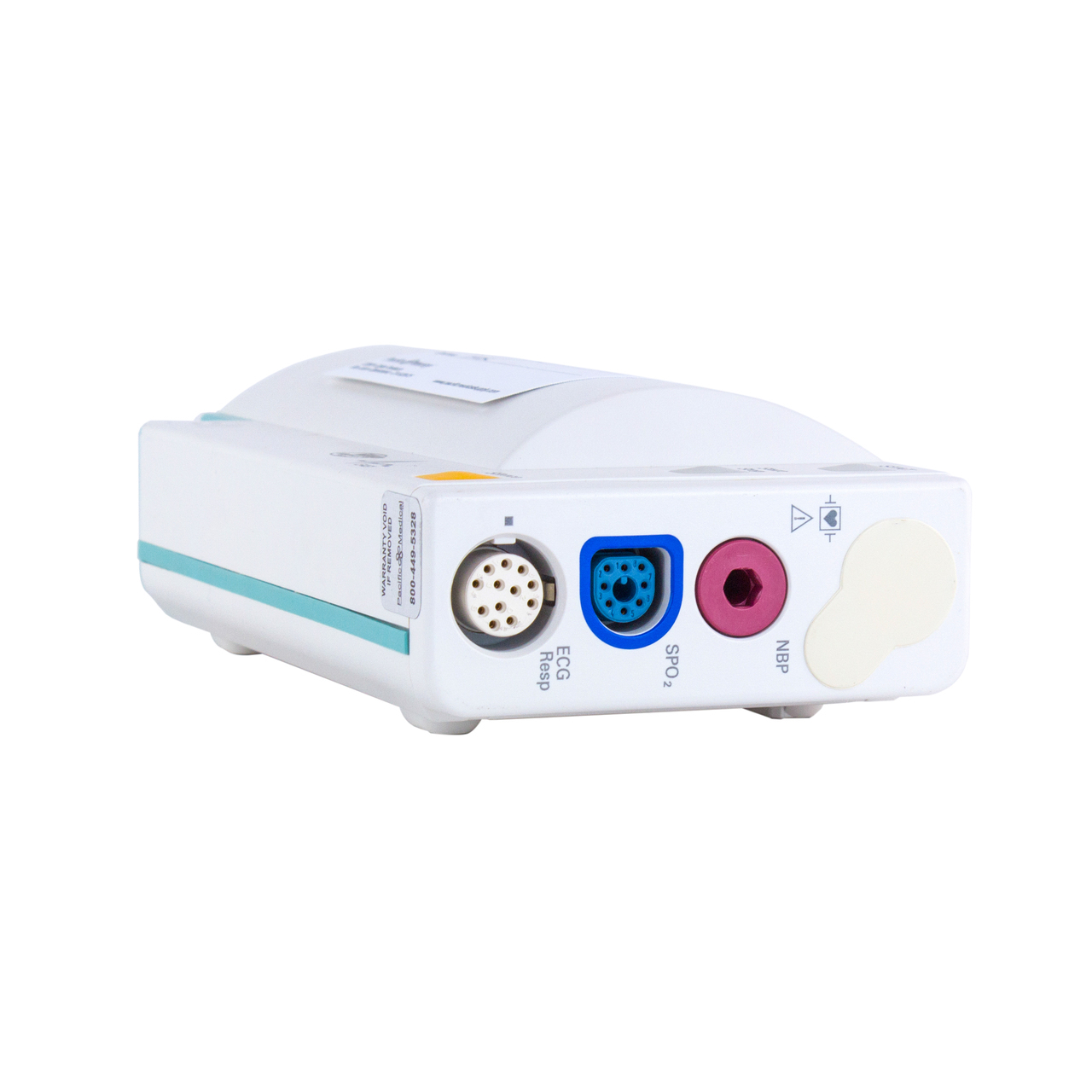

The Philips IntelliVue M3001A (Option A02C12) is the 12-lead ECG configuration of the IntelliVue Multi-Measurement Module for facilities using Nellcor OxiMax sensors. The C12 option adds conventional 12-lead ECG capture and EASI-derived 12-lead ECG to the A02 standard parameter set — ECG, arrhythmia, ST, respiration, Nellcor OxiMax-compatible SpO2, and oscillometric NBP — without adding invasive pressure or temperature. The A02C12 is the direct Nellcor OxiMax equivalent of the A01C12: clinically identical in 12-lead ECG capability and overall parameter set, with the SpO2 interface built around a dedicated OxiMax-compatible circuit rather than the Philips FAST SpO2 technology, and OxiMax sensors connecting through the M1943NL adapter cable. For facilities standardized on Nellcor OxiMax sensors that need documented, diagnostic-quality 12-lead ECG recordings alongside continuous monitoring but do not require hemodynamic line monitoring within the MMS module, the A02C12 is the precise configuration. As with all M3001A variants, patient demographics, up to eight hours of trend data at one-minute resolution, and active measurement settings are stored in the module and travel with the patient between compatible IntelliVue host monitors.

12-Lead ECG — Conventional Capture and EASI

The C12 option provides two distinct paths to 12-lead ECG data within the same module. Conventional 12-lead ECG uses a 10-electrode lead set connected to a compatible 10-lead trunk cable, delivering diagnostic signal quality as defined in the ANSI/AAMI EC11-1991 standard when used with a compatible IntelliVue host monitor — the same quality required for formal clinical ECG interpretation and documentation. Any number of electrodes between 3 and 10 can be used for ongoing ECG monitoring using conventional lead placements, giving clinical teams flexibility to apply fewer electrodes for routine rhythm monitoring and the full 10-electrode set when a documented 12-lead capture is needed. When connected to the IntelliVue Information Center iX, 12-lead ECG captures can be transmitted to and stored in a compatible ECG management system, and previously acquired ECGs can be retrieved at the bedside. EASI ECG provides an alternative path to 12-lead data using only 5 electrodes in the EASI configuration, deriving 12-lead waveforms mathematically from the 5-electrode signal. EASI reduces the number of patient connections, minimizes interference with clinical procedures, and improves patient comfort during extended monitoring — making it particularly useful in transport environments, post-operative recovery, and situations where chest access is limited. Up to 12-lead ST segment analysis with configurable alarm thresholds and QT/QTc interval monitoring further extend the cardiac monitoring capability of the A02C12 beyond basic rhythm surveillance.

Nellcor OxiMax SpO2 in the C12 Configuration

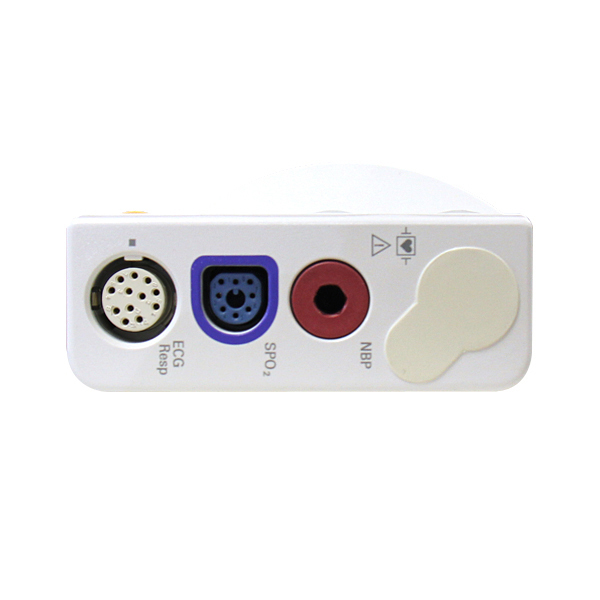

The A02C12 uses the same Nellcor OxiMax-compatible SpO2 interface found in the A02 standard module, providing SpO2 saturation, pulse rate, and a real-time plethysmogram waveform. OxiMax sensors connect to the module’s SpO2 port via the M1943NL adapter cable, which bridges the module’s 8-pin D-Connect to the OxiMax connector standard. The OxiMax platform — maintained by Medtronic — supports a broad catalog of adult, pediatric, and neonatal sensors, each carrying an embedded identification chip that communicates sensor type and calibration data to the monitor. The addition of 12-lead ECG capability through the C12 option does not affect the OxiMax interface, sensor compatibility, or the M1943NL adapter cable requirement in any way. Facilities already running OxiMax sensors on A02 standard modules will find the A02C12 uses identical sensors and the same adapter cable, with 12-lead ECG as an additional capability enabled by the C12 option hardware.

A02C12 vs. A02C06 and A02C18 — Choosing the Right Configuration

The three C-option suffixes in the M3001A family represent distinct additions to the A02 base package. The C06 adds an invasive pressure/temperature channel only, with no 12-lead ECG. The C12 adds 12-lead ECG only, with no invasive pressure or temperature. The C18 combines both. For facilities evaluating which configuration is appropriate for a given care area, the decision follows the same logic regardless of the A-option SpO2 variant: if 12-lead ECG documentation is the requirement and hemodynamic monitoring is handled separately, the A02C12 is the right and most focused choice. For ICU or cardiovascular step-down environments that need both 12-lead ECG and arterial line or temperature monitoring in a single MMS module, the A02C18 is the correct selection. If invasive pressure or temperature capability needs to be added to an existing A02C12 fleet without replacing modules, the M3012A or M3015A MMS extension can provide that channel.

NBP Measurement and Trend Storage

Non-invasive blood pressure measurement uses the oscillometric method with adult, pediatric, and neonatal modes. Manual, automatic, and stat NBP modes are available through the host IntelliVue monitor’s interface, with each result automatically entered into the module’s trend record alongside SpO2, ECG, and respiration values. The module stores up to eight hours of numeric trend data at one-minute resolution within itself rather than on the host monitor. When the A02C12 docks to a new IntelliVue host, this complete record uploads automatically without manual re-entry, and the 12-lead ECG capability is immediately available on the new host without any reconfiguration. The module retains the full patient record for up to six hours while disconnected, supporting clean handoffs between care areas. The NBP pneumatic assembly requires a calibration check once every two years per OEM service documentation.

Adding Pressure and Temperature to A02C12 Fleets

Facilities that have standardized on the A02C12 but occasionally need invasive pressure or temperature monitoring at specific beds can address that need through MMS extension modules without replacing units. The M3012A Measurement Server Extension attaches directly to the M3001A and provides an invasive pressure channel and a temperature channel, adding C06-equivalent hemodynamic capability to any A02C12 module when the extension is connected. The M3015A extension adds sidestream CO2 capnography along with an additional pressure/temperature channel. The M3016A adds mainstream CO2. These extensions inherit power and connectivity from the host monitor through the module without requiring separate power supplies or additional MSL cables, making selective deployment of hemodynamic capability across a standardized A02C12 fleet straightforward for clinical engineering teams.

Host Monitor Connectivity and System Integration

The M3001A A02C12 connects to compatible IntelliVue host monitors in either the direct-dock configuration or the remote configuration via MSL cable. Once connected, all monitoring, alarm, and configuration functions are managed through the host monitor’s interface. The A02C12 is compatible with the full IntelliVue MP-series platform (MP20 through MP90), the MX-series monitors, and the M3046A (M/M4 series) running Release E or higher software. When the host monitor is networked to the IntelliVue Information Center, all measurement data from the A02C12 — including 12-lead ECG captures — flows transparently for central monitoring, trend archiving, ECG storage and retrieval, and clinical reporting.

IPR Medical — Buy, Sell, Repair, and Parts

IPR Medical is a secondary market specialist for Philips IntelliVue patient monitoring equipment, including the M3001A across all option configurations. For the M3001A A02C12, IPR Medical purchases units in various conditions, sells tested and refurbished modules, and provides repair services for component-level issues including the NBP pneumatic assembly, Nellcor OxiMax SpO2 interface circuitry, ECG acquisition hardware, and MSL connectivity. IPR Medical also stocks commonly requested accessories for the A02C12, including 10-lead ECG trunk cables and leadsets for 12-lead capture, 5-lead and 6-lead cables for standard and EASI monitoring, the M1943NL OxiMax adapter cable, Nellcor OxiMax sensors, NIBP cuffs and hoses, and MSL cables. Contact our team to confirm current availability, discuss configuration requirements, or request a service assessment.

IPR Medical buys, sells, repairs, and stocks parts for the Philips IntelliVue M3001A. Contact IPR Medical at 855-477-8866 or cs@iprmed.com with service or software questions.
