Overview

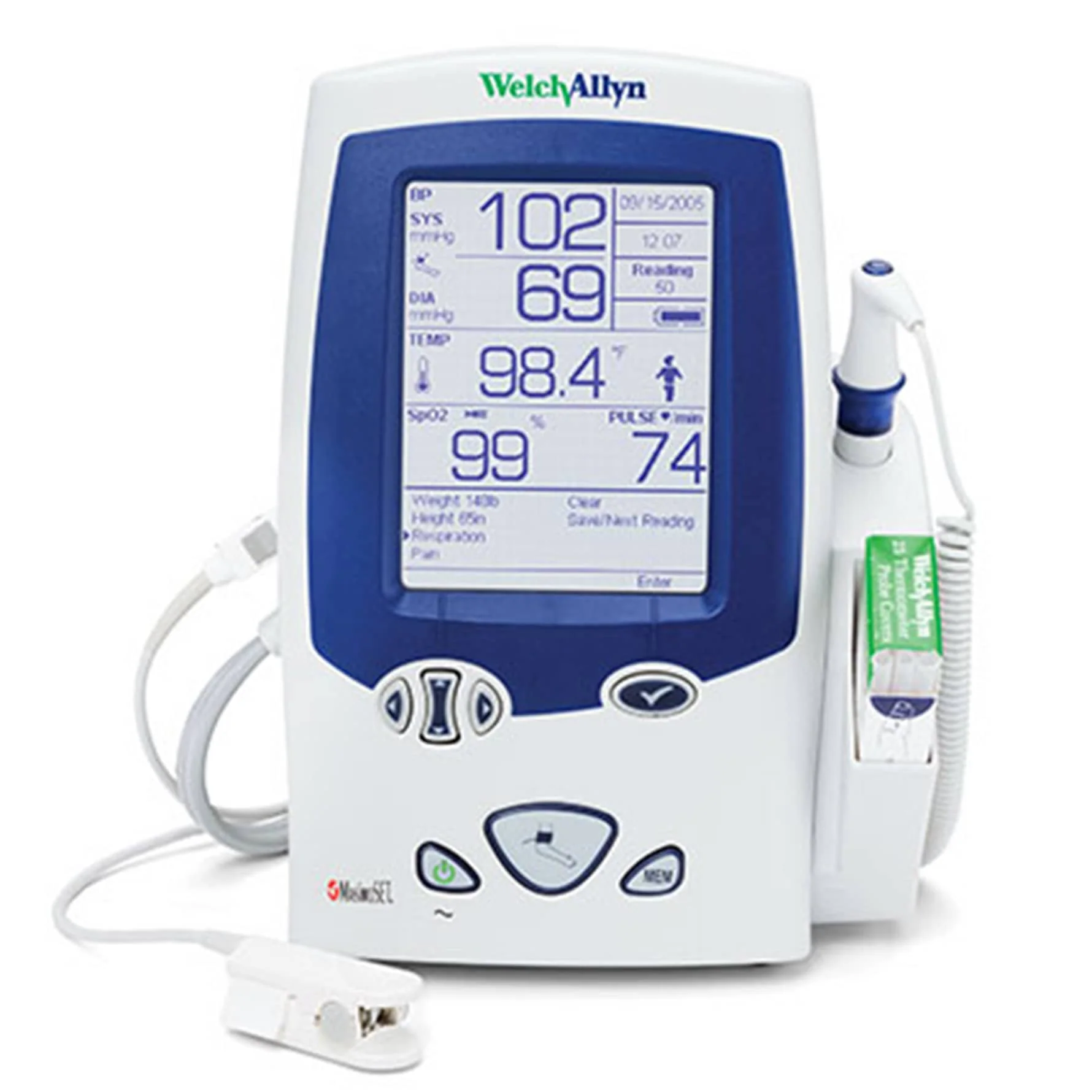

The Welch Allyn Spot Vital Signs LXi is a portable spot-check vital signs monitor introduced by Welch Allyn, now part of Baxter Healthcare Corporation through the Hillrom acquisition. It is designed for clinical workflows where intermittent vitals — rather than continuous monitoring — are the standard of care: physician offices, urgent care, primary care clinics, outpatient surgery centers, long-term care facilities, school nurse offices, and acute admission and triage areas. The LXi consolidates SureBP non-invasive blood pressure with integrated thermometry and optional pulse oximetry into a single device weighing only a few pounds, which lets a clinician obtain a complete vital-signs set without rolling multiple devices into the room. Six factory configurations let facilities pair their preferred thermometry technology (SureTemp Plus contact or Braun ThermoScan PRO 4000 tympanic) with optional Masimo SET or Nellcor OxiMax pulse oximetry, or omit SpO₂ entirely on the 450T0 and 450E0 base models.

Display and User Interface

The Spot Vital Signs LXi uses a backlit LCD with dedicated zones for systolic, diastolic, MAP, pulse rate, temperature, and SpO₂, plus a navigation window that presents menu prompts and patient identification fields. The interface is button-driven rather than touchscreen: a Power button, a BP Start/Stop button, a Memory button, Navigation arrows, and a Select button drive every function. Clinicians familiar with the predecessor Spot Vital Signs Monitor will find the LXi layout immediately recognizable, which shortens training time when facilities mix older and newer Spot units in the same fleet. An Internal Configuration Mode — entered with a dedicated key sequence at power-on — lets biomedical and clinical engineering staff set defaults for save mode, auto-save interval, overwrite behavior, location identifier, weight scale connectivity, printer enablement, and wireless radio activation. These settings persist as the power-up defaults so individual users don’t need to reconfigure the device between shifts.

Clinical Measurements and Module Support

Blood pressure is acquired using Welch Allyn’s SureBP oscillometric technology, which determines systolic, diastolic, MAP, and pulse rate during cuff inflation rather than during deflation. This compresses a typical reading to approximately 15 seconds and reduces patient discomfort because the cuff does not need to inflate past the systolic point and then bleed down slowly. The device meets or exceeds AAMI SP10:2002 accuracy and uses a 315 mmHg overpressure cutoff for safety. Temperature is acquired through one of two options: the SureTemp Plus contact thermometer with interchangeable oral, axillary, and rectal probes (color-coded blue for oral/axillary and red for rectal), or the Braun ThermoScan PRO 4000 tympanic thermometer for rapid ear measurements. Pulse oximetry is optional and ships with either Masimo SET (models 45MT0 and 45ME0) for low-perfusion and motion-tolerant SpO₂ or Nellcor OxiMax (models 45NT0 and 45NE0). Beyond these acquired parameters, clinicians can manually enter weight, height, respiration rate, and pain level, and the LXi automatically calculates Body Mass Index from height and weight inputs. Compatible Health o meter and Tanita digital scales feed weight directly into the display when connected.

Software Versions and Platform Evolution

The Spot Vital Signs LXi tracks firmware revisions independently for the main unit, the NIBP circuit board, the SpO₂ circuit board (Masimo or Nellcor), and the thermometry module. All version numbers are visible from the Internal Configuration Mode under “Version Numbers,” which is the first place a service technician should check when troubleshooting parameter-specific behavior or confirming that an exchanged board has booted with the correct firmware. The LXi sits in the middle of Welch Allyn’s spot-check vital signs lineage. It superseded the original Spot Vital Signs Monitor (the 4200/4400/52000 family, which used a different chassis and pre-FlexiPort cuff connectors) and added the SureBP inflation-based measurement, the larger backlit LCD, and the patient ID and memory-recall workflow. The LXi was itself succeeded in the Welch Allyn portfolio by the Connex Spot Monitor (CSM) and the Connex Vital Signs Monitor (CVSM), which moved to a touchscreen interface, lithium-ion power, native EMR connectivity, and the Connex platform. The LXi remains widely deployed in primary care and outpatient settings where its button-driven interface, sealed-lead-acid power architecture, and lower acquisition cost continue to fit the clinical workflow. When servicing an LXi, biomedical engineers should note that NIBP board replacement requires the initialization procedure documented in the OEM service manual; the SpO₂ board must be replaced with the correct Masimo or Nellcor variant matching the original configuration; and the AC power supply must be the Welch Allyn 4500-101A to maintain patient electrical isolation.

Portability and Power

The Spot Vital Signs LXi runs on AC mains through the Welch Allyn 4500-101A power supply, or on its internal rechargeable battery for transport between patient rooms. The factory-installed battery is a sealed lead-acid pack (6 V, 6.0 Ah, OEM P/N 4500-84) that requires an initial 8-hour charge before first use, plus an additional hour if the device is configured with a Braun ThermoScan PRO 4000. Because the battery is sealed lead-acid rather than lithium-ion, biomedical staff should verify charge state during preventive maintenance and replace the battery on a scheduled cadence rather than waiting for runtime degradation to surface as a clinical complaint. Battery replacement is performed by removing four battery-door screws on the rear of the chassis with the device powered down and the AC adapter disconnected; the OEM service manual emphasizes that the SLA battery connector must be disconnected before any other service procedure. The LXi can be deployed on a Welch Allyn mobile stand with basket, on a wall mount with basket, or as a tabletop unit, and Welch Allyn cautions that mounting installations should be performed by the facility’s biomedical engineering department or qualified maintenance service to ensure structural safety.

Trending, Event Surveillance, and Clinical Decision Support

The Spot Vital Signs LXi stores up to 50 patient readings in non-volatile memory. Each reading captures the full parameter set acquired during the encounter — NIBP, pulse, temperature, SpO₂ (if equipped), and any manually entered weight, height, respiration rate, and pain level — along with the patient ID. Save behavior is configurable: in Manual save mode, the clinician explicitly stores each reading; in Automatic save mode, the LXi saves at a preselected time interval and writes the current reading to memory before the device powers off after 30 minutes of inactivity. Three overwrite behaviors govern what happens when memory is full: Auto Overwrite silently replaces the oldest reading, Ask Overwrite prompts the clinician, and Do Not Overwrite blocks new saves until the buffer is cleared. The Memory button lets staff scroll through stored readings, print individual records to the optional Ap1300 external printer, or erase entries. While 50 readings is modest compared to continuous monitors, it is sized appropriately for a spot-check workflow where readings are typically transferred to the patient chart at the point of care via printout, manual entry, or — on connectivity-ready configurations — wireless transmission to a Welch Allyn Connex server.

Network and EMR Integration

The Spot Vital Signs LXi is described in Welch Allyn documentation as “connectivity-ready,” meaning the device can be configured to transfer readings electronically when paired with the optional Welch Allyn Connex platform and the matching connectivity accessory kit. An optional 802.11b wireless radio is available as a Welch Allyn accessory and is enabled from the Internal Configuration Mode; once enabled, the LXi can send patient readings wirelessly to the Connex server, which in turn routes them to the facility’s EMR through Welch Allyn’s middleware. Wired transfer is also supported through the RS-232 serial port and the connectivity accessory kit USB cable. The USB port on the LXi itself is documented in the OEM operator manual as service-only and should not be used for routine data transfer. For facilities operating a fleet of LXi monitors, biomedical engineering should confirm radio firmware revision and wireless security settings during preventive maintenance, since the 802.11b radio in the LXi predates more recent enterprise wireless security standards and may require segmentation onto a dedicated medical-device VLAN to comply with current IT policy.

IPR Medical — Buy, Sell, Repair, and Parts

IPR Medical buys, sells, repairs, and stocks parts for the Welch Allyn Spot Vital Signs LXi across all six factory configurations (450T0, 450E0, 45MT0, 45ME0, 45NT0, 45NE0). We support biomedical and clinical engineering teams with replacement batteries, FlexiPort cuffs, SureTemp Plus probes and probe wells, Braun ThermoScan PRO 4000 modules, Masimo and Nellcor SpO₂ sensors, AC power supplies, mobile stands, wall mounts, and field-replaceable circuit boards. Whether you are decommissioning an LXi fleet, sourcing a refurbished unit to expand point-of-care vitals capacity, or troubleshooting a specific parameter board, our team can confirm OEM part numbers, configuration compatibility, and current availability. Please contact IPR Medical for refurbishment, calibration, NIBP verification, and end-of-life buyback options.
